Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74003013 Panel, Upper Front (blk) 17 Appelez-nous -
1 74001537 Panel, Upper Front (blk) 10 Appelez-nous -
2 WP7403P239-60 Switch, Infinite (lrg Element)   (Replaces: 7403P239-60) 10 In-Stock Immediately $ 35.10

2 WP7101P309-60 Screw   (Replaces: 7101P309-60) 10 In-Stock Immediately $ 6.26

2 WP7403P238-60 Switch, Infinite (sml Element)   (Replaces: 7403P238-60) 10 In-Stock Immediately $ 57.78

3 W10852510 Light, Indicator   (Replaces: 7407P102-60) 10 Special Order $ 106.11

4 W11690131 Lens, Indicator Light   (Replaces: 7730P012-60) 10 Special Order $ 6.73

5 7403P067-60 Switch, Rocker (blk) 10 Special Order $ 91.35

6 W10124350 Not Required Part Or See Note Not Required 14 Appelez-nous -
6 74002271 Clock (blk) 14 Appelez-nous -
6 7601P278-60 Clock (blk) 10 Appelez-nous -
6 WP7711P492-60 Knob, Clock (blk)   (Replaces: 7711P492-60) 10 Special Order $ 12.13

7 74002978 Bracket, Indicator Light 18 Appelez-nous -
7 W10124350 Not Required Part Or See Note 22 Appelez-nous -
7 3801F312-45 Bracket, Indicator Light 10 Appelez-nous -
8 7731P082-60 Knob, Therm/burner (blk) 10 Appelez-nous -
9 7740P020-60 Bezel, Knob (blk) 10 Appelez-nous -
10 3801F349-51 Bracket, Clock 10 Appelez-nous -
11 7112P102-60 Clip, Speed 10 Appelez-nous -
11 7112P087-60 Clip, Top Locking 10 Appelez-nous -
12 7407P098-60 Light, Indicator 10 Appelez-nous -
12 74003043 Light, Surface Indicator 22 Appelez-nous -
13 74001053 Top Assy. (alm Top/blk Glass) 18 Appelez-nous -
13 5706M104-84 Top, Main (alm W/blk Glass) 10 Appelez-nous -
14 W10823704 Element W/receptacle (6``)   (Replaces: 7406P074-60) 10 In-Stock Immediately $ 309.01

14 W10823704 Element W/limiter (6``)   (Replaces: 74002653) 16 In-Stock Immediately $ 309.01

14 W10823704 Element W/limiter (6``)   (Replaces: 74001011) 12 In-Stock Immediately $ 309.01

14 12500041 Limiter Kit (6``) 10 Appelez-nous -
14 W10823704 Limiter (6``)   (Replaces: 74002651) 16 In-Stock Immediately $ 309.01

15 74002652 Limiter (8``) 16 Appelez-nous -
15 W10823707 Element W/receptacle (8``)   (Replaces: 7406P073-60) 10 In-Stock Immediately $ 316.13

15 W10823707 Element W/limiter (8``)   (Replaces: 74001012) 12 In-Stock Immediately $ 316.13

15 W10823707 Element W/limiter (8``)   (Replaces: 74002649) 16 In-Stock Immediately $ 316.13

15 12500040 Limiter Kit (8``) 10 Appelez-nous -
16 W10124350 Not Required Part Or See Note 18 Appelez-nous -
16 3807F390-45 Support, Element 10 Appelez-nous -
17 8004P015-60 Support, Element 10 Appelez-nous -
17 74002976 Support, Element 18 Appelez-nous -
18 WP59002061 Screw (6abx38-zn)   (Replaces: 7101P077-60) 10 Special Order $ 6.98

19 5170P228-60 Harness, Sensor & Lock 10 Appelez-nous -
19 5195D122-60 Harness, Panel 10 Appelez-nous -
19 74001583 Harness, Clock/relay 10 Appelez-nous -
19 5175D076-60 Harness, Cooktop To Switch 10 Appelez-nous -
20 16007454 Manual, Use & Care 14 Appelez-nous -
21 16000329 Guide, Quick Ref. - Magic Chef 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

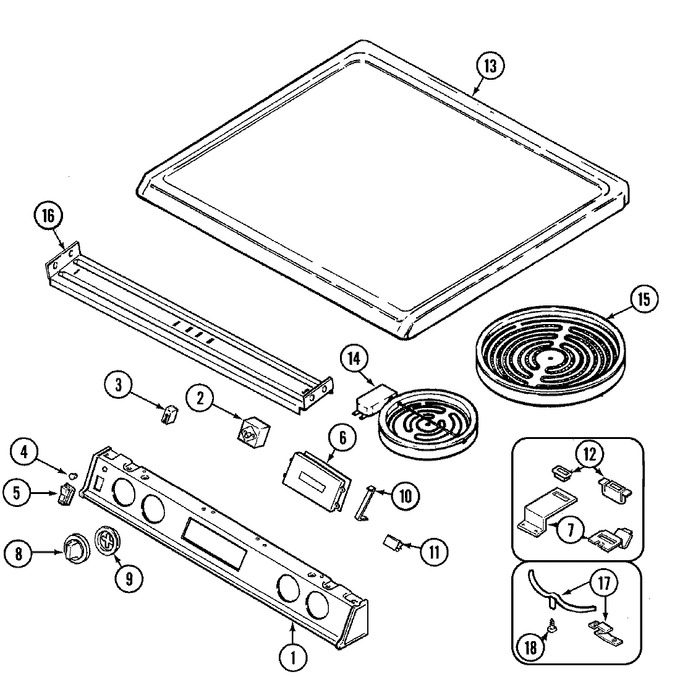

Diagram for 7858XVA
