SELECT A DIAGRAM

01 - Top And Cabinet, Lit/optional

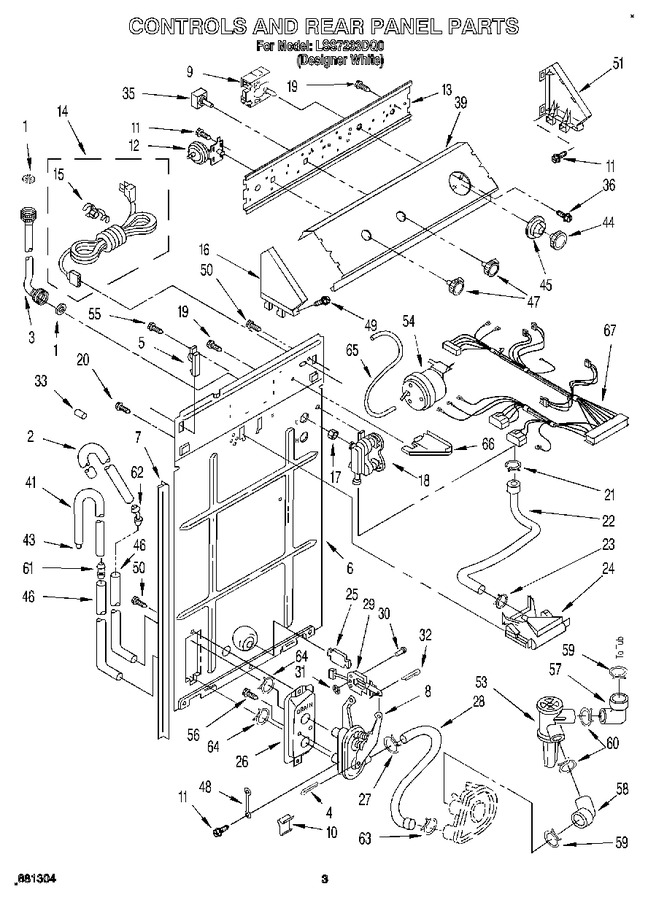

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake And Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	WP96743		Hose   (Replaces: 96743)				$ 90.93
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3354858)			Immediately	$ 21.68
4	90222		Pin		Appelez-nous	-
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	359985		Valve, 2-way (diaphragm No.358317)		Appelez-nous	-
9	3946473		Timer, Control (60 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	96262		Clip, Retainer		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	WP3356467		Switch, Water Level   (Replaces: 3356467)				$ 153.17
13	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 104.57
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3358528		Cap, End (l.h.)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 3360392)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	WP681414		Screw, Ground (10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	3351456		Connector, Drain Hose		Appelez-nous	-
27	WP285655		Clamp, Hose   (Replaces: 370446)			Immediately	$ 7.55
28	3351457		Hose, Pump To Drain Connector		Appelez-nous	-
29	3351455		Solenoid, Suds Valve		Appelez-nous	-
30	359089		Rivet		Appelez-nous	-
31	WP90296		Clip   (Replaces: 90296)				$ 7.07
32	90228		Pin		Appelez-nous	-
33	W10491983		Cap   (Replaces: 359702)		Appelez-nous	-
35	WPW10168256		Switch, Water Temperature   (Replaces: 3363323)			Immediately	$ 115.93
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3948248		Panel, Console		Appelez-nous	-
41	388798		Hose, Drain		Appelez-nous	-
43	352833		Strainer		Appelez-nous	-
44	WP3364293		Knob, Timer   (Replaces: 3364291)			Immediately	$ 53.51
45	3946261		Dial, Timer		Appelez-nous	-
46	96746		Hose				$ 71.22
47	WP3957796		Knob, Control   (Replaces: 3358435)			Immediately	$ 49.35
48	358343		Strap		Appelez-nous	-
49	WP388326		Screw (2) (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358513		Cap, End (r.h.)		Appelez-nous	-
53	3351447		Protector, Valve		Appelez-nous	-
54	3352288		Switch, Suds Level		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
56	3352299		Screw (2)		Appelez-nous	-
57	3351453		Connector, To Tub		Appelez-nous	-
58	3351452		Connector, To Pump		Appelez-nous	-
59	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
60	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
61	WP16272		Connector   (Replaces: 16272)				$ 7.04
62	95440		Connector				$ 22.55
63	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
64	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
65	WP353244		Hose, Suds Level   (Replaces: 3347781)			Immediately	$ 53.94
66	3348424		Sheild, Suds		Appelez-nous	-
67	3359868		Harness, Wiring (for Detail See Wiring Harness Part Page.) Also See Clips.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
