SELECT A DIAGRAM

01 - Top And Cabinet

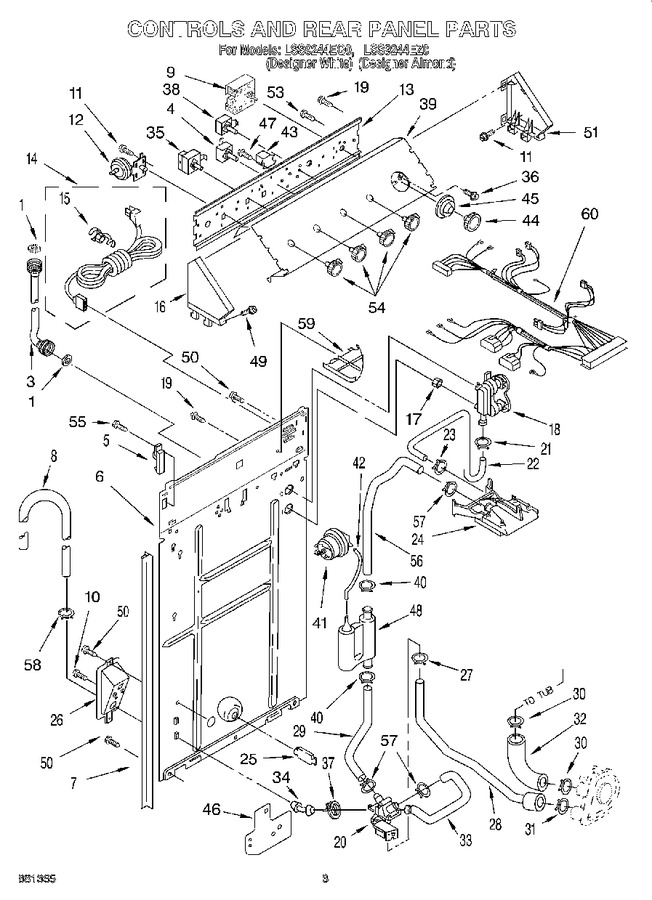

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Water System


08 - Brake And Drive Tube


09 - Gearcase


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3354858)			Immediately	$ 21.68
4	3949186		Switch, Rotary		Appelez-nous	-
5	387402		Hinge, Console (2)				$ 5.84
6	3948940		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	WP96743		Hose, Rubber Drain   (Replaces: 96743)				$ 90.93
9	3949231		Timer, Control (60 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	3352299		Screw		Appelez-nous	-
11	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
12	3356466		Switch, Water Level				$ 78.59
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3358529		Cap, End (l.h.) (for Designer Almond Model)		Appelez-nous	-
16	3358528		Cap, End (l.h.) (for Designer White Model)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 3360391)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	3358559		Valve, Two-way				$ 122.77
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	3358551		Break, Vacuum				$ 32.74
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	3358567		Bracket, Valve Mounting		Appelez-nous	-
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3358562		Hose, Pump To Two-way Valve				$ 29.47
29	3358563		Hose/two-way Valve To Air Dome				$ 9.74
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	3358564		Hose-two Way Valve/ To Drain				$ 10.22
34	95440		Connector, Hose				$ 22.55
35	3949184		Switch, Rotary (temp. Switch)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
37	WP285655		Clamp, Hose   (Replaces: 660626)			Immediately	$ 7.55
38	661611		Switch, Rotary		Appelez-nous	-
39	3948280		Panel, Console (for Designer White Model)		Appelez-nous	-
39	3948281		Panel, Console (for Designer Almond Model)		Appelez-nous	-
40	3363365		Clamp, Hose				$ 9.68
41	3358570		Switch, Pressure				$ 52.87
42	WP353244		Hose, Pressure Switch   (Replaces: 3347781)			Immediately	$ 53.94
43	697811		Cancel, Relay		Appelez-nous	-
44	WP3364293		Knob, Timer (for Designer White Model)   (Replaces: 3364291)			Immediately	$ 53.51
44	WP3364293		Knob, Timer (for Designer Almond Model)   (Replaces: 3364293)			Immediately	$ 53.51
45	280193		Dial, Timer (for Designer Almond Model)   (Replaces: 3946262)				$ 51.36
45	3946261		Dial, Timer (for Designer White Model)		Appelez-nous	-
46	3948552		Shield, Valve				$ 7.81
47	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 6.26
48	3948812		Air Dome		Appelez-nous	-
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358514		Cap , End (r.h.) (for Designer Almond Model)		Appelez-nous	-
51	3358513		Cap, End (r.h.) (for Designer White Model)		Appelez-nous	-
53	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
54	WP3957796		Knob/controls (for White Model)   (Replaces: 3358435)			Immediately	$ 49.35
54	3950760		Knob/controls (for Almond Model)   (Replaces: 3358436)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
56	3358555		Hose, Air-dome To Vaccum Break		Appelez-nous	-
57	3363365		Clamp, Hose   (Replaces: 3358557)				$ 9.68
58	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
59	3348424		Shield, Suds		Appelez-nous	-
60	3949342		Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
