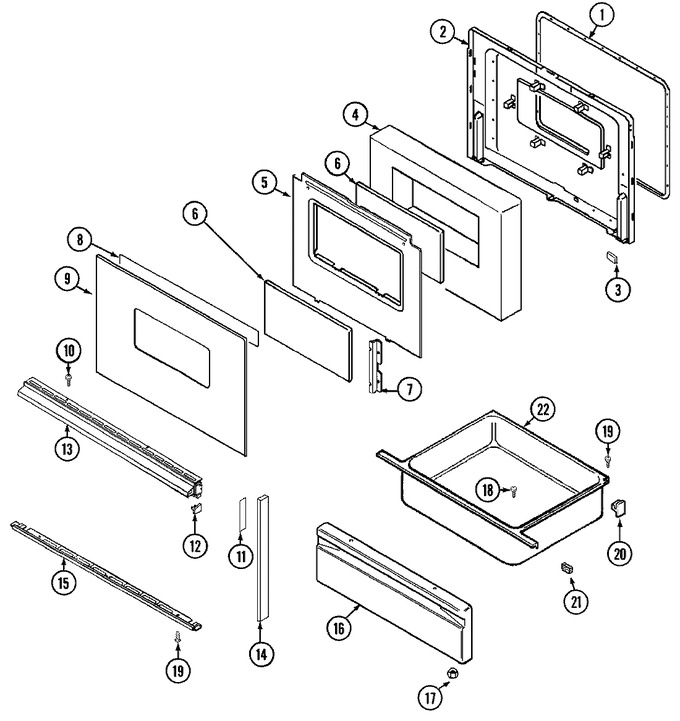

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	11		Immediately	$ 77.61
2	2402W209-19		Lining, Door	11	Appelez-nous	-
2	74003244		Lining, Door	25	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	11	Appelez-nous	-
4	74001842		Insulation, Door	11	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
5	74001843		Baffle, Door	11	Appelez-nous	-
6	74001841		Glass, Inner	11	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
7	74001844		Retainer, Glass	11	Appelez-nous	-
8	8270P078-60		Tape, Foil (29 1/2``)	11	Appelez-nous	-
9	74003431		Glass, Door (outer-blk)	27	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	11	Appelez-nous	-
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	11			$ 15.94
11	8270P093-60		Tape, End Cap	11	Appelez-nous	-
12	74002539		End Cap, Handle (rt-blk)	17	Appelez-nous	-
12	7744P075-60		End Cap (rt)	11	Appelez-nous	-
12	7744P076-60		End Cap (lt)	11	Appelez-nous	-
12	74002540		End Cap, Handle (lt-blk)	17	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
13	7701P144-60		Handle, Door (blk)	22	Appelez-nous	-
13	74003429		Handle, Door (blk)	27			$ 93.87
13	7701P103-60		Handle, Door (blk)	11	Appelez-nous	-
14	7744P055-60		End Cap, Oven Door (blk)	11	Appelez-nous	-
14	74003430		End Cap, Door (blk)	27			$ 59.35
14	74002084		End Cap, Door (blk)	17	Appelez-nous	-
15	7744P105-60		Trim, Bottom (blk)----na	11	Appelez-nous	-
15	74003432		Trim, Bottom (blk)	27	Appelez-nous	-
16	2416F038-62		Panel, Drawer (wht)	11	Appelez-nous	-
16	74003407		Panel, Drawer (wht)	26	Appelez-nous	-
17	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	11			$ 4.00
18	WP7101P072-60		Screw   (Replaces: 7101P072-60)	11			$ 6.77
19	W10124350		Not Required Part Or See Note	26	Appelez-nous	-
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
20	8004P026-60		Support, Drawer (rear)	11			$ 9.29
20	74003566		Roller, Drawer	26	Appelez-nous	-
20	WP488130		Nut   (Replaces: 7103P082-60)	26			$ 6.27
21	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	11			$ 11.95
22	71003042		Drawer, Storage	26	Appelez-nous	-
22	3405F018-80		Drawer, Storage	11	Appelez-nous	-
