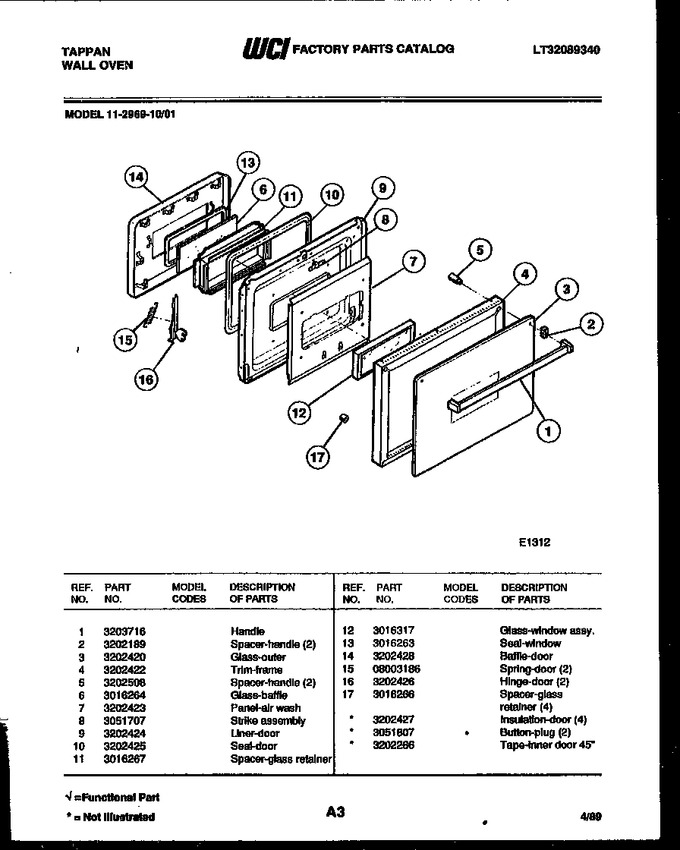

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Door Parts
04 - Body Parts
05 - Body Parts
06 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle |
|
- | |||||
| 2 | 3202189 | Spacer-handle (2) |
|
- | |||||
| 3 | 3202420 | Glass-outer |
|
- | |||||
| 4 | 3202422 | Trim-frame |
|
- | |||||
| 5 | 3202508 | Spacer - Handle (2) |
|
- | |||||
| 6 | 3016264 | Glass-baffle |
|
- | |||||
| 7 | 3202423 | Panel-air Wash |
|
- | |||||
| 8 | 3051707 | Strike Assembly |
|
- | |||||
| 9 | 3202424 | Liner-door |
|
- | |||||
| 10 | 3202425 | Seal-door |
|
- | |||||
| 11 | 3016267 | Spacer-glass Retainer |
|
- | |||||
| 12 | 3016317 | Glass - Window Assy |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 3202428 | Baffle-door |
|
- | |||||
| 15 | 08003186 | Spring-door (2) |
|
- | |||||
| 16 | 3202426 | Hinge - Door (2) |
|
- | |||||
| 17 | 3016266 | Spacer - Glass Retainer (4) |
|
- | |||||
| *22878 | 3051807 | Button, Plug (2) |
|
- | |||||
| *22878 | 3202427 | Insulation-door (4) |
|
- | |||||
| *22879 | 3202266 | Tape - Inner Door 45`` |
|
- |
