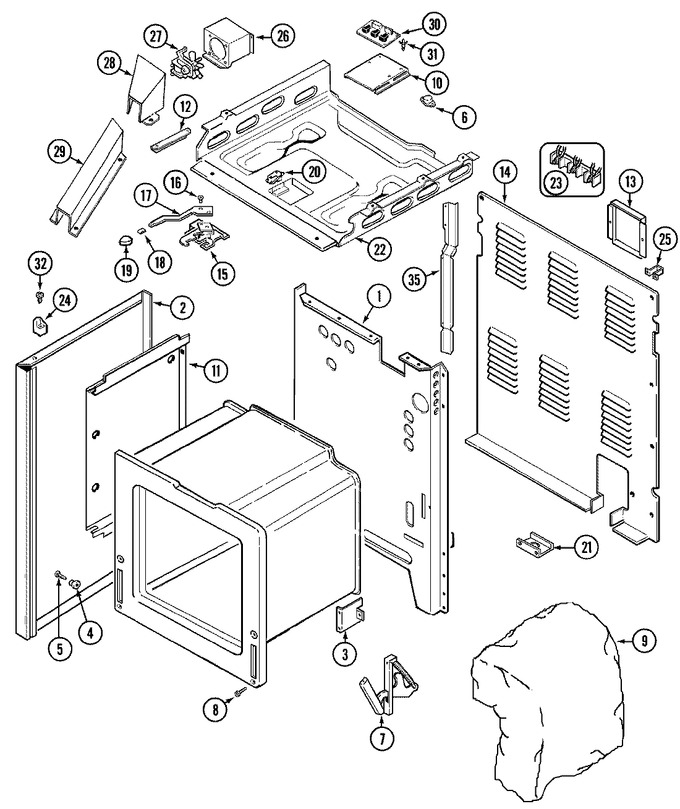

7898VAV | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
1	7101P337-60	Screw	10	Appelez-nous	-
1	74001873	Back, Main	10	Appelez-nous	-
2	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
2	2618F112-71	Panel, Side (rt-wht)	10	Appelez-nous	-
2	2618F111-71	Panel, Side (lt-wht)	10	Appelez-nous	-
3	3807F400-51	Support,oven Rear	10	Appelez-nous	-
3	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
4	W10857933	Spacer, Side Panel (Replaces: 8004P024-60)	10			$ 7.07
5	WPW10348409	Screw (8abx13/16-zn) (Replaces: 74001449)	10		Immediately	$ 6.98
6	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
6	7403P307-60	Thermostat, Snap Acting	10	Appelez-nous	-
7	WP74011140	Hinge, Door (Replaces: 74003243)	18		Immediately	$ 120.21
7	7106P056-60	Hinge	10	Appelez-nous	-
8	WP4159193	Screw (10-24x5/16-ni) (Replaces: 7101P282-60)	10			$ 4.29
9	4804F036-60	Insulation, Wrap	10	Appelez-nous	-
9	4804F030-60	Insulation, Back & Bottom	10	Appelez-nous	-
10	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
10	4005F466-51	Cover, Door Lock	10	Appelez-nous	-
11	3804F103-51	Retainer, Insulation (side)	10	Appelez-nous	-
12	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
12	3801F327-51	Bracket	10	Appelez-nous	-
13	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
13	4005F427-51	Cover, Access	10	Appelez-nous	-
14	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
14	4005F422-51	Cover, Wire	10	Appelez-nous	-
15	8002P025-60	Latch Assy.	10	Appelez-nous	-
15	7101P280-60	Screw W/washer (blk)	10	Appelez-nous	-
15	74003032	Latch Assy.	15	Appelez-nous	-
15	W10828565	Screw, Black (Replaces: 7101P270-60)	15			$ 6.70
16	WP4159193	Screw, Lever (Replaces: 7101P230-60)	10			$ 4.29
17	74002974	Lever, Latch (gry)	13			$ 45.72
17	8009P029-60	Lever, Latch Assy.	10	Appelez-nous	-
18	W10124350	Not Required Part Or See Note	13	Appelez-nous	-
18	7112P112-60	Clip, Latch Lever	10			$ 4.83
18	W10124350	Not Required Part Or See Note	15	Appelez-nous	-
19	W10124350	Not Required Part Or See Note	15	Appelez-nous	-
19	7701P153-60	Handle, Door Latch (wht)	10	Appelez-nous	-
19	W10124350	Not Required Part Or See Note	13	Appelez-nous	-
20	7101P130-60	Screw, Latch Switch	10	Appelez-nous	-
20	74001708	Switch, Door Latch	10	Appelez-nous	-
21	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
21	3605F174-51	Plate, Conduit Tubing	10	Appelez-nous	-
22	74001821	Box, Burner	10	Appelez-nous	-
22	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
23	WPW10245259	Block, Terminal (Replaces: 7401P039-60)	10		Immediately	$ 31.65
24	8010P087-60	Spacer, Main Top (lt)	10	Appelez-nous	-
24	8010P088-60	Spacer, Main Top (rt)	10	Appelez-nous	-
25	W11233072	Screw (Replaces: 7101P147-60)	10		Immediately	$ 12.62
25	7112P097-60	Clip, Spacer	10	Appelez-nous	-
26	4001F098-51	Housing, Fan	10	Appelez-nous	-
27	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
27	7427P012-60	Fan	10	Appelez-nous	-
28	3818F056-51	Duct, Air	10	Appelez-nous	-
29	3818F054-51	Channel, Bottom	10	Appelez-nous	-
29	3818F053-51	Channel, Air Top	10	Appelez-nous	-
30	7428P021-60	Board, Relay	10	Appelez-nous	-
31	8004P020-60	Support, Relay Board	10	Appelez-nous	-
31	8004P032-60	Support, Relay	10	Appelez-nous	-
31	74001813	Support, Relay	10	Appelez-nous	-
32	WP74004005	Screw (Replaces: 7118P013-60)	10			$ 6.95
33	7407P098-60	Light, Indicator	10	Appelez-nous	-
34	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
34	3801F312-45	Bracket, Indicator Light	10	Appelez-nous	-
35	W11233072	Screw (8ab1/2-ni) (Replaces: 74001530)	10		Immediately	$ 12.62
35	3818F059-51	Channel, Air	10	Appelez-nous	-
