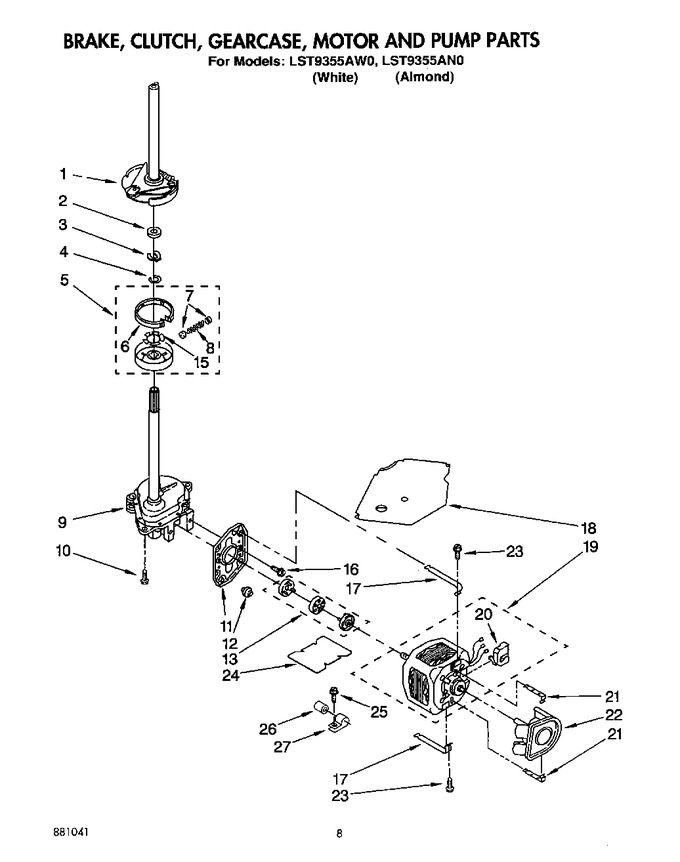

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Drive Tube (complete) (refer To Page For Further Breakdown) (Replaces: 388952) |
|
Immediately | $ 195.58 | ||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 6.94 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: 62697) |
|
$ 10.82 | |||||
| 4 | 285353 | Ring, Retainer (Replaces: 63283) |
|
$ 7.30 | |||||
| 5 | 285785 | Clutch (complete) (Replaces: 3350115) |
|
Immediately | $ 61.22 | ||||
| 6 | 285790 | Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 388190) |
|
Immediately | $ 38.92 | ||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 6.80 | |||||
| 8 | 285790 | Spring, Clutch (Replaces: 3354731) |
|
Immediately | $ 38.92 | ||||
| 9 | 3360629 | Gearcase (complete) (refer To Page For Further Breakdown) (Replaces: 3360630) |
|
Immediately | $ 422.22 | ||||
| 10 | 62735 | Screw, Gearcase To Base (3) (5/16-24 X 3/4) |
|
- | |||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 105.39 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 10.64 | |||||
| 13 | 285753A | Coupling, Motor & Isolation (Replaces: 661560) |
|
Immediately | $ 23.31 | ||||
| 15 | WP3355454 | Clip, Anti-rattle (Replaces: 3355454) |
|
$ 7.06 | |||||
| 16 | WP3400516 | Screw, 5/16-24 X 5/8 (2) (Replaces: 98062) |
|
Immediately | $ 6.47 | ||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 3349637) |
|
$ 7.15 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 3349282) |
|
$ 33.69 | |||||
| 19 | WP3352287 | Motor, Main Drive (Replaces: 3352287) |
|
Immediately | $ 332.49 | ||||
| 20 | 62850 | Switch, Main Drive Motor |
|
- | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 62700) |
|
$ 7.33 | |||||
| 22 | WP3363394 | Pump (complete) (Replaces: 3352492) |
|
Immediately | $ 55.49 | ||||
| 23 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 3387485) |
|
Immediately | $ 7.04 | ||||
| 24 | WP3946532 | Shield, Motor (Replaces: 3351341) |
|
$ 28.15 | |||||
| 25 | WP3390631 | Screw,10-16x5/16 (Replaces: 9420601) |
|
$ 7.04 | |||||
| 26 | WP8572720 | Capacitor (Replaces: 3348058) |
|
$ 115.03 | |||||
| 27 | 357030 | Clamp, Capacitor |
|
$ 18.98 |
