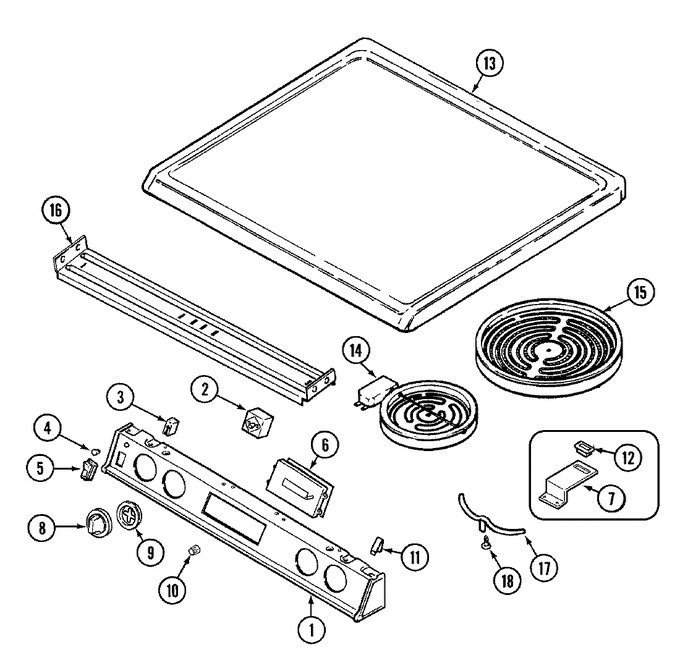

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001537 | Panel, Upper Front (blk) | 10 |
|
- | ||||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 6 | 7601P278-60 | Clock (blk) | 10 |
|
- | ||||
| 6 | 3801F349-51 | Bracket, Clock | 10 |
|
- | ||||
| 7 | 3801F312-45 | Bracket, Indicator Light | 10 |
|
- | ||||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 9 | 7740P020-60 | Bezel, Knob (blk) | 10 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 10 |
|
$ 12.13 | ||||
| 11 | 7112P102-60 | Clip, Speed | 10 |
|
- | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 12 | 7407P098-60 | Light, Indicator | 10 |
|
- | ||||
| 13 | 5706M104-84 | Top, Main (alm W/blk Glass) | 10 |
|
- | ||||
| 14 | 12500041 | Limiter Kit (6``) | 10 |
|
- | ||||
| 14 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 12 |
|
Immediately | $ 309.01 | |||
| 14 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 15 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 15 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 12 |
|
Immediately | $ 316.13 | |||
| 15 | 12500040 | Limiter Kit (8``) | 10 |
|
- | ||||
| 16 | 3807F390-45 | Support, Element | 10 |
|
- | ||||
| 17 | 8004P015-60 | Support, Element | 10 |
|
- | ||||
| 18 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 19 | 5175D076-60 | Harness, Cooktop To Switch | 10 |
|
- | ||||
| 19 | 74001583 | Harness, Clock/relay | 10 |
|
- | ||||
| 19 | 74001656 | Harness, Wire Front Panel | 10 |
|
- | ||||
| 19 | 5170P228-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 20 | 8112P105-60 | Manual, Use & Care-insert | 10 |
|
- | ||||
| 20 | 74001539 | Manual, Use & Care | 10 |
|
- | ||||
| 21 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
