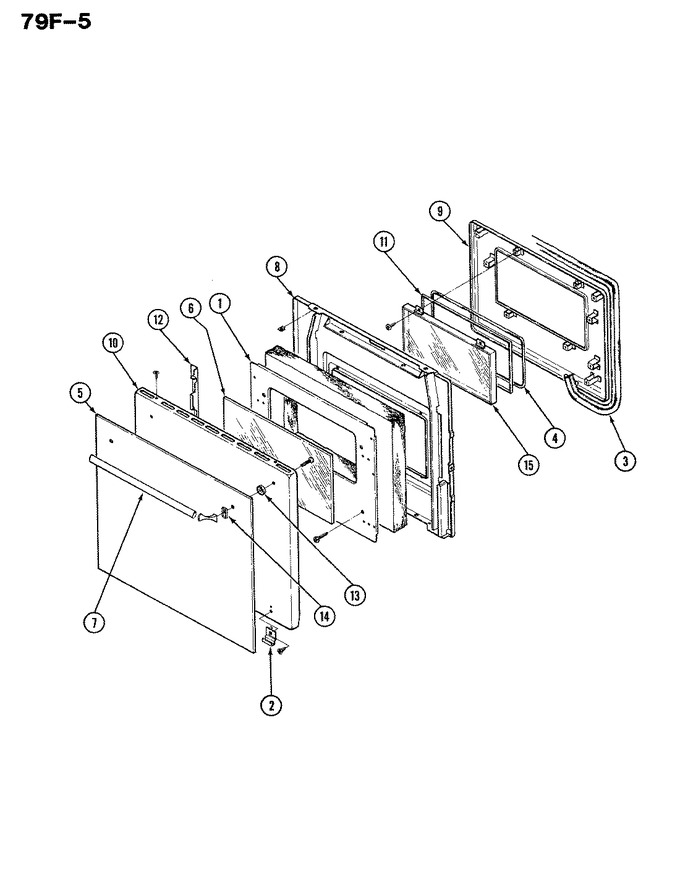

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W131-51 | Baffle, Door Assembly | 01 |
|
- | ||||
| 2 | 3819F010-71 | Clip,glass Retainer (wht) | 01 |
|
- | ||||
| 3 | 7201P053-60 | Gasket, Door | 16 |
|
- | ||||
| 3 | 7201P004-60 | Gasket | 01 |
|
- | ||||
| 4 | 7201P020-60 | Gasket | 01 |
|
- | ||||
| 5 | 7902P300-60 | Glass, Door | 01 |
|
- | ||||
| 5 | 7902P334-60 | Glass, Outer (wht) | 12 |
|
- | ||||
| 6 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 7 | 7101P004-60 | Screw | 01 |
|
- | ||||
| 7 | 7701P086-60 | Handle, Door (wht) | 01 |
|
- | ||||
| 8 | 2402W130-15 | Lining Assembly | 01 |
|
- | ||||
| 8 | 2402W130-19 | Lining, Door | 13 |
|
- | ||||
| 9 | 2410W043-15 | Pad Assy Oven Door | 01 |
|
- | ||||
| 9 | 2410A042-19 | Pad, Oven Door Assy. | 13 |
|
- | ||||
| 10 | 2401F103-71 | Panel, Door (wht) | 12 |
|
- | ||||
| 10 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 10 | 2401F045-71 | Panel, Oven Door (white) | 01 |
|
- | ||||
| 11 | 3804F021-45 | Retainer, Gasket | 01 |
|
- | ||||
| 12 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 13 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 14 | 8010P054-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 14 | 8010P077-60 | Spacer, Handle (wht) | 14 |
|
- | ||||
| 15 | 5700A082-60 | Window Assy. | 01 |
|
$ 164.77 |
