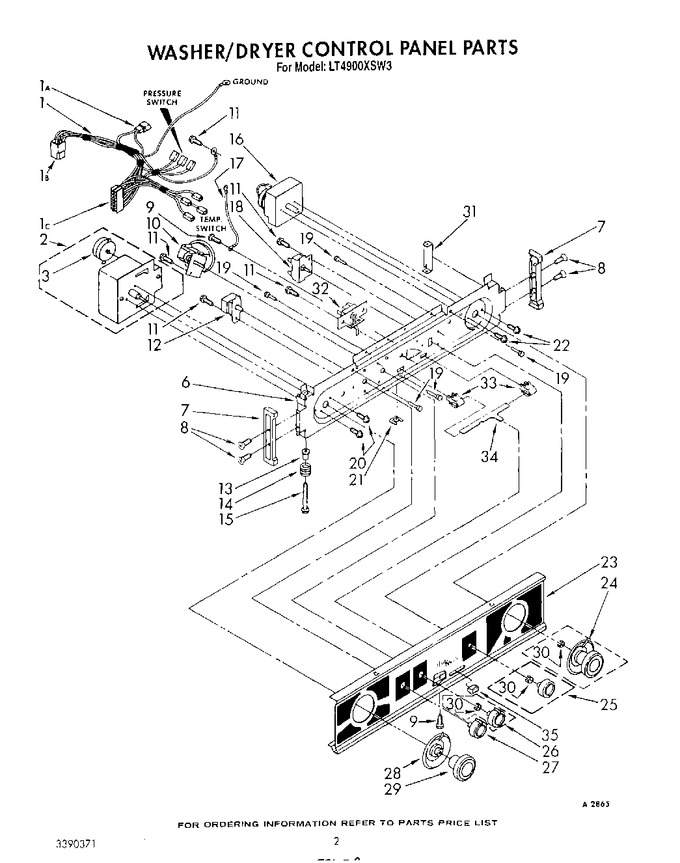

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10876590 |
 |
Disconnect Block (connects With Automatic Timer) (Replaces: 352089) |
|
|
|
$ 11.48 |
|
|
| 1 |
3387713 |
|
Harness, Console Wiring (automatic) (includes Illus.1a, 1b & 1c) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
342529 |
|
Plug, Terminal (2-way) (connects With Main Dryer Harness) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
696073 |
|
Receptacle, Connector (connects With Lower Automatic Harness) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WP3946432 |
 |
Timer, Control (60 Hz.) (automatic Washer) (Replaces: 3347890) |
|
|
|
$ 422.19 |
|
|
| 3 |
63491 |
|
Motor, Timer (60 Hz.) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
694338 |
|
Bracket, Control |
|
Appelez-nous
|
- |
|
|
|
| 7 |
692993 |
|
End Cap, Console (l.h. & R.h.) |
|
|
|
$ 34.71 |
|
|
| 8 |
348689 |
|
Screw, End Cap Mounting (4) (6-32 X 3/4) |
|
|
|
$ 66.92 |
|
|
| 9 |
WP694091 |
 |
Screw, Mounting No.8 (posi Driv) (Replaces: 694091) |
|
|
|
$ 6.47 |
|
|
| 10 |
100092741 |
|
Switch, Water Level (Replaces: 64093) |
|
|
|
$ 748.70 |
|
|
| 11 |
WP3390631 |
 |
Screw, Tapping (6) (Replaces: 342202) |
|
|
|
$ 7.04 |
|
|
| 12 |
370145 |
|
Switch, Water Temperature (alt.) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
370146 |
|
Switch, Water Temperature (alt.) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
660393 |
|
Switch, Water Temperature |
|
Appelez-nous
|
- |
|
|
|
| 13 |
693711 |
 |
Sleeve, Console Lock Screw (2) |
|
|
|
$ 7.35 |
|
|
| 14 |
WP693151 |
 |
Spring, Console Lock (2) (Replaces: 693151) |
|
|
|
$ 6.72 |
|
|
| 15 |
693710 |
|
Screw, Console Lock (2) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
692698 |
|
Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
693175 |
|
Strut, Console |
|
Appelez-nous
|
- |
|
|
|
| 18 |
693169 |
|
Switch, Push-to-start |
|
Appelez-nous
|
- |
|
|
|
| 19 |
693152 |
|
Bumper, Console (5) |
|
|
|
$ 9.86 |
|
|
| 20 |
WP356418 |
 |
Screw, Timer Mounting (2) (Replaces: 96435) |
|
|
|
$ 7.13 |
|
|
| 21 |
694037 |
|
Clip, Console |
|
|
|
$ 74.14 |
|
|
| 22 |
W11808444 |
|
Screw, Dryer Timer Mounting (2) (8-32 X 5/16) (Replaces: 98139) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
694335 |
|
Panel, Control |
|
Appelez-nous
|
- |
|
|
|
| 24 |
696352 |
|
Knob & Skirt, Dryer Timer |
|
Appelez-nous
|
- |
|
|
|
| 25 |
3388562 |
|
Button, Push-to-start |
|
Appelez-nous
|
- |
|
|
|
| 26 |
696342 |
|
Knob & Clip, Water Level |
|
Appelez-nous
|
- |
|
|
|
| 27 |
696342 |
|
Knob & Clip, Water Temperature |
|
Appelez-nous
|
- |
|
|
|
| 28 |
3388182 |
|
Dial, Timer |
|
Appelez-nous
|
- |
|
|
|
| 29 |
3347726 |
|
Knob, Timer |
|
Appelez-nous
|
- |
|
|
|
| 30 |
WP688805 |
 |
Clip (Replaces: 688805) |
|
|
Immediately |
$ 7.03 |
|
|
| 31 |
WP692983 |
 |
Lock, Console (2) (Replaces: 692983) |
|
|
|
$ 76.57 |
|
|
| 32 |
694302 |
|
Switch, Master Selector (washer Or Dryer) |
|
Appelez-nous
|
- |
|
|
|
| 33 |
694321 |
|
Guide, Slide Bar (2) |
|
Appelez-nous
|
- |
|
|
|
| 34 |
694320 |
|
Bar, Slide |
|
Appelez-nous
|
- |
|
|
|
| 35 |
696396 |
|
Button, Slide Selector (washer Or Dryer) |
|
Appelez-nous
|
- |
|
|
|
