| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP8577376 |
 |
Seal, Centerpost (2) (Replaces: 356934) |
|
|
Immediately |
$ 6.47 |
|
|
| 2 |
359179 |
|
Baseplate & Centerpost |
|
Appelez-nous
|
- |
|
|
|
| 3 |
17235 |
|
Gasket, Tub (3) |
|
|
|
$ 249.30 |
|
|
| 4 |
356137 |
|
Spring, Idler Arm |
|
Appelez-nous
|
- |
|
|
|
| 5 |
366856 |
|
Idler Arm & Shaft |
|
Appelez-nous
|
- |
|
|
|
| 6 |
366855 |
|
Pulley, Idler |
|
Appelez-nous
|
- |
|
|
|
| 7 |
356133 |
|
Washer, Thrust |
|
Appelez-nous
|
- |
|
|
|
| 8 |
356087 |
|
Ring, Retainer |
|
Appelez-nous
|
- |
|
|
|
| 9 |
356088 |
|
Ring, Retainer |
|
Appelez-nous
|
- |
|
|
|
| 10 |
359997 |
|
Magnet |
|
Appelez-nous
|
- |
|
|
|
| 11 |
16135 |
|
Screw, Taper End |
|
Appelez-nous
|
- |
|
|
|
| 12 |
95462 |
|
Guide, Cam Bar |
|
Appelez-nous
|
- |
|
|
|
| 13 |
350532 |
|
Cam, Bar Spin (Replaces: 354838) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
356403 |
|
Belt, ``v`` (alt.) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
356402 |
|
Belt, ``v`` (alternate) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
660373 |
|
Belt, ``v`` |
|
Appelez-nous
|
- |
|
|
|
| 15 |
98001 |
|
Screw, 1/4-28 X 1/2 |
|
Appelez-nous
|
- |
|
|
|
| 16 |
94726 |
|
Spring, Brake |
|
Appelez-nous
|
- |
|
|
|
| 17 |
18642 |
|
Cam, Agitator & Pump |
|
|
|
$ 24.51 |
|
|
| 18 |
84866 |
|
Plunger |
|
Appelez-nous
|
- |
|
|
|
| 19 |
354959 |
|
Rivet |
|
Appelez-nous
|
- |
|
|
|
| 20 |
383932 |
|
Basket Drive & Brake (refer To Page 17 For Further Breakdown) (Replaces: 359175) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
17261 |
|
Spring, Brake Yoke |
|
Appelez-nous
|
- |
|
|
|
| 22 |
358586 |
|
Support, Spin Tube |
|
Appelez-nous
|
- |
|
|
|
| 23 |
90315 |
|
Washer (2) |
|
Appelez-nous
|
- |
|
|
|
| 24 |
90532 |
|
Pin, Roll |
|
Appelez-nous
|
- |
|
|
|
| 25 |
92119 |
|
Roller, Basket Clutch Shaft |
|
Appelez-nous
|
- |
|
|
|
| 26 |
359460 |
|
Shaft, Basket Clutch |
|
Appelez-nous
|
- |
|
|
|
| 28 |
356154 |
|
Screw & Washer (3) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
692709 |
|
Baseplate, Lower |
|
Appelez-nous
|
- |
|
|
|
| 30 |
356993 |
|
Bearing, Upper |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W11095997 |
 |
Seal, Shaft (2) (Replaces: 359449) |
|
|
Immediately |
$ 20.07 |
|
|
| 32 |
354195 |
|
Bearing, Lower |
|
Appelez-nous
|
- |
|
|
|
| 33 |
356939 |
|
Pulley, Motor |
|
Appelez-nous
|
- |
|
|
|
| 34 |
355345 |
|
Setscrew, 5/16-18 X 1/2 |
|
|
|
$ 5.04 |
|
|
| 35 |
358816 |
|
Motor, 60 Hz. (emerson) |
|
Appelez-nous
|
- |
|
|
|
| 36 |
WP8572717 |
 |
Capacitor, Motor Start (Replaces: 357021) |
|
|
Immediately |
$ 72.13 |
|
|
| 37 |
357030 |
 |
Clamp, Capacitor |
|
|
|
$ 18.98 |
|
|
| 38 |
WP3390631 |
 |
Screw, Motor Ground (Replaces: 9420601) |
|
|
|
$ 7.04 |
|
|
| 39 |
370950 |
|
Harness, Jumper |
|
Appelez-nous
|
- |
|
|
|
| 40 |
356444 |
|
Retainer, Brake Yoke |
|
|
|
$ 5.33 |
|
|
| 41 |
358585 |
|
Ball |
|
Appelez-nous
|
- |
|
|
|
| 42 |
356155 |
|
Pulley, Main Drive |
|
Appelez-nous
|
- |
|
|
|
| 43 |
384122 |
|
Gearcase (refer To Page 16 For Further Breakdown) |
|
Appelez-nous
|
- |
|
|
|
| 44 |
98023 |
|
Nut, Motor Mounting (4) |
|
Appelez-nous
|
- |
|
|
|
| 45 |
WP385728 |
|
Bushing, Wig Wag (Replaces: 385728) |
|
|
|
$ 6.79 |
|
|
| 46 |
356322 |
|
Grommet, Motor (4) |
|
Appelez-nous
|
- |
|
|
|
| 47 |
W10491983 |
|
Cap, Motor Stud (2) (Replaces: 359702) |
|
Appelez-nous
|
- |
|
|
|
| 48 |
362738 |
|
Switch, Motor Start (use W/emerson Motor) |
|
Appelez-nous
|
- |
|
|
|
| 49 |
425583 |
|
Screw & Washer (6) |
|
Appelez-nous
|
- |
|
|
|
| 50 |
367011 |
|
Spring & Dampener (no. 1) (rear) |
|
Appelez-nous
|
- |
|
|
|
| 50 |
367013 |
|
Spring & Dampener (2) (left Side) |
|
Appelez-nous
|
- |
|
|
|
| 50 |
367012 |
|
Spring & Dampener (no. 3) (front) |
|
Appelez-nous
|
- |
|
|
|
| 51 |
356327 |
|
Clip, Harness Routing (3) |
|
Appelez-nous
|
- |
|
|
|
| 53 |
358354 |
|
Spring, Agitator Plunger |
|
Appelez-nous
|
- |
|
|
|
| 54 |
285136 |
|
Centerpost Bearing Kit (includes Illus. 1, 30, 31 & 32) |
|
Appelez-nous
|
- |
|
|
|
| 55 |
WP488234 |
 |
Screw, 8-32 X 1/4 (motor Ground) (Replaces: 9412221) |
|
|
|
$ 6.07 |
|
|
| 56 |
357623 |
|
Shield, Splash |
|
Appelez-nous
|
- |
|
|
|
| 57 |
357622 |
|
Support, Splash Shield |
|
Appelez-nous
|
- |
|
|
|
| 58 |
356288 |
|
Clip, Push-on (2) |
|
Appelez-nous
|
- |
|
|
|
| 59 |
692679 |
|
Block, Restraint (2) |
|
Appelez-nous
|
- |
|
|
|
| 60 |
386011 |
|
Screw, 5/16-18 X 7/8 (2) (washer Base To Cabinet) |
|
Appelez-nous
|
- |
|
|
|

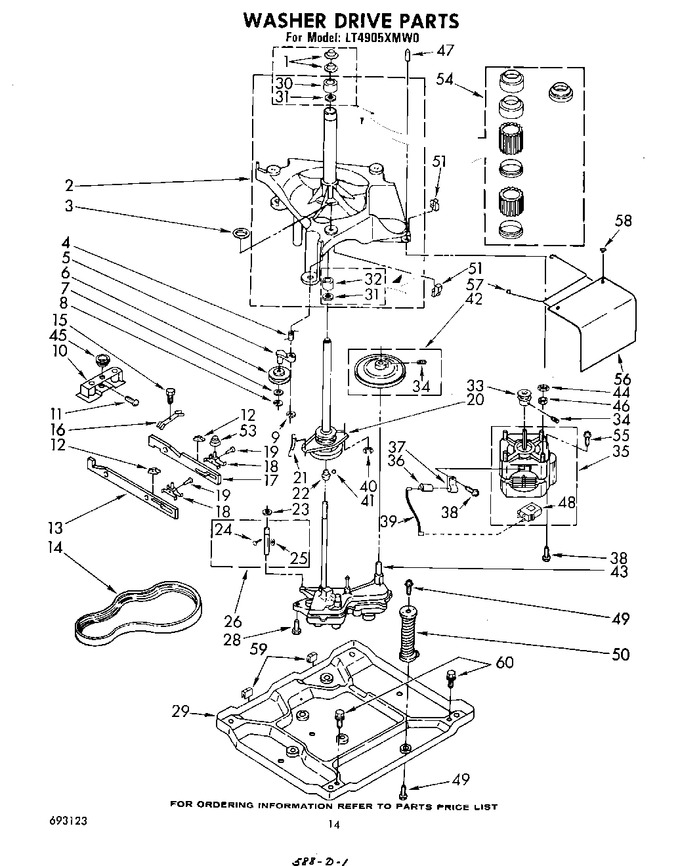

View Diagram in Separate Window
