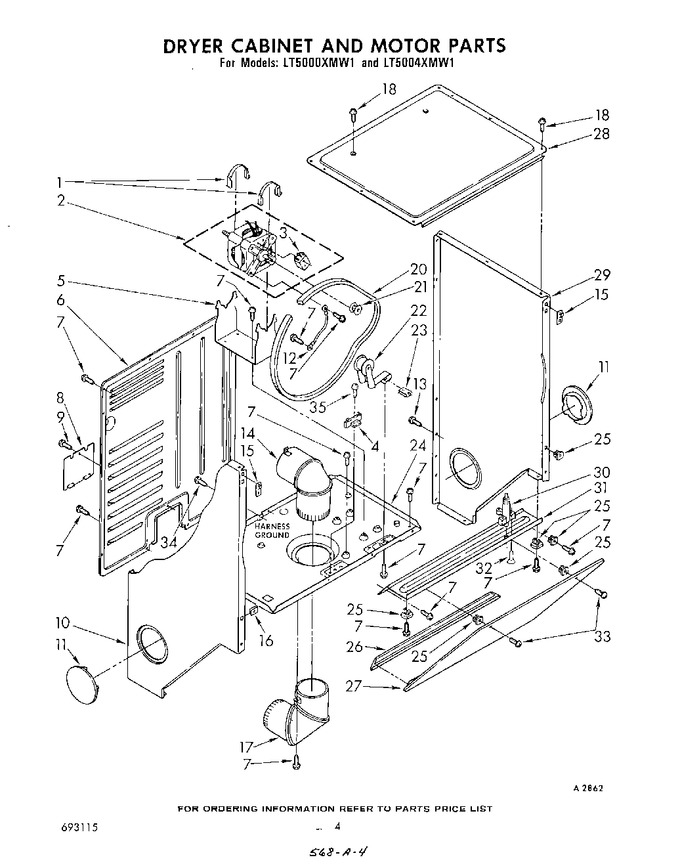

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP660658 |
 |
Clamp, Motor Mounting (2) 343481 (alt.) 685441 (alt.) (Replaces: 660658) |
|
|
|
$ 7.05 |
|
|
| 2 |
279827 |
 |
Motor, Main Drive (60 Hz.) (Replaces: 695075) |
|
|
Immediately |
$ 172.76 |
|
|
| 3 |
279827 |
|
Switch, Motor Start (Replaces: 337351) |
|
|
Immediately |
$ 172.76 |
|
|
| 4 |
279872 |
 |
Power Resistor & Shield (Replaces: 61806) |
|
|
|
$ 67.45 |
|
|
| 5 |
696541 |
|
Bracket, Motor (Replaces: 346846) |
|
|
|
$ 83.88 |
|
|
| 6 |
692626 |
|
Panel, Rear |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 8 |
307972 |
|
Cover, Terminal Block |
|
Appelez-nous
|
- |
|
|
|
| 9 |
WP681414 |
|
Screw, 10-16 X 1/2 (Replaces: 687128) |
|
|
Immediately |
$ 7.07 |
|
|
| 10 |
692615 |
|
Panel, Side (l.h.) (toast) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
692616 |
|
Panel, Side (l.h.) (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP3402293 |
|
Panel, Side (l.h.) (white) (Replaces: 692613) |
|
|
|
$ 313.14 |
|
|
| 10 |
692614 |
|
Panel, Side (l.h.) (almond) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
692617 |
|
Panel, Side (l.h.) (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
692792 |
|
Plug, Side Panel (2) (toast) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
692794 |
|
Plug, Side Panel (2) (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
692790 |
 |
Plug, Side Panel (2) (white) |
|
|
|
$ 73.91 |
|
|
| 11 |
692791 |
|
Plug, Side Panel (2) (almond) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
692793 |
|
Plug, Side Panel (2) (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
687261 |
|
Wire, Motor Ground |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP308544 |
 |
Screw, 10-24 X 1/2 (8) (mounts Dryer To Dryer Supports) (Replaces: 308544) |
|
|
Immediately |
$ 6.98 |
|
|
| 14 |
695524 |
|
Elbow, Upper |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W10854425 |
 |
Clip, Front Panel (2) (Replaces: 237823) |
|
|
Immediately |
$ 14.00 |
|
|
| 16 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 10.25 |
|
|
| 17 |
3399603 |
|
Elbow, Lower (Replaces: 696045) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP308685 |
 |
Screw, 10-16 X 1/2 (8) (dryer Top To Side Panels) (Replaces: 695553) |
|
|
Immediately |
$ 7.08 |
|
|
| 20 |
3394652 |
 |
Belt, Drive (Replaces: 345675) |
|
|
Immediately |
$ 47.09 |
|
|
| 21 |
W10837625 |
 |
Pulley, Motor (60 Hz.) (Replaces: 694872) |
|
|
Immediately |
$ 10.94 |
|
|
| 22 |
WP691366 |
 |
Idler & Bracket (Replaces: 691366) |
|
|
Immediately |
$ 20.22 |
|
|
| 23 |
WP692771 |
|
Nut, Idler Bracket To Base (Replaces: 692771) |
|
|
|
$ 7.16 |
|
|
| 24 |
694413 |
|
Base, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WP692400 |
 |
Nut, Push-in (Replaces: 692400) |
|
|
Immediately |
$ 6.88 |
|
|
| 26 |
WP692926 |
|
Cove, Transition Panel (black) (Replaces: 692926) |
|
|
|
$ 80.30 |
|
|
| 27 |
692936 |
|
Panel, Transition (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692935 |
|
Panel, Transition (toast) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692937 |
|
Panel, Transition (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692934 |
|
Panel, Transition (almond) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692933 |
 |
Panel, Transition (white) |
|
|
|
$ 199.04 |
|
|
| 28 |
WP692641 |
|
Top, Dryer (Replaces: 692641) |
|
|
|
$ 231.87 |
|
|
| 29 |
692610 |
|
Panel, Side (r.h.) (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
692607 |
|
Panel, Side (r.h.) (white) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
692609 |
|
Panel, Side (r.h.) (toast) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
692611 |
|
Panel, Side (r.h.) (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
692608 |
|
Panel, Side (r.h.) (almond) |
|
Appelez-nous
|
- |
|
|
|
| 30 |
WP693145 |
 |
Latch, Lid (Replaces: 693145) |
|
|
|
$ 76.65 |
|
|
| 31 |
692782 |
|
Closure, Control Area (almond) |
|
Appelez-nous
|
- |
|
|
|
| 31 |
692783 |
|
Closure, Control Area (toast) |
|
Appelez-nous
|
- |
|
|
|
| 31 |
692785 |
|
Closure, Control Area (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 31 |
WP692781 |
|
Closure, Control Area (white) (Replaces: 692781) |
|
|
|
$ 158.75 |
|
|
| 31 |
692784 |
|
Closure, Control Area (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 32 |
354975 |
|
Screw & Washer (3) (lid Latch Mounting) |
|
Appelez-nous
|
- |
|
|
|
| 33 |
WP693304 |
 |
Screw & Washer (2) (transition Panel To Closure) (Replaces: 693304) |
|
|
|
$ 7.04 |
|
|
| 34 |
WP681414 |
|
Screw, Ground (2) (10-32 X 1/2) (Replaces: 690989) |
|
|
Immediately |
$ 7.07 |
|
|
| 35 |
WP3390631 |
 |
Screw, Tapping (resistor To Base) (10-16 X 3/8) (Replaces: 62863) |
|
|
|
$ 7.04 |
|
|
