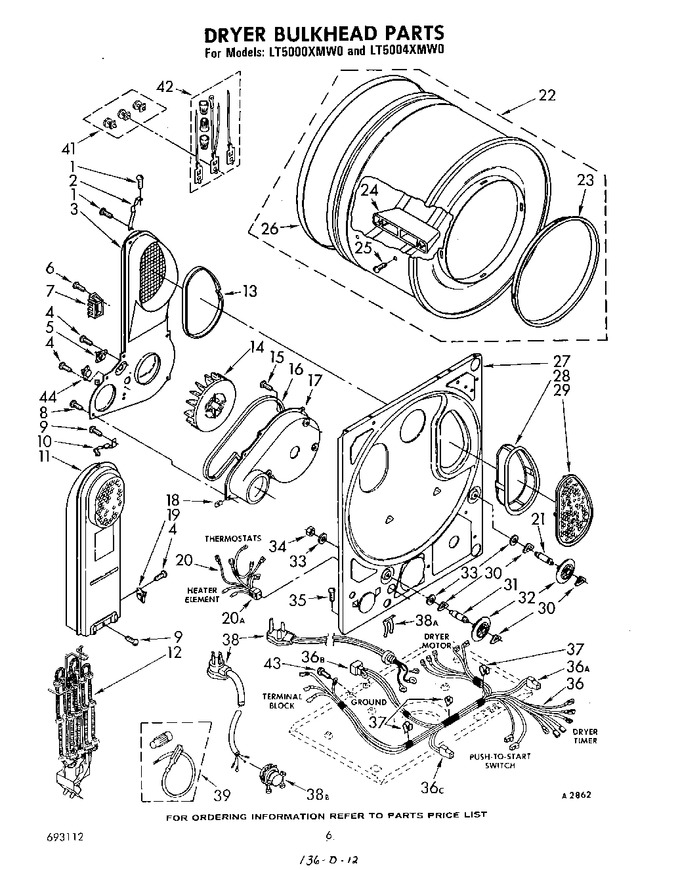

LT5004XMW0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP681414	Screw,10-16 X 1/2 (Replaces: 343641)		Immediately	$ 7.07
2	345396	Clip, Air Duct To Bulkhead	Appelez-nous	-
3	694574	Air Duct & Bracket	Appelez-nous	-
4	WP90767	Screw, 8a X 3/8 (hex Head) (Replaces: 90767)		Immediately	$ 7.04
5	AT022	Thermostat, Operating (145of) (62.8oc) 341200 (alt.) (Replaces: 660074)		Immediately	$ 31.65
6	WP308685	Screw, Terminal Block To Bracket (2) (Replaces: 98518)		Immediately	$ 7.08
7	279320	Block, Terminal (Replaces: 690261)		Immediately	$ 61.43
8	694079	Screw, Grounding No.8 (5) (air Duct To Scroll)	Appelez-nous	-
9	WP681414	Screw, 10-16 X 1/2 (Replaces: 687128)		Immediately	$ 7.07
10	279771	Clip, Heater Box To Bulkhead (Replaces: 337272)			$ 12.90
11	685457	Heater Box (120/240 Volts)	Appelez-nous	-
12	694430	Element, Heater	Appelez-nous	-
13	WP339956	Seal, Air Duct To Bulkhead (Replaces: 339956)		Immediately	$ 7.77
14	345317	Wheel, Blower	Appelez-nous	-
15	WP308685	Screw, 10-16 X 1/2 (3) (fan Scroll To Bulkhead) (Replaces: 9416643)		Immediately	$ 7.08
16	345685	Seal, Fan Scroll	Appelez-nous	-
17	692833	Fan Scroll	Appelez-nous	-
18	694078	Clip, Fan Scroll To Air Duct (5)	Appelez-nous	-
19	LS2-225	Thermostat, Heater Box (225of) (107.2oc) (Replaces: 347296)		Immediately	$ 12.18
20	694529	Harness, Thermostat & Heater (includes Illus. 20a)	Appelez-nous	-
21	WPW10359269	Shaft, Drum Roller (r.h.) (Replaces: 339489)		Immediately	$ 42.57
22	00685158	Drum, Dryer (Replaces: 685158)			$ 188.69
23	WP3394508	Bearing, Ring (Replaces: 297936)			$ 113.02
24	00685207	Baffle, Drum (3) (Replaces: 685207)			$ 293.40
25	690372	Screw, Baffle Mounting (6) (11-16 X 7/8)	Appelez-nous	-
26	279735	Seal, Drum Rear (Replaces: 345648)		Immediately	$ 60.04
27	279848	Bulkhead (Replaces: 349726)			$ 312.67
28	W10828351	Screen, Lint (Replaces: 348399)		Immediately	$ 50.62
29	W10828351	Cover, Lint Screen Outlet (Replaces: 685273)		Immediately	$ 50.62
30	WPW10512946	Tri Ring (4) (Replaces: 690997)		Immediately	$ 7.92
31	WPW10359270	Shaft, Drum Roller (l.h.) (Replaces: 347364)		Immediately	$ 65.44
32	349241T	Roller, Support (2) (Replaces: 349241)		Immediately	$ 26.58
33	WP348197	Washer, Support (4) (Replaces: 348197)			$ 6.47
34	120377	Nut, 3/8-16 (2)	Appelez-nous	-
35	WP3390631	Screw, Tapping (4) (bulkhead To Base) (Replaces: 342202)			$ 7.04
36	694531	Harness, Main Dryer Wiring (includes Illus. 36a, 36b & 36c)	Appelez-nous	-
37	693141	Clip, Wiring Harness (3)	Appelez-nous	-
38	694276	Cord, Power (4 Prong) (use W/model Lt5004xmwo & Strain Relief 687000)	Appelez-nous	-
38	PT220L	Cord, Power (3 Prong) (use W/model Lt5000xmwo & Strain Relief Clip 694415) (Replaces: 694045)			$ 37.04
39	279457	Terminal Wire Kit (for Heater Element Wiring Harness Repair)		Immediately	$ 7.13
41	279393	Screw Kit (for Terminal Block)		Immediately	$ 42.63
42	279318	Terminal, Tinned & Brass (3) (includes Illus. 41)		Immediately	$ 90.89
43	WP681414	Screw, Ground (2) (10-32 X 1/2) (Replaces: 690989)		Immediately	$ 7.07
44	WP694674	Thermostat, Operating (135of) (57.2oc) 295421 (alt.) 341201 (alt.) (Replaces: 660067)		Immediately	$ 45.46
20A	692997	Plug, Multi-terminal (connects With Main Dryer Harness)	Appelez-nous	-
36A	717252	Receptacle, Terminal (2-way) (connects With Door Switch Harness)	Appelez-nous	-
36B	692998	Receptacle, Multi-terminal (connects With Thermostat & Heater Harness)	Appelez-nous	-
36C	717252	Receptacle, Terminal (2-way) (connects With Automatic Console Harness)	Appelez-nous	-
38A	W11712577	Clip, Strain Relief (power Cord) (use W/3 Prong Power Cord) (Replaces: 694415)		Immediately	$ 6.66
38B	687000	Strain Relief, Power Cord (use W/4 Prong Power Cord)			$ 70.88
