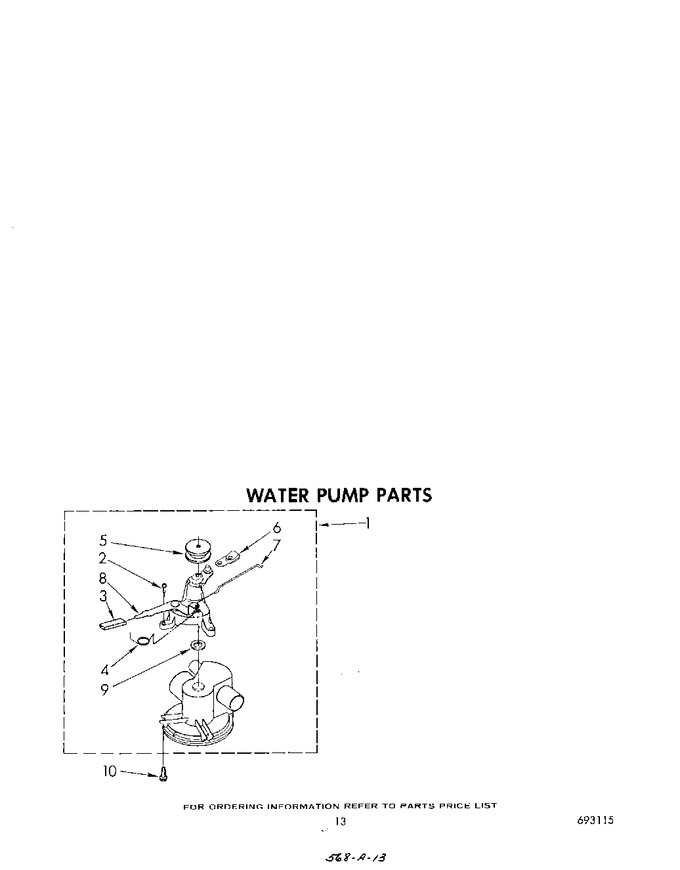

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358258		Pump Assembly (complete)		Appelez-nous	-
2	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
3	96175		Sleeve		Appelez-nous	-
4	96266		Spring, Toggle		Appelez-nous	-
5	356926		Pulley, Pump		Appelez-nous	-
6	355538		Lever, Valve		Appelez-nous	-
7	96264		Rod, Connecting		Appelez-nous	-
8	383750		Bearing Block Assembly		Appelez-nous	-
9	96265		Wick, Oil		Appelez-nous	-
10	386011		Screw, Pump To Gearcase (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
