| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
697436 |
|

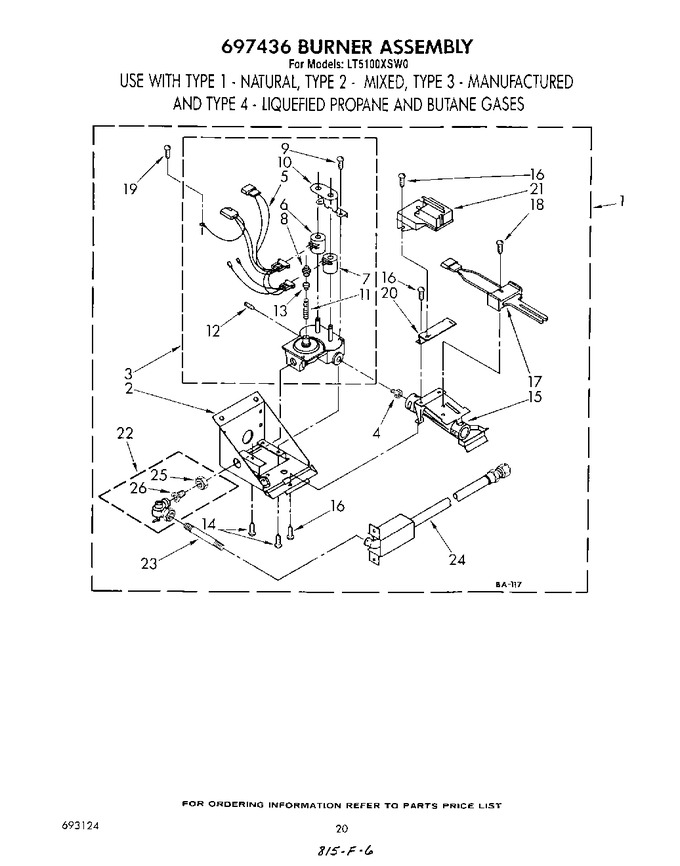

Burner Assembly 60 Hz. |
|
Appelez-nous
|
- |
|
|
|
| 2 |
697408 |
|
Base, Burner |
|
Appelez-nous
|
- |
|
|
|
| 3 |
694498 |
|
Valve, 60 Hz. |
|
Appelez-nous
|
- |
|
|
|
| 4 |
WP347744 |
|
Orifice (l.p. Gas) (Replaces: 347744) |
|
|
|
$ 72.54 |
|
|
| 4 |
WP234822 |
 |
Orifice (natural Gas) (Replaces: 234822) |
|
|
|
$ 25.96 |
|
|
| 5 |
WP3401849 |
|
Harness (Replaces: 697807) |
|
|
|
$ 100.30 |
|
|
| 6 |
279834 |
 |
Coil, 60 Hz. (split) (Replaces: 694539) |
|
|
Immediately |
$ 29.57 |
|
|
| 7 |
279834 |
|
Coil, 60 Hz. (Replaces: 694540) |
|
|
Immediately |
$ 29.57 |
|
|
| 8 |
WP694424 |
 |
Leak Limiter (Replaces: 694424) |
|
|
|
$ 31.11 |
|
|
| 9 |
694421 |
|
Screw, 8-32 |
|
Appelez-nous
|
- |
|
|
|
| 10 |
694538 |
|
Bracket, Shunt |
|
|
|
$ 72.05 |
|
|
| 11 |
WP694422 |
 |
Spring, Regulator (Replaces: 694422) |
|
|
|
$ 21.84 |
|
|
| 12 |
W10295523 |
|
Plug, Pipe (Replaces: 239822) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP694423 |
 |
Screw (Replaces: 694423) |
|
|
|
$ 6.26 |
|
|
| 14 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 339527) |
|
|
Immediately |
$ 7.04 |
|
|
| 15 |
8578392 |
|
Burner (Replaces: 697361) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP90767 |
|
Screw No.8 (3) (Replaces: 3348629) |
|
|
Immediately |
$ 7.04 |
|
|
| 17 |
279311 |
 |
Ignitor (686590) (alt.) (Replaces: 660991) |
|
|
Immediately |
$ 71.01 |
|
|
| 18 |
WPW10366705 |
|
Screw And Washer 8-32 X 1 (Replaces: 686593) |
|
|
|
$ 6.75 |
|
|
| 19 |
WP3390631 |
 |
Screw, 10-16 X 1/4 (Replaces: 342202) |
|
|
|
$ 7.04 |
|
|
| 20 |
697409 |
|
Bracket, Sensor |
|
Appelez-nous
|
- |
|
|
|
| 21 |
WP338906 |
 |
Sensor, Radiant (Replaces: 338906) |
|
|
Immediately |
$ 46.72 |
|
|
| 22 |
697441 |
|
Valve, Shutoff |
|
Appelez-nous
|
- |
|
|
|
| 23 |
3388638 |
|
Nipple, Short |
|
Appelez-nous
|
- |
|
|
|
| 24 |
3391118 |
|
Supply Line (gas) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
233076 |
|
Nut, Compression |
|
|
|
$ 43.19 |
|
|
| 26 |
W10402145 |
 |
Conversion Kit (type 1,2, & 3 To Type 4 (lpg) (Replaces: 694580) |
|
|
|
$ 97.89 |
|
|
| 26 |
3393767 |
|
Pipe (Replaces: 233077) |
|
|
|
$ 123.97 |
|
|
| 26 |
279243 |
|
Conversion Kit Type 1 (natural) To Type 3 (manufactured) |
|
Appelez-nous
|
- |
|
|
|
