| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
694304 |
|
Cover, Channel |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11174025 |
|
Support, Dryer (l.h.) (Replaces: 692647) |
|
|
|
$ 45.83 |
|
|
| 3 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 4 |
WP308544 |
 |
Screw, 10-24 X 1/2 (8) (washer Cabinet To Dryer Supports) (Replaces: 308544) |
|
|
Immediately |
$ 6.98 |
|
|
| 5 |
W11174024 |
|
Support, Dryer (r.h.) (Replaces: 692646) |
|
|
|
$ 117.52 |
|
|
| 6 |
3388677 |
 |
Harness, Upper (automatic) (includes Illus. 6a, 6b & 6c) |
|
|
|
$ 171.55 |
|
|
| 6 |
WP62505 |
 |
Block, Disconnect (connects With Automatic Washer Motor) (Replaces: 62505) |
|
|
|
$ 21.35 |
|
|
| 6 |
696074 |
|
Plug, Terminal (12-way) (connects With Automatic Console Harness) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
WP62889 |
 |
Plug, Terminal (3-way) (connects With Automatic Lid Switch Harness) (Replaces: 62889) |
|
|
|
$ 6.88 |
|
|
| 7 |
8528351 |
|
Clip, Wiring Harness (4) (Replaces: 3347812) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
696636 |
|
Clip, Pressure Switch Hose And Wiring Harness (3) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
685463 |
|
Kit, Wire Grounding |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP488234 |
 |
Screw, 8-32 X 1/4 (2) (motor Ground) (Replaces: 9412221) |
|
|
|
$ 6.07 |
|
|
| 11 |
WP90016 |
 |
Clip, Pressure Switch Hose (2) (Replaces: 90016) |
|
|
|
$ 10.19 |
|
|
| 12 |
693141 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10834213 |
 |
Hose, Pressure Switch (Replaces: 696238) |
|
|
Immediately |
$ 28.51 |
|
|
| 14 |
132848 |
|
Screw, 10-24 X 1 |
|
Appelez-nous
|
- |
|
|
|
| 15 |
22965 |
|
Strap, Ground |
|
Appelez-nous
|
- |
|
|
|
| 16 |
685449 |
|
Wire, Ground |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W10080180 |
|
Nut, 10-24 (Replaces: 120361) |
|
|
|
$ 12.13 |
|
|
| 18 |
WP94614 |
 |
Terminal (female) (Replaces: 94614) |
|
|
|
$ 6.90 |
|
|
| 18 |
94613 |
|
Terminal, (male) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
352088 |
|
Terminal, Female |
|
|
|
$ 5.83 |
|
|
| 20 |
WP285432 |
|
Terminal, Female (Replaces: 358763) |
|
|
|
$ 6.99 |
|
|
| 21 |
374230 |
|
Block, Terminal |
|
Appelez-nous
|
- |
|
|
|

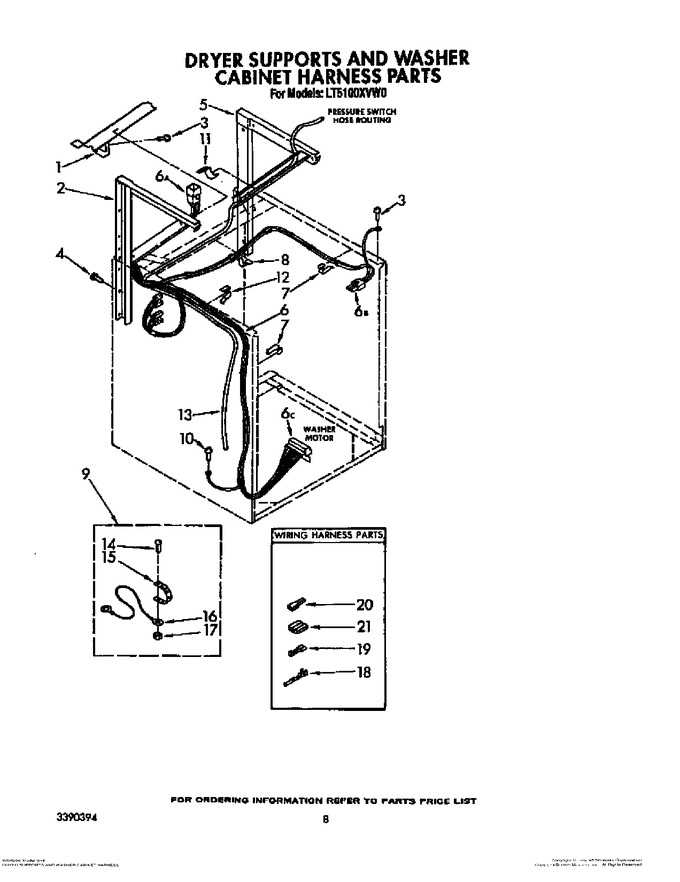

View Diagram in Separate Window
