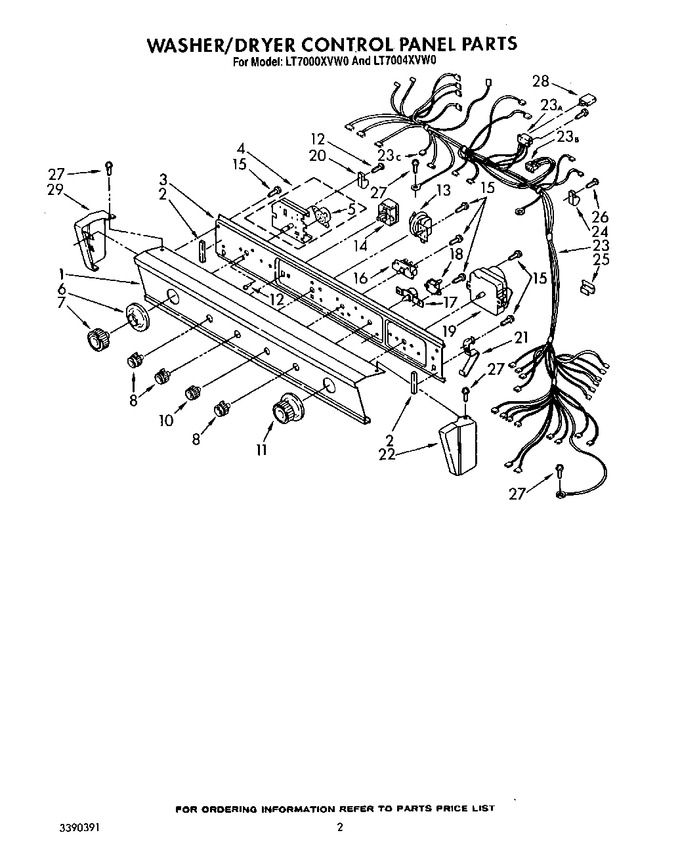

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3390083 | Panel, Control (almond) |
|
- | |||||
| 1 | 3390082 | Panel, Control (white) |
|
- | |||||
| 2 | 3390688 | Spacer- Foam Pad (2) |
|
$ 8.13 | |||||
| 3 | 3389533 | Bracket, Control (includes Illus. 2) |
|
- | |||||
| 4 | WP3351744 | Timer, Washer (Replaces: 3351744) |
|
Immediately | $ 250.18 | ||||
| 5 | 63493 | Motor, Timer |
|
- | |||||
| 6 | 3392746 | Skirt, Timer Knob (washer) (white) |
|
- | |||||
| 6 | 3392747 | Skirt, Timer Knob (washer) (almond) |
|
- | |||||
| 7 | 3392699 | Knob, Timer (washer) (almond) |
|
- | |||||
| 7 | 3392698 | Knob, Timer (washer) (white) |
|
- | |||||
| 8 | 3392714 | Knob, Control (3) (white) |
|
- | |||||
| 8 | 3392715 | Knob, Control (3) (almond) |
|
- | |||||
| 10 | 3392692 | Knob, Push To Start (white) |
|
- | |||||
| 10 | 3392693 | Knob, Push To Start (almond) |
|
- | |||||
| 11 | 3392731 | Knob, Timer (dryer) (almond) |
|
- | |||||
| 11 | 3392730 | Knob, Timer (dryer) (white) |
|
- | |||||
| 12 | WP356418 | Screw (Replaces: 96435) |
|
$ 7.13 | |||||
| 13 | 3348819 | Switch, Pressure |
|
- | |||||
| 14 | 661535 | Switch, Temperature |
|
- | |||||
| 15 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3391382) |
|
$ 7.04 | |||||
| 16 | 693169 | Switch, Push-to-start |
|
- | |||||
| 17 | 696321 | Control, Varible Temperature |
|
- | |||||
| 18 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 114.90 | |||||
| 19 | 3391377CP | Timer, Dryer (Replaces: 3391377) |
|
- | |||||
| 20 | 488946 | Clamp (Replaces: 255565) |
|
$ 18.41 | |||||
| 21 | 3389453 | Bracket, Hinge (2) |
|
$ 78.06 | |||||
| 22 | 3389456 | End Cap-right Hand (white) |
|
$ 40.11 | |||||
| 22 | 3389457 | End Cap-right Hand (almond) |
|
- | |||||
| 23 | WP62889 | Receptacle, Power (washer) (Replaces: 62889) |
|
$ 6.88 | |||||
| 23 | 3393297 | Harness - Dryer |
|
- | |||||
| 23 | 341141 | Control, Electronic |
|
- | |||||
| 23 | 351296 | Receptacle, (door Switch) |
|
- | |||||
| 24 | 7111P002-60 | Clamp, Harness (Replaces: 3390604) |
|
- | |||||
| 25 | W10134185 | Clip, Harness (2) (Replaces: 3390422) |
|
- | |||||
| 26 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3387058) |
|
$ 7.04 | |||||
| 27 | WP681414 | Screw, Ground (Replaces: 697775) |
|
Immediately | $ 7.07 | ||||
| 28 | 661513 | Control |
|
- | |||||
| 29 | 3389465 | End Cap (lh) (almond) |
|
- | |||||
| 29 | 3389464 | End Cap-left Hand (white) |
|
$ 26.75 |
