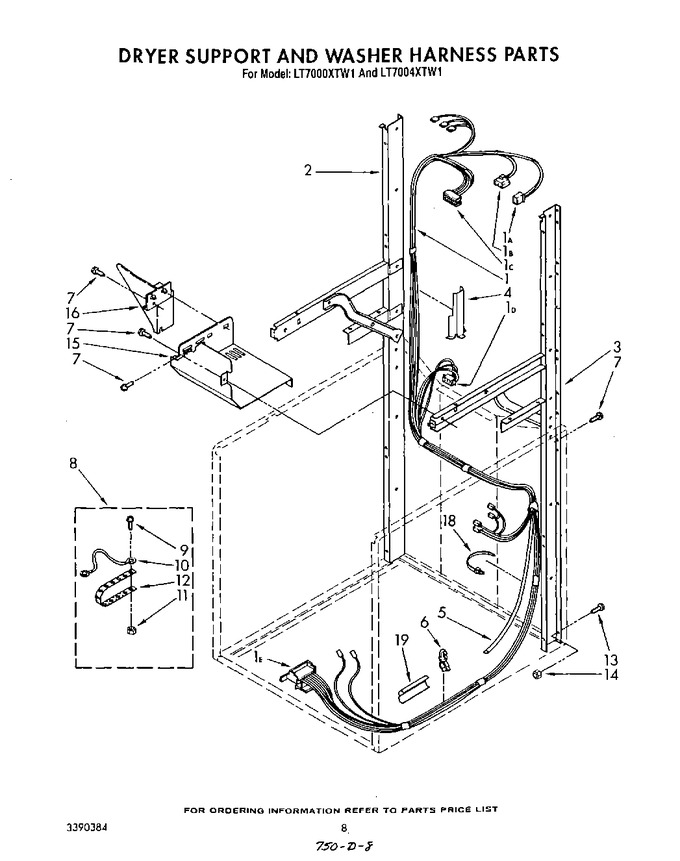

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP62505		Block, Disconnect (uses Terminal 352088)   (Replaces: 62505)				$ 21.35
1	W10876590		Block, Disconnect - Timer (uses Terminal 352088)   (Replaces: 352089)				$ 11.48
1	3391920		Harness - Washer		Appelez-nous	-
1	3350130		Plug, 3 Way (uses Terminal 94614)				$ 11.72
1	3347243		Connector, 5 Way (uses Terminal 352088)		Appelez-nous	-
1	3350211		Receptacle, 3 Way (uses Terminal 94614)		Appelez-nous	-
2	3388851		Channel Assembly (left Hand Side)				$ 288.73
3	3388850		Channel Assembly (right Hand Side)				$ 289.31
4	3390609		Shield, Harness		Appelez-nous	-
5	W10834213		Hose, Pressure Switch   (Replaces: 3350124)			Immediately	$ 28.51
6	3390496		Clip, Harness		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 697775)			Immediately	$ 7.07
8	685463		Kit, Wire Grounding		Appelez-nous	-
9	132848		Screw, 10-24 X 1		Appelez-nous	-
10	685449		Wire		Appelez-nous	-
11	W10080180		Nut, Hex   (Replaces: 120361)				$ 12.13
12	22965		Strap, Grounding		Appelez-nous	-
13	9415810		Bolt, 5/16-18 X 1/2 (4)		Appelez-nous	-
14	90984		Nut, Hex (4)   (Replaces: 9413447)		Appelez-nous	-
15	W11108181		Shield, Front   (Replaces: 3390607)				$ 64.83
16	3390336		Shield, Thermostat		Appelez-nous	-
18	3391249		Clip, Harness (2)		Appelez-nous	-
19	63523		Protector, Harness				$ 169.95
