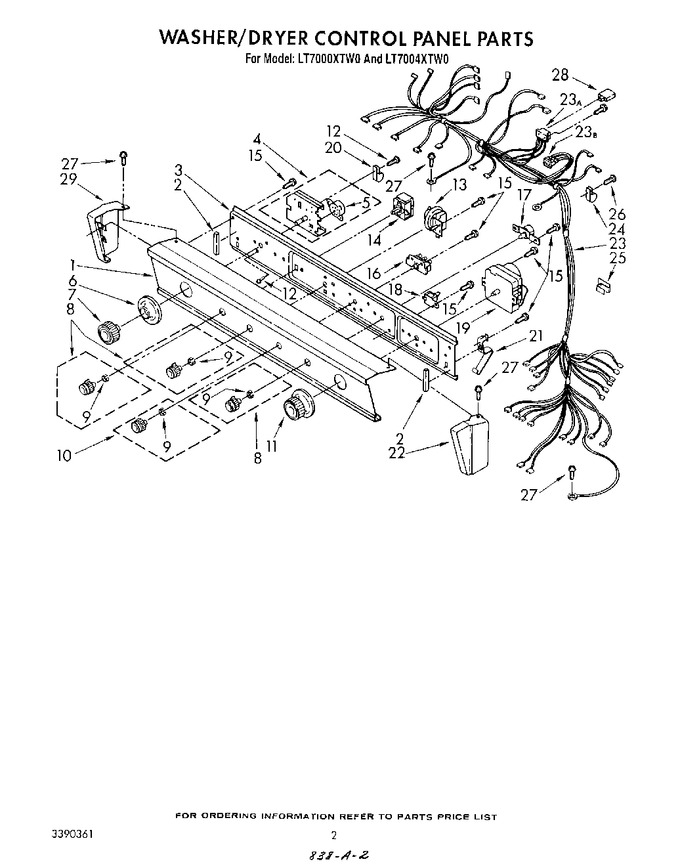

02 - Washer/dryer Control Panel


03 - Dryer Front Panel And Door


04 - Dryer Cabinet And Motor


05 - Dryer Bulkhead


06 - Dryer Support And Washer Harness


07 - Washer Top And Lid


08 - Washer Cabinet


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Machine Base


11 - Agitator, Basket And Tub


12 - Gearcase


13 - Brake And Drive Tube


14 - Washer Water System


15 - Miscellaneous , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3390081		Panel, Control		Appelez-nous	-
2	3390688		Spacer- Foam Pad (2)				$ 8.13
3	3389533		Bracket, Control (includes Illus. 2)		Appelez-nous	-
4	WP3351744		Timer, Washer   (Replaces: 3351744)			Immediately	$ 250.18
5	63493		Motor, Timer		Appelez-nous	-
6	3388183		Skirt, Timer Knob (washer)		Appelez-nous	-
7	3350566		Knob, Timer (washer)		Appelez-nous	-
8	696346		Knob, Control (3)		Appelez-nous	-
9	WP688805		Clip, Spring (3)   (Replaces: 688805)			Immediately	$ 7.03
10	3388562		Knob, Push To Start		Appelez-nous	-
11	696354		Knob, Timer (dryer)		Appelez-nous	-
12	WP356418		Screw   (Replaces: 96435)				$ 7.13
13	3348819		Switch, Pressure		Appelez-nous	-
14	661535		Switch, Temperature		Appelez-nous	-
15	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3391382)				$ 7.04
16	693169		Switch, Push-to-start		Appelez-nous	-
17	696321		Control, Varible Temperature		Appelez-nous	-
18	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
19	3391377CP		Timer, Dryer   (Replaces: 3391377)		Appelez-nous	-
20	488946		Clamp   (Replaces: 255565)				$ 18.41
21	3389453		Bracket, Hinge (2)				$ 78.06
22	3389457		End Cap-right Hand (almond)		Appelez-nous	-
22	3389458		End Cap-right Hand (toast)		Appelez-nous	-
22	3389459		End Cap-right Hand (platinum)		Appelez-nous	-
22	3389456		End Cap-right Hand (white)				$ 40.11
22	3389460		End Cap-right Hand (golden Wheat)		Appelez-nous	-
23	3391933		Harness - Dryer		Appelez-nous	-
24	7111P002-60		Clamp, Harness   (Replaces: 3390604)		Appelez-nous	-
25	W10134185		Clip, Harness (2)   (Replaces: 3390422)		Appelez-nous	-
26	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3387058)				$ 7.04
27	WP681414		Screw, Ground   (Replaces: 697775)			Immediately	$ 7.07
28	661513		Control		Appelez-nous	-
29	3389468		End Cap-left Hand (golden Wheat)		Appelez-nous	-
29	3389464		End Cap-left Hand (white)				$ 26.75
29	3389465		End Cap (lh) (almond)		Appelez-nous	-
29	3389466		End Cap-left Hand (toast)		Appelez-nous	-
29	3389467		End Cap-left Hand (platinum)		Appelez-nous	-
23A	341141		Control, Electronic		Appelez-nous	-
23B	WP62889		Receptacle, Power (washer)   (Replaces: 62889)				$ 6.88
