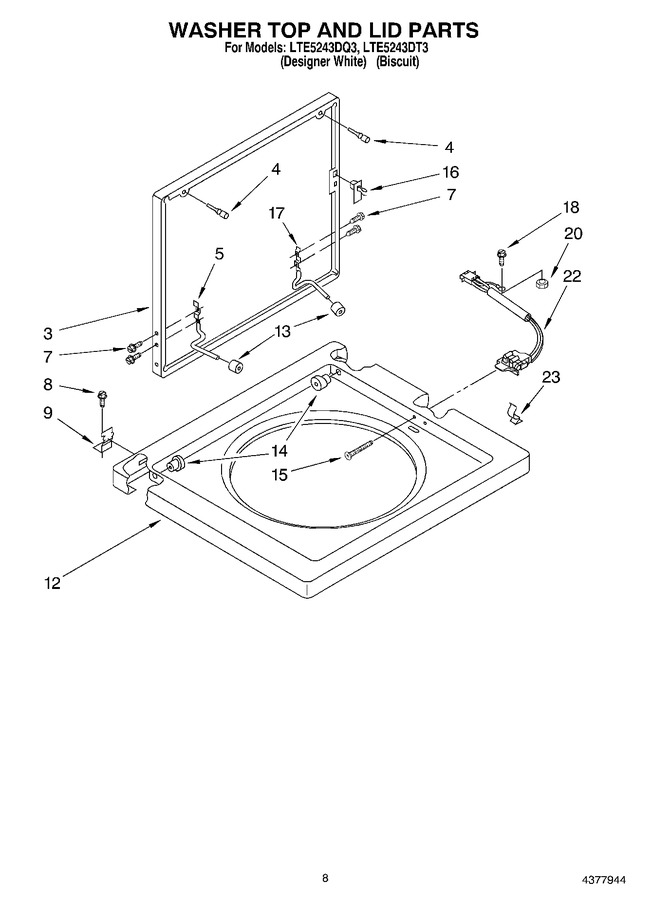

06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Tub And Basket


11 - Washer Water System


12 - Gearcase


13 - Brake And Drive Tube


14 - Product Accessory


15 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WP3398848		Lid (white)   (Replaces: 3398843)				$ 309.89
3	3398849		Lid (biscuit)   (Replaces: 3398847)				$ 103.63
4	80011		Bumper, Lid (2)   (Replaces: 384475)			Immediately	$ 8.98
5	384458		Hinge, Lid (l.h.)				$ 76.11
7	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
8	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
9	WP692985		Clip, Spring (2) (top To Cabinet)   (Replaces: 692985)				$ 6.99
12	WP384693		Top (white)   (Replaces: 384693)				$ 274.65
12	3978593		Top (biscuit)		Appelez-nous	-
13	19119		Bumper, Lid Hinge (2)				$ 5.75
14	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
15	WP3356311		Screw & Washer, Lid Switch Shield (2)   (Replaces: 3356311)				$ 6.98
16	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
17	384459		Hinge, Lid (r.h.)				$ 76.63
18	WP308544		Screw, Ground (10-24 X 1/2)   (Replaces: 3400030)			Immediately	$ 6.98
20	W10080180		Nut, Ground Screw (10-24)   (Replaces: 3400901)				$ 12.13
22	WP3355806		Switch, Lid   (Replaces: 3355806)			Immediately	$ 40.97
23	WP90016		Clip, Harness Routing   (Replaces: 90016)				$ 10.19
