| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP3406108 |
 |
Door Switch (Replaces: 3406108) |
|
|
Immediately |
$ 37.10 |
|
|
| 2 |
WP3395530 |
 |
Screw, 6-20 X 7/8 (Replaces: 697773) |
|
|
|
$ 6.93 |
|
|
| 4 |
3978587 |
|
Panel, Front (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
285314 |
 |
Panel, Front (white) (Replaces: 692619) |
|
|
|
$ 266.36 |
|
|
| 5 |
W11613302 |
 |
Seal, Door (Replaces: 3390734) |
|
|
|
$ 48.27 |
|
|
| 6 |
280077 |
|
Door, Rear (Replaces: 695656) |
|
|
|
$ 177.82 |
|
|
| 7 |
WP348205 |
 |
Door, Front (white) (Replaces: 348205) |
|
|
Immediately |
$ 132.65 |
|
|
| 7 |
3978598 |
|
Door, Front (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
279264 |
 |
Bearing & Seal (Replaces: 8066123) |
|
|
Immediately |
$ 67.07 |
|
|
| 10 |
279220 |
 |
Clip, Felt Pad (2) (Replaces: 685203) |
|
|
|
$ 18.59 |
|
|
| 11 |
279570 |
 |
Strike, Panel (Replaces: 696144) |
|
|
Immediately |
$ 8.00 |
|
|
| 12 |
WP681414 |
 |
Screw, Door Switch Mounting (2) (Replaces: 3390663) |
|
|
Immediately |
$ 7.07 |
|
|
| 13 |
WP681414 |
|
Screw, 10-16 X 1/2 (2) (front Panel To Side Panel) (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 14 |
WP3389441 |
 |
Catch, Door (Replaces: 3389441) |
|
|
Immediately |
$ 5.58 |
|
|
| 15 |
3978592 |
|
Handle, Door (biscuit) |
|
|
|
$ 60.92 |
|
|
| 15 |
WP686711 |
 |
Handle, Door (white) (Replaces: 686711) |
|
|
Immediately |
$ 7.16 |
|
|
| 19 |
WP694091 |
 |
Screw, Door Mount To Hinge & Panel (10) (Replaces: 694091) |
|
|
|
$ 6.47 |
|
|
| 20 |
WP348023 |
 |
Hinge & Pin, Door (2) (Replaces: 348023) |
|
|
|
$ 7.58 |
|
|

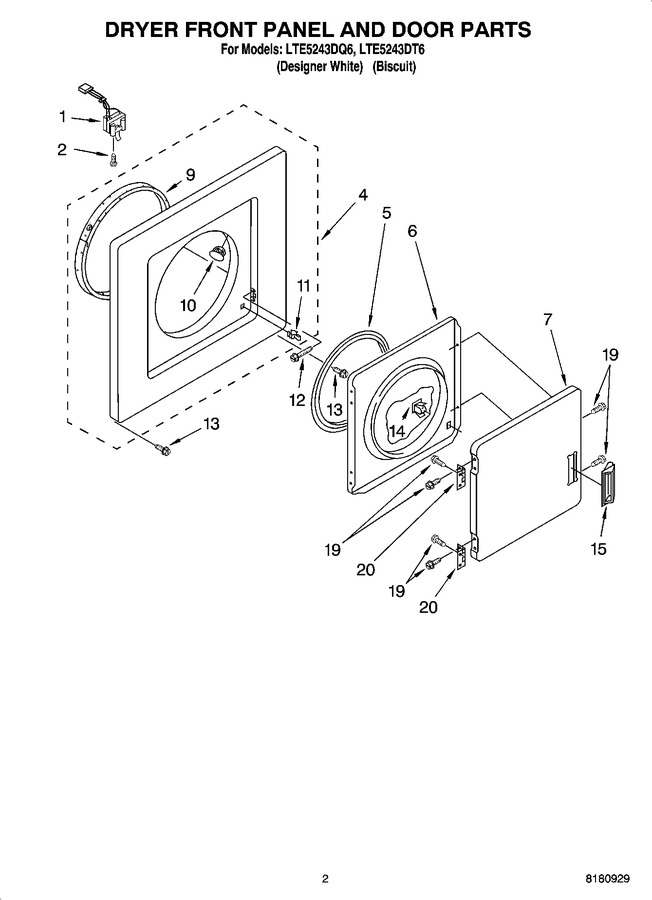

View Diagram in Separate Window
Print Part List
