| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
694304 |
|
Cover, Channel |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11174025 |
|
Support, Dryer (l.h.) (Replaces: 692647) |
|
|
|
$ 45.83 |
|
|
| 3 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 4 |
W11676450 |
|
Screw, 10-24 X 3/8 (8) (washer Cabinet To Dryer Supports) (Replaces: 3400000) |
|
|
|
$ 12.65 |
|
|
| 5 |
W11174024 |
|
Support, Dryer (r.h.) (Replaces: 692646) |
|
|
|
$ 117.52 |
|
|
| 6 |
3957867 |
|
Harness, Lower (automatic) (includes Illus. 6a, 6b & 6c) |
|
|
|
$ 243.62 |
|
|
| 7 |
8528351 |
|
Clip, Wiring Harness (4) (Replaces: 3347812) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
8559320 |
|
Clip (Replaces: 3352501) |
|
|
|
$ 41.27 |
|
|
| 9 |
WP90016 |
 |
Clip, Pressure Switch Hose (2) (Replaces: 90016) |
|
|
|
$ 10.19 |
|
|
| 10 |
693141 |
|
Clip, Harness And Hose |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP3351614 |
 |
Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
|
Immediately |
$ 6.26 |
|
|
| 12 |
WP353244 |
 |
Hose, Pressure Switch (Replaces: 8066080) |
|
|
Immediately |
$ 53.94 |
|
|
| 6A |
696074 |
|
Plug, Terminal (12-way) (connects With Automatic Console Harness) |
|
Appelez-nous
|
- |
|
|
|
| 6B |
WP62889 |
 |
Plug, Terminal (3-way) (connects With Automatic Lid Switch Harness) (Replaces: 62889) |
|
|
|
$ 6.88 |
|
|
| 6C |
WP62505 |
 |
Block, Disconnect (connects With Automatic Washer Motor) (Replaces: 62505) |
|
|
|
$ 21.35 |
|
|

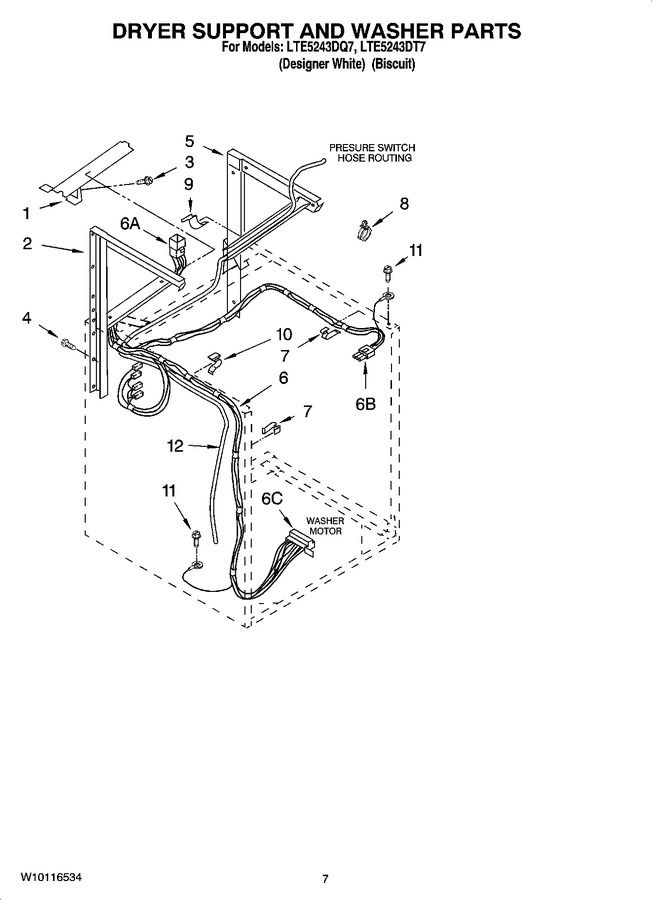

View Diagram in Separate Window
