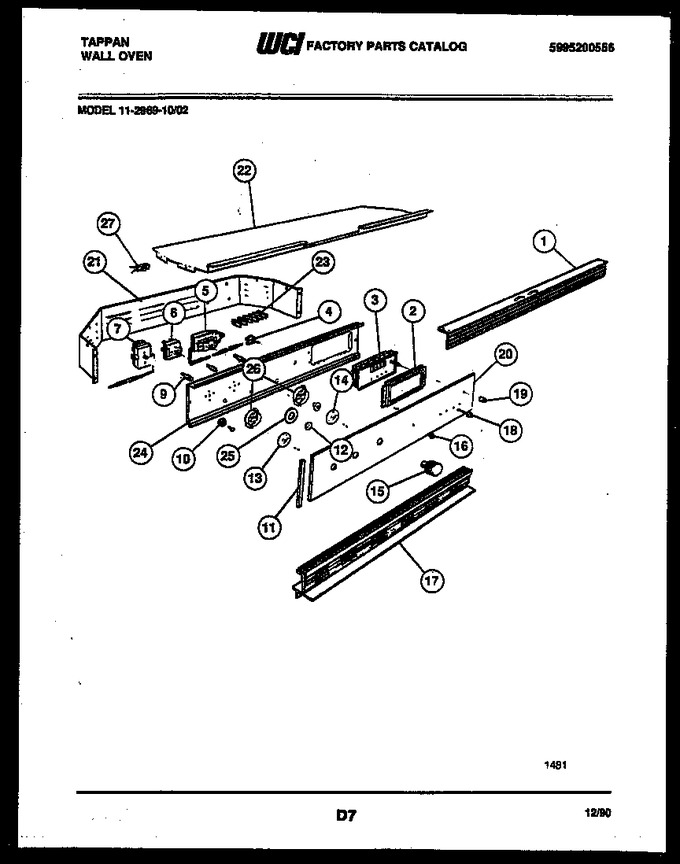

06 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203897 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202196 | Switch-light |
|
- | |||||
| 5 | 3202198 | Thermostat (lower) |
|
- | |||||
| 6 | 3202197 | Switch, Selector |
|
- | |||||
| 7 | 5303206499 | Thermostat S/c-upper |
|
- | |||||
| 9 | 3202194 | Light-ind. (2) Oven |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim-cont Panel Glass (2) |
|
- | |||||
| 12 | 3203884 | Spacer-sel. Sw. |
|
- | |||||
| 13 | 3202175 | Dial-therm S/c |
|
- | |||||
| 14 | 3202173 | Dial-therm Reg. |
|
- | |||||
| 15 | 3202178 | Knob (3) |
|
- | |||||
| 16 | 5303016305 | Bezel - Switch |
|
- | |||||
| 17 | 3202416 | Trim-center Vent |
|
- | |||||
| 18 | 3131730 | Button-clock (4) |
|
- | |||||
| 19 | 5303016292 | Knob-clock |
|
- | |||||
| 20 | 3204181 | Glass-cont. Panel |
|
- | |||||
| 21 | 3202418 | Housing-control |
|
- | |||||
| 22 | 3202417 | Cover-cont Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3203714 | Plate-instrument Mtg. |
|
- | |||||
| 25 | 3202174 | Dial-sel. Sw. |
|
- | |||||
| 26 | 3202191 | Lamp Assy.-dial (3) |
|
- | |||||
| 27 | 318003605 | Switch-thermal Cutoff (Replaces: 3202388) |
|
$ 178.61 | |||||
| *43809 | 3203711 | Sleeve-ind. Lt. (4) |
|
- | |||||
| 9A | 3202193 | Light-ind Clean |
|
- | |||||
| 9B | 3202195 | Light-ind Lock |
|
- |
