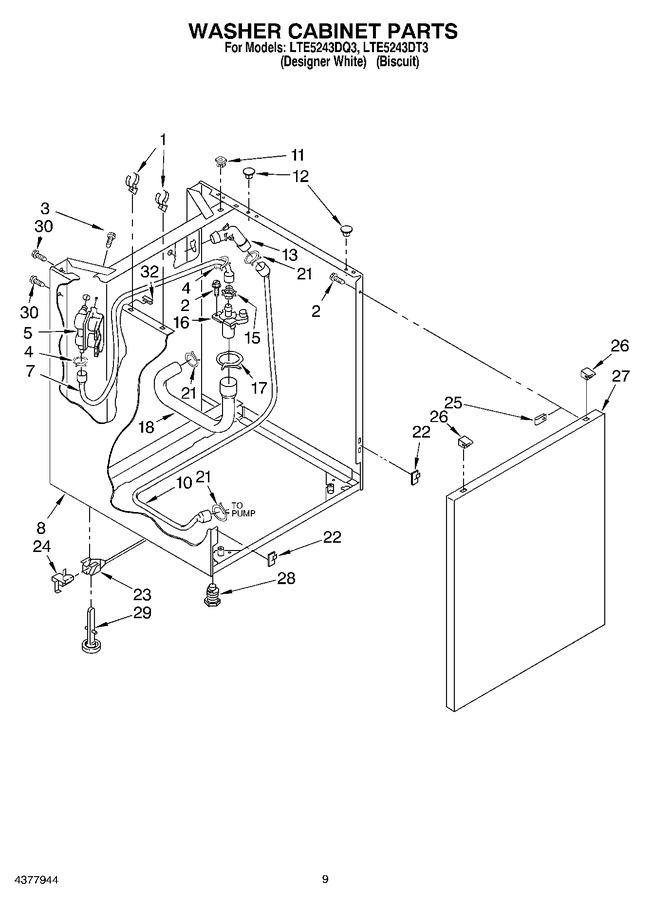

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 356746 | Clip, Condenser |
|
$ 19.03 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP9740848 | Screw, Mixing Valve Mounting (8-18 X 1/2) (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 4 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 5 | 285805 | Valve, Water Mixing (Replaces: 3952163) |
|
Immediately | $ 49.57 | ||||
| 7 | WP692699 | Hose, Water Inlet (siphon Break To Mixing Valve) (Replaces: 692699) |
|
$ 31.45 | |||||
| 8 | 3978594 | Cabinet (biscuit) |
|
- | |||||
| 8 | 696013 | Cabinet (white) |
|
$ 323.70 | |||||
| 10 | WP696710 | Hose, Drain (Replaces: 696710) |
|
$ 40.91 | |||||
| 11 | WP692400 | Nut, Push-in (2) (Replaces: 692400) |
|
Immediately | $ 6.88 | ||||
| 12 | WP660975 | Plug, Top To Cabinet (Replaces: 660975) |
|
$ 6.79 | |||||
| 13 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 63.54 | |||||
| 15 | WP356471 | Cap, Siphon Break (Replaces: 356471) |
|
$ 6.98 | |||||
| 16 | WP356363 | Siphon Break (Replaces: 356363) |
|
Immediately | $ 7.19 | ||||
| 17 | WP616099 | Clamp, Hose (Replaces: 272861) |
|
Immediately | $ 7.03 | ||||
| 18 | WP696394 | Hose, Water Inlet (siphon Break To Tub Ring) (Replaces: 696394) |
|
$ 96.60 | |||||
| 21 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 7.55 | ||||
| 22 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 23 | WP358652 | Link, Leveling (Replaces: 358652) |
|
$ 76.69 | |||||
| 24 | WP359364 | Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
Immediately | $ 7.06 | ||||
| 25 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 26 | WP345670 | Lock, Top (2) (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 27 | 3978596 | Panel, Front (biscuit) |
|
- | |||||
| 27 | 692628 | Panel, Front (white) |
|
$ 147.82 | |||||
| 28 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 29 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 30 | W11676450 | Screw, 10-24 X 3/8 (washer Cabinet To Dryer Supports) (Replaces: 3400000) |
|
$ 12.65 | |||||
| 32 | 3390046 | Protector, Edge |
|
$ 8.51 |
