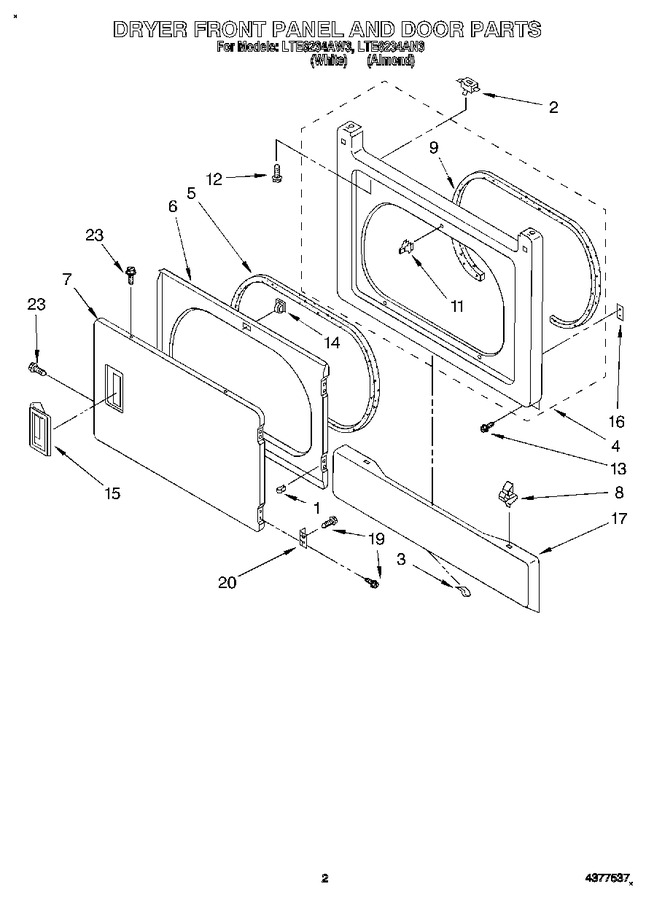

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3389249		Nut, Push (4)		Appelez-nous	-
2	WP3391902		Switch, Door   (Replaces: 3391901)			Immediately	$ 53.86
3	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.25
4	3392548		Panel, Front (almond)		Appelez-nous	-
4	279718		Panel, Front (white)   (Replaces: 3392547)				$ 349.15
5	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
6	280083		Door, Rear   (Replaces: 3392563)				$ 258.32
7	3387873		Door, Front (almond)		Appelez-nous	-
7	W11663440		Door, Front (white)   (Replaces: 3387872)				$ 233.43
8	WP3388229		Retainer, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 7.61
9	WP3387242		Bearing & Seal   (Replaces: 3387242)			Immediately	$ 28.28
11	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.00
12	WP3395530		Screw, Door Switch Mounting (2)   (Replaces: 697773)				$ 6.93
13	WP308685		Screw, 10-16 X 1/2 (2) (front Panel To Side Panel)   (Replaces: 3393008)			Immediately	$ 7.08
14	279570		Catch, Door   (Replaces: 3392538)			Immediately	$ 8.00
15	3389523		Handle, Door (almond)		Appelez-nous	-
15	3389522		Handle, Door (white)				$ 70.11
16	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 10.00
17	3388959		Panel, Toe (almond)		Appelez-nous	-
17	3388958		Panel, Toe (white)				$ 118.94
19	WP488627		Screw   (Replaces: 342055)				$ 6.81
20	W11175815		Hinge & Pin, Door (2)   (Replaces: 3389247)				$ 73.27
23	WP694091		Screw, (door Handle)   (Replaces: 694091)				$ 6.47

    View Diagram in Separate Window       Print Part List
