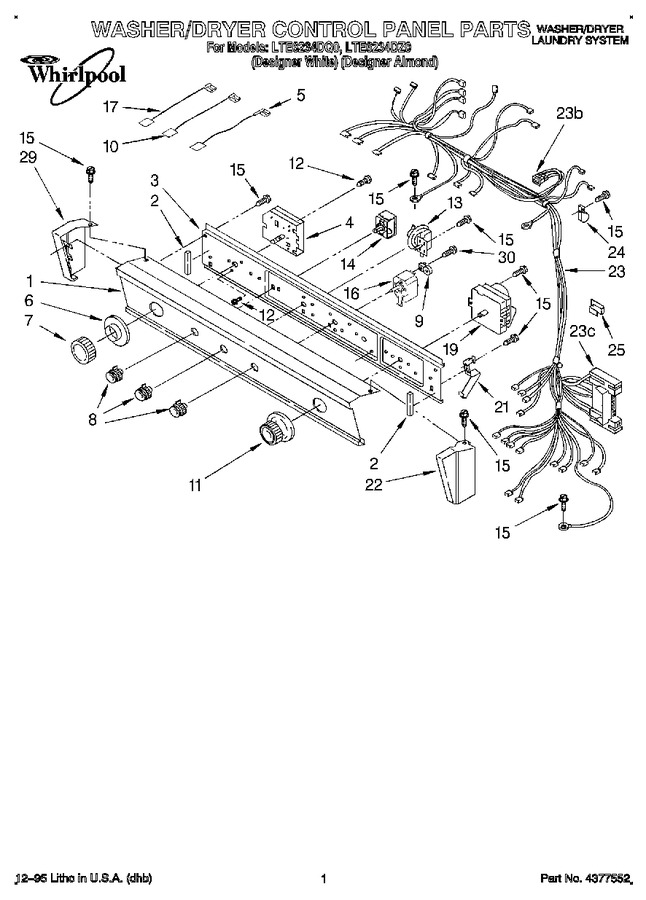

01 - Washer/dryer Control Panel


02 - Dryer Front Panel And Door


03 - Dryer Cabinet And Motor


04 - Dryer Bulkhead


05 - Dryer Support And Washer Harness


06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Agitator, Basket And Tub


11 - Gearcase


12 - Brake And Drive Tube


13 - Washer Water System


14 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3396689		Panel, Control (white)		Appelez-nous	-
1	3396690		Panel, Control (almond)		Appelez-nous	-
2	3390688		Spacer- Foam Pad (2)				$ 8.13
3	3390689		Bracket, Control (includes Illus. 2)		Appelez-nous	-
4	WP3948357		Timer, Washer   (Replaces: 3948357)			Immediately	$ 285.44
5	3401674		Jumper, Timer Buzzer				$ 34.37
6	3403097		Dial (washer) (white)		Appelez-nous	-
6	3403098		Dial (washer) (almond)		Appelez-nous	-
7	WP3364293		Knob, Timer (washer) (almond)   (Replaces: 3364293)			Immediately	$ 53.51
7	WP3364293		Knob, Timer (washer) (white)   (Replaces: 3364291)			Immediately	$ 53.51
8	3950760		Knob, Control (3) (almond)   (Replaces: 3358436)		Appelez-nous	-
8	WP3957796		Knob, Control (3) (white)   (Replaces: 3358435)			Immediately	$ 49.35
9	279872		Resistor   (Replaces: 3388706)				$ 67.45
10	3401684		Jumper, Wire				$ 34.57
11	WP3957750		Knob, Timer (dryer) (almond)   (Replaces: 3396151)			Immediately	$ 53.04
11	WP3957750		Knob, Timer (dryer) (white)   (Replaces: 3396150)			Immediately	$ 53.04
12	WP356418		Screw   (Replaces: 96435)				$ 7.13
13	3360910		Switch, Pressure		Appelez-nous	-
14	3348352		Switch, Temperature		Appelez-nous	-
15	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.04
16	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 98.66
17	3393810		Jumper Wire		Appelez-nous	-
19	WP3976569		Timer, Dryer   (Replaces: 3393934)			Immediately	$ 301.94
21	3389453		Bracket, Hinge (2)				$ 78.06
22	3389457		End Cap-right Hand (almond)		Appelez-nous	-
22	3389456		End Cap-right Hand (white)				$ 40.11
23	3398980		Harness - Dryer		Appelez-nous	-
24	7111P002-60		Clamp, Harness   (Replaces: 3390604)		Appelez-nous	-
25	W10134185		Clip, Harness (2)   (Replaces: 3390422)		Appelez-nous	-
29	3389464		End Cap-left Hand (white)				$ 26.75
29	3389465		End Cap (lh) (almond)		Appelez-nous	-
30	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.07
23B	WP62889		Receptacle, Power (washer)   (Replaces: 62889)				$ 6.88
23C	3395683		Connector (motor-dryer)			Immediately	$ 46.67
