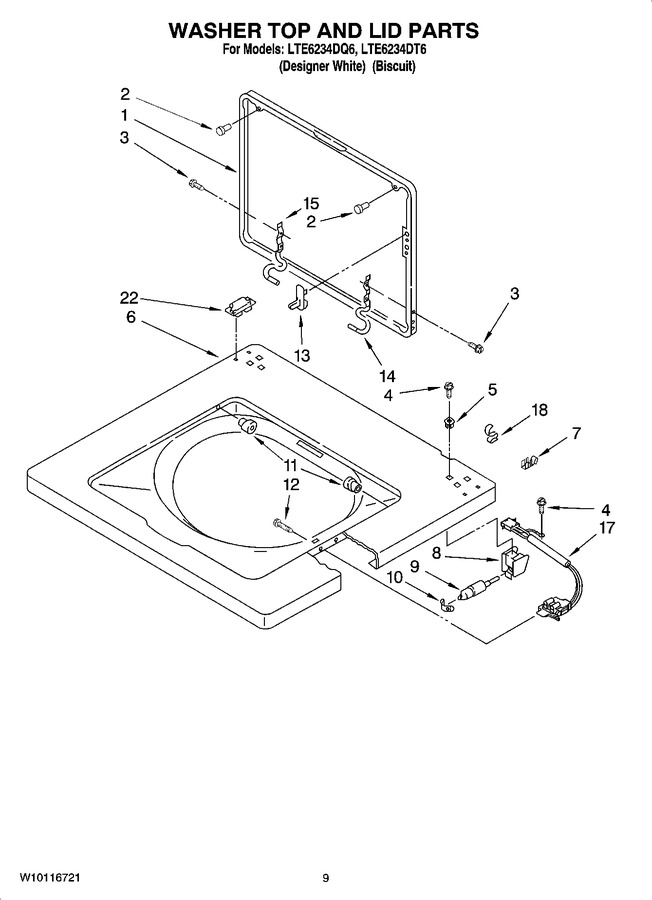

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3351652		Lid (white)		Appelez-nous	-
1	3351666		Lid (biscuit)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.14
3	WPW10119828		Screw And Washer   (Replaces: 3351355)			Immediately	$ 6.47
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
5	WP692400		Nut, Push-in (2)   (Replaces: 692400)			Immediately	$ 6.88
6	3349798		Top (white)		Appelez-nous	-
6	3349803		Top (biscuit)		Appelez-nous	-
7	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
8	3354020		Bracket, Mounting				$ 8.57
9	WP3350152		Lid Retainer   (Replaces: 3350152)				$ 40.23
10	3350828		Clip				$ 57.81
11	WP21258		Hinge, Bearing (2)   (Replaces: 21258)			Immediately	$ 6.87
12	WP3356311		Screw And Washer   (Replaces: 3356311)				$ 6.98
13	WP358684		Strike, Lid   (Replaces: 358684)			Immediately	$ 6.90
14	3350101		Hinge, R.h.				$ 30.10
15	3350102		Hinge, L.h.				$ 30.83
17	WP3355458		Switch, Lid   (Replaces: 3355458)			Immediately	$ 66.38
18	WP90016		Clip, Wire (4)   (Replaces: 90016)				$ 10.19
22	W11116924		Locator, Top   (Replaces: 3390481)				$ 19.50

    View Diagram in Separate Window       Print Part List
