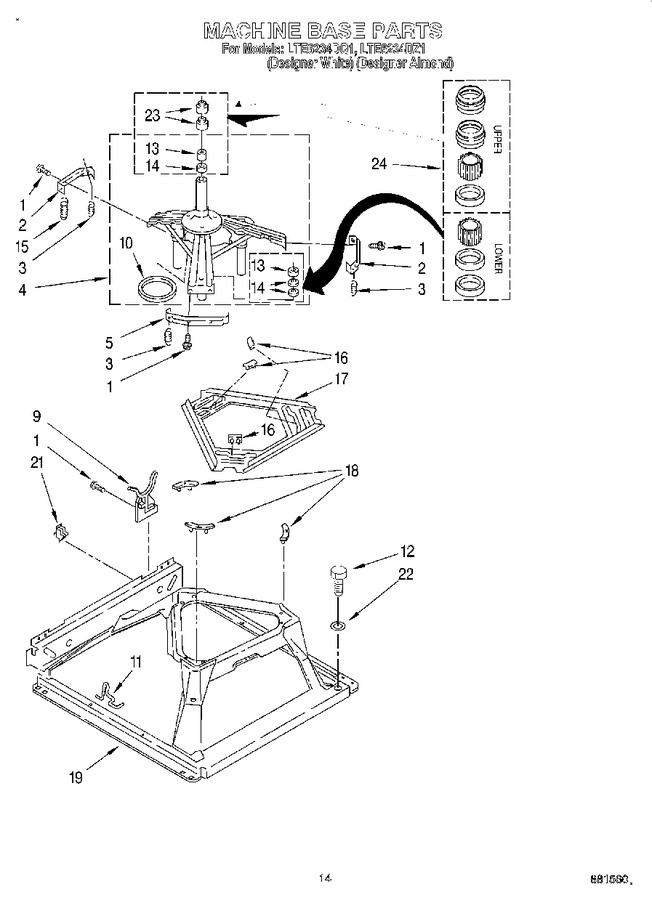

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, Bracket Mounting (10-16 X 1/2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 2 | WP64067 | Bracket, Spring Outer (2) (Replaces: 64067) |
|
Immediately | $ 7.88 | ||||
| 3 | WP63907 | Spring Suspension,(3) (Replaces: 63907) |
|
Immediately | $ 7.97 | ||||
| 4 | 3362087 | Support & Brake, Tub |
|
- | |||||
| 5 | 100092723 | Bracket, Spring Outer (l.f.) (Replaces: 64065) |
|
$ 416.82 | |||||
| 9 | 3350506 | Retainer, Hose |
|
$ 12.02 | |||||
| 10 | WP63134 | Ring, Sound Deadening (Replaces: 63134) |
|
$ 7.35 | |||||
| 11 | WPW10145155 | Retainer, Suspension Spring (Replaces: 63806) |
|
Immediately | $ 4.51 | ||||
| 12 | 3400502 | Screw, Shoulder (2) |
|
- | |||||
| 13 | WP8546455 | Bearing, Centerpost (2) (Replaces: 3347047) |
|
Immediately | $ 25.16 | ||||
| 14 | W11095997 | Seal, Centerpost (3) (Replaces: 357409) |
|
Immediately | $ 20.07 | ||||
| 15 | WPW10250667 | Spring, Counterweight (Replaces: 388492) |
|
Immediately | $ 8.63 | ||||
| 16 | 285219 | Pad, Plate (Replaces: 62568) |
|
Immediately | $ 20.19 | ||||
| 17 | WP3946509 | Plate, Suspension (includes Illus. 16) (Replaces: 3946509) |
|
$ 181.19 | |||||
| 18 | 285744 | Pad, Base (Replaces: 3363660) |
|
Immediately | $ 16.47 | ||||
| 19 | 3349343 | Base Assembly (includes Illus. 11 & 18) |
|
$ 223.97 | |||||
| 21 | 3349749 | Restrainer, Base |
|
$ 11.17 | |||||
| 22 | 3349340 | Washer (2) |
|
$ 8.12 | |||||
| 23 | WP8577376 | Seal, Centerpost (2) (Replaces: 356934) |
|
Immediately | $ 6.47 | ||||
| 24 | 285203 | Centerpost Bearing Kit (includes Illus. 13, 14 & 23) |
|
Immediately | $ 94.46 |
