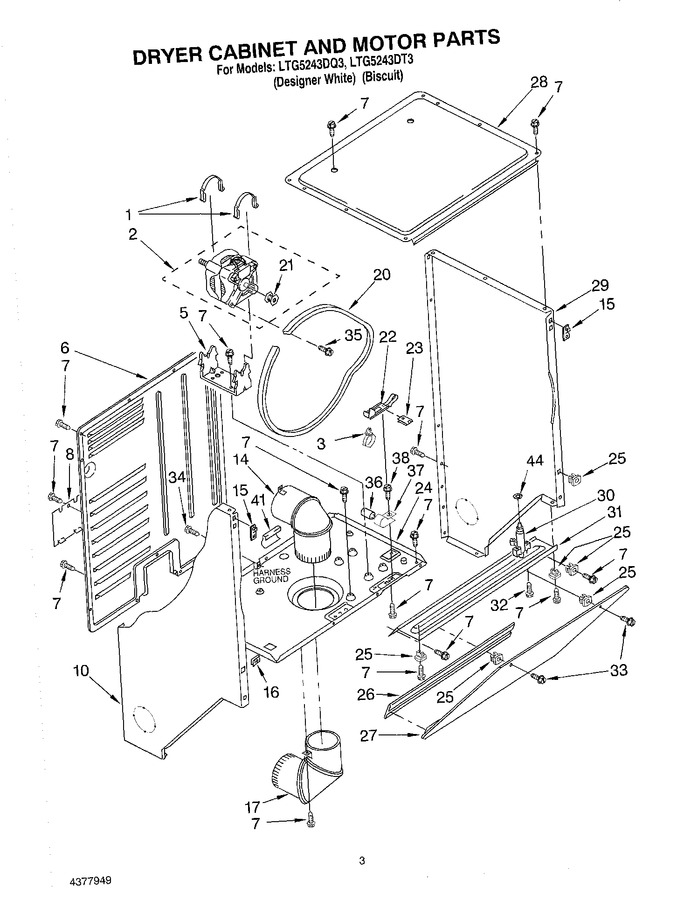

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP660658 | Clamp, Motor Mounting (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 2 | WPW10448901 | Motor, Main Drive (60 Hz.) (Replaces: 8066068) |
|
Immediately | $ 294.14 | ||||
| 3 | 8559320 | Clip (Replaces: 3405028) |
|
$ 41.27 | |||||
| 5 | 696541 | Bracket, Motor |
|
$ 83.88 | |||||
| 6 | 3390405 | Panel, Rear |
|
- | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | WP3394228 | Cover, Terminal Block (Replaces: 3394228) |
|
$ 73.50 | |||||
| 10 | 3978589 | Panel, Side (l.h.) (biscuit) |
|
- | |||||
| 10 | WP3402293 | Panel, Side (l.h.) (white) (Replaces: 3402293) |
|
$ 313.14 | |||||
| 14 | 3399602 | Elbow, Upper |
|
- | |||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 16 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 17 | 3399603 | Elbow, Lower |
|
- | |||||
| 20 | 3394652 | Belt, Drive (Replaces: 8066064) |
|
Immediately | $ 47.09 | ||||
| 21 | 8066051 | Pulley, Motor (60 Hz.) |
|
$ 101.81 | |||||
| 22 | WP691366 | Idler & Slide Assembly (Replaces: 3394332) |
|
Immediately | $ 20.22 | ||||
| 23 | WP692771 | Nut, Idler Bracket To Base (Replaces: 692771) |
|
$ 7.16 | |||||
| 24 | 3399633 | Base, Dryer |
|
- | |||||
| 25 | WP692400 | Nut, Push-in (Replaces: 692400) |
|
Immediately | $ 6.88 | ||||
| 26 | WP692926 | Cove, Transition Panel (black) (Replaces: 692926) |
|
$ 80.30 | |||||
| 27 | 3978591 | Panel, Transition (biscuit) |
|
- | |||||
| 27 | 692933 | Panel, Transition (white) |
|
$ 199.04 | |||||
| 28 | WP692641 | Top, Dryer (Replaces: 692641) |
|
$ 231.87 | |||||
| 29 | 3978590 | Panel, Side (r.h.) (biscuit) |
|
- | |||||
| 29 | WP3402287 | Panel, Side (r.h.) (white) (Replaces: 3402287) |
|
$ 314.06 | |||||
| 30 | WP693145 | Latch, Lid (Replaces: 693145) |
|
$ 76.65 | |||||
| 31 | WP692781 | Closure, Control Area (white) (Replaces: 692781) |
|
$ 158.75 | |||||
| 31 | 3978599 | Closure, Control Area (biscuit) |
|
- | |||||
| 32 | 354975 | Screw & Washer (3) (lid Latch Mounting) |
|
- | |||||
| 33 | WP693304 | Screw & Washer (2) (transition Panel To Closure) (Replaces: 693304) |
|
$ 7.04 | |||||
| 34 | W10850756 | Screw, Ground (10-32 X 5/8) (Replaces: 697776) |
|
$ 6.98 | |||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.04 | |||||
| 36 | WP8572717 | Capacitor, Motor Start (automatic Washer) (Replaces: 661606) |
|
Immediately | $ 72.13 | ||||
| 37 | 357030 | Clamp, Capacitor |
|
$ 18.98 | |||||
| 38 | WP681414 | Screw, Capacitor Mounting (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 41 | 686770 | Edge, Protector |
|
- | |||||
| 44 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 |
