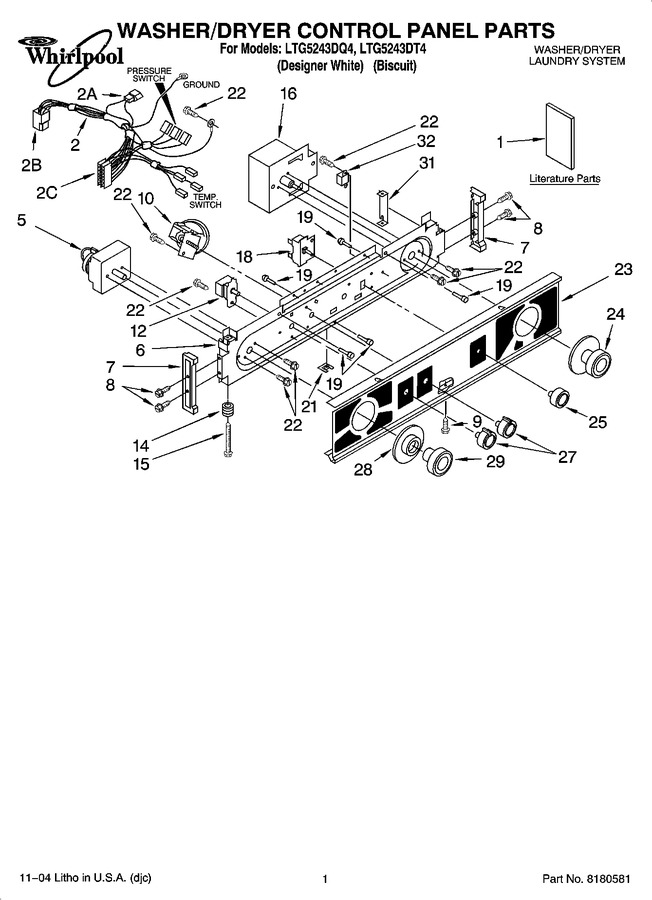

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
3952875 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
| 1 |
3954159 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
8562591 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 1 |
3406880 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
8542754 |
|
Sheet, Cycle Feature |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3948614 |
|
Disconnect Block (connects With Automatic Timer) |
|
|
|
$ 20.08 |
|
|
| 2 |
696073 |
|
Receptacle, Connector (connects With Lower Automatic Harness) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3350130 |
|
Plug, Terminal (2-way) (connects With Main Dryer Harness) |
|
|
|
$ 11.72 |
|
|
| 2 |
WP3406288 |
 |
Harness, Console Wiring (automatic) (includes Illus. 2a, 2b & 2c) (Replaces: 3406288) |
|
|
|
$ 198.52 |
|
|
| 5 |
WP3952499 |
 |
Timer, Control (60 Hz.) (automatic Washer) (Replaces: 3952499) |
|
|
Immediately |
$ 292.22 |
|
|
| 6 |
8528154 |
|
Bracket, Control |
|
Appelez-nous
|
- |
|
|
|
| 7 |
692993 |
|
End Cap, Console (l.h. & R.h.) (white) |
|
|
|
$ 34.71 |
|
|
| 7 |
3978584 |
|
End Cap, Console (l.h. & R.h.) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
348689 |
|
Screw 8-18 X 3/4 |
|
|
|
$ 66.92 |
|
|
| 9 |
WP694091 |
 |
Screw, 8-18 X 3/8 (Replaces: 694091) |
|
|
|
$ 6.47 |
|
|
| 10 |
WP3362987 |
 |
Switch, Water Level (Replaces: 3362987) |
|
|
Immediately |
$ 161.01 |
|
|
| 12 |
WP8054142 |
 |
Switch, Water Temperature (Replaces: 8054142) |
|
|
Immediately |
$ 120.00 |
|
|
| 14 |
WP693151 |
 |
Spring, Console Lock (2) (Replaces: 693151) |
|
|
|
$ 6.72 |
|
|
| 15 |
WP3400860 |
|
Screw, Console Lock (2) (Replaces: 3400860) |
|
|
|
$ 9.93 |
|
|
| 16 |
WP3406720 |
 |
Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable) (Replaces: 3406720) |
|
|
Immediately |
$ 282.81 |
|
|
| 18 |
WP3977456 |
 |
Switch, Push-to-start (Replaces: 3977456) |
|
|
Immediately |
$ 23.99 |
|
|
| 19 |
693152 |
|
Bumper, Console (5) |
|
|
|
$ 9.86 |
|
|
| 21 |
694037 |
|
Clip, Console |
|
|
|
$ 74.14 |
|
|
| 22 |
WPW10139210 |
|
Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
|
|
$ 6.75 |
|
|
| 23 |
3977194 |
 |
Panel, Control (white) |
|
|
|
$ 250.35 |
|
|
| 23 |
3977195 |
|
Panel, Control (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 24 |
3957753 |
|
Knob, Timer (dryer) (biscuit) (Replaces: 3978872) |
|
Appelez-nous
|
- |
|
|
|
| 24 |
WP3957752 |
 |
Knob, Timer (dryer) (white) (Replaces: 3406143) |
|
|
|
$ 48.56 |
|
|
| 25 |
3978871 |
|
Knob, Push-to-start (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WP3957800 |
 |
Knob, Push-to-start (white) (Replaces: 3406133) |
|
|
|
$ 45.36 |
|
|
| 27 |
WP3957796 |
 |
Knob, Control (2) (white) (Replaces: 3950759) |
|
|
Immediately |
$ 49.35 |
|
|
| 27 |
3978873 |
|
Knob, Control (2) (biscuit) |
|
|
|
$ 9.22 |
|
|
| 28 |
3978870 |
|
Dial, Timer (washer) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 28 |
WP3957841 |
 |
Dial, Timer (washer) (white) (Replaces: 3950762) |
|
|
|
$ 40.82 |
|
|
| 29 |
W10807860 |
 |
Knob, Timer (washer) (white) (Replaces: 3951026) |
|
|
Immediately |
$ 44.97 |
|
|
| 29 |
WP3957822 |
 |
Knob, Timer (washer) (biscuit) (Replaces: 3978869) |
|
|
Immediately |
$ 48.07 |
|
|
| 31 |
WP692983 |
 |
Lock, Console (2) (Replaces: 692983) |
|
|
|
$ 76.57 |
|
|
| 32 |
WP694419 |
 |
Buzzer (Replaces: 694419) |
|
|
|
$ 114.90 |
|
|
