| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
3402856 |
|

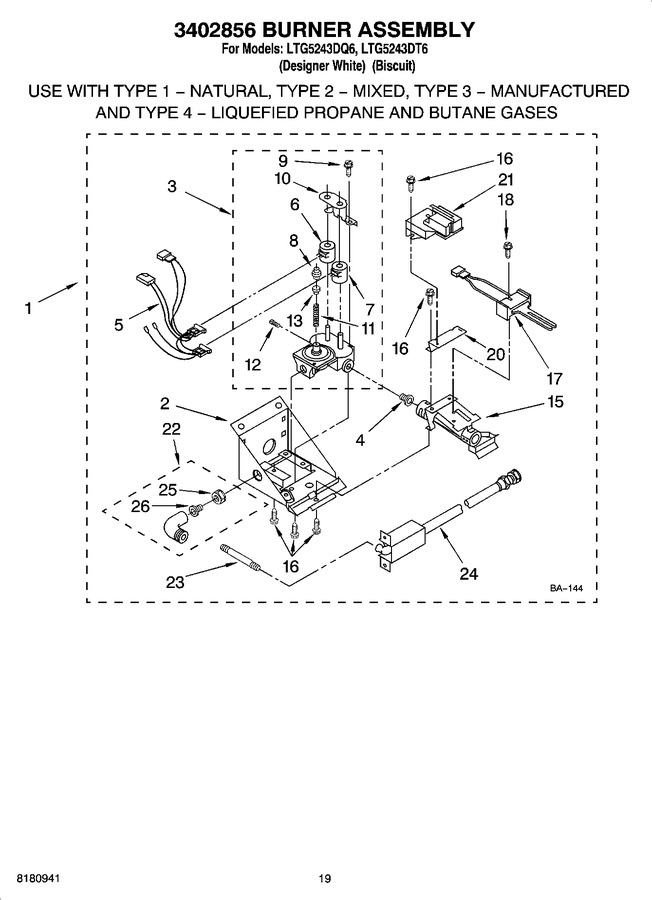

Burner Assembly 60 Hz. |
|
Appelez-nous
|
- |
|
|
|
| 2 |
697408 |
|
Base, Burner |
|
Appelez-nous
|
- |
|
|
|
| 3 |
3401777 |
|
Valve, 60 Hz. |
|
Appelez-nous
|
- |
|
|
|
| 4 |
WP234822 |
 |
Orifice (natural Gas) (Replaces: 234822) |
|
|
|
$ 25.96 |
|
|
| 4 |
WP347743 |
|
Orifice (l.p. Gas) (Replaces: 347743) |
|
|
|
$ 47.67 |
|
|
| 5 |
WP3401849 |
|
Harness (Replaces: 3401849) |
|
|
|
$ 100.30 |
|
|
| 6 |
279834 |
 |
Coil, 60 Hz. (split) (Replaces: 694539) |
|
|
Immediately |
$ 29.57 |
|
|
| 7 |
279834 |
|
Coil, 60 Hz. (Replaces: 694540) |
|
|
Immediately |
$ 29.57 |
|
|
| 8 |
WP694424 |
 |
Leak Limiter (Replaces: 694424) |
|
|
|
$ 31.11 |
|
|
| 9 |
694421 |
|
Screw, 8-32 |
|
Appelez-nous
|
- |
|
|
|
| 10 |
694538 |
|
Bracket, Shunt |
|
|
|
$ 72.05 |
|
|
| 11 |
WP694422 |
 |
Spring, Regulator (Replaces: 694422) |
|
|
|
$ 21.84 |
|
|
| 12 |
W10295523 |
|
Pipe, Plug (Replaces: 239822) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP694423 |
 |
Screw (Replaces: 694423) |
|
|
|
$ 6.26 |
|
|
| 15 |
8578392 |
|
Burner (Replaces: 3392268) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP693995 |
 |
Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
|
Immediately |
$ 6.47 |
|
|
| 17 |
279311 |
 |
Ignitor (Replaces: 686590) |
|
|
Immediately |
$ 71.01 |
|
|
| 18 |
WPW10366705 |
|
Screw And Washer 8-32 X 1 (Replaces: 3393909) |
|
|
|
$ 6.75 |
|
|
| 20 |
697409 |
|
Bracket, Sensor |
|
Appelez-nous
|
- |
|
|
|
| 21 |
WP338906 |
 |
Sensor, Radiant (Replaces: 338906) |
|
|
Immediately |
$ 46.72 |
|
|
| 22 |
3406051 |
 |
Elbow Union Assembly |
|
|
|
$ 90.15 |
|
|
| 23 |
3388638 |
|
Nipple, Short |
|
Appelez-nous
|
- |
|
|
|
| 24 |
3391118 |
|
Supply Line (gas) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
233076 |
|
Nut |
|
|
|
$ 43.19 |
|
|
| 26 |
3393767 |
|
Pipe |
|
|
|
$ 123.97 |
|
|
| 26 |
W10402145 |
 |
Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g. Elbow Union Assembly (Replaces: 49573) |
|
|
|
$ 97.89 |
|
|
|
4392899 |
 |
Paint, Touch-up (1/2oz.) (biscuit) |
|
|
Immediately |
$ 23.81 |
|
|
|
WP285195 |
 |
Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
|
|
$ 93.95 |
|
|
|
4392900 |
|
Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
Appelez-nous
|
- |
|
|
|
|
799344 |
|
Paint, Bulk (1 Qt.) (white) (uncut) |
|
|
|
$ 237.46 |
|
|
|
72017 |
 |
Paint, Touch-up 1/2 Oz. (white) |
|
|
Immediately |
$ 11.07 |
|
|
|
285208 |
|
Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
|
|
$ 41.86 |
|
|
|
350572 |
 |
Oil, Gearcase (16 Oz.) |
|
|
Immediately |
$ 82.45 |
|
|
|
3977784 |
|
Plug, Dryer Side Panel (biscuit) |
|
Appelez-nous
|
- |
|
|
|
|
350930 |
|
Paint, Pressurized Spray (12 Oz.) White |
|
|
Immediately |
$ 34.39 |
|
|
|
350938 |
|
Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
Appelez-nous
|
- |
|
|
|
|
4392901 |
|
Paint, Pressurized Spray (12oz.) (biscuit) |
|
Appelez-nous
|
- |
|
|
|
|
692790 |
 |
Plug, Dryer Side Panel (white) |
|
|
|
$ 73.91 |
|
|
