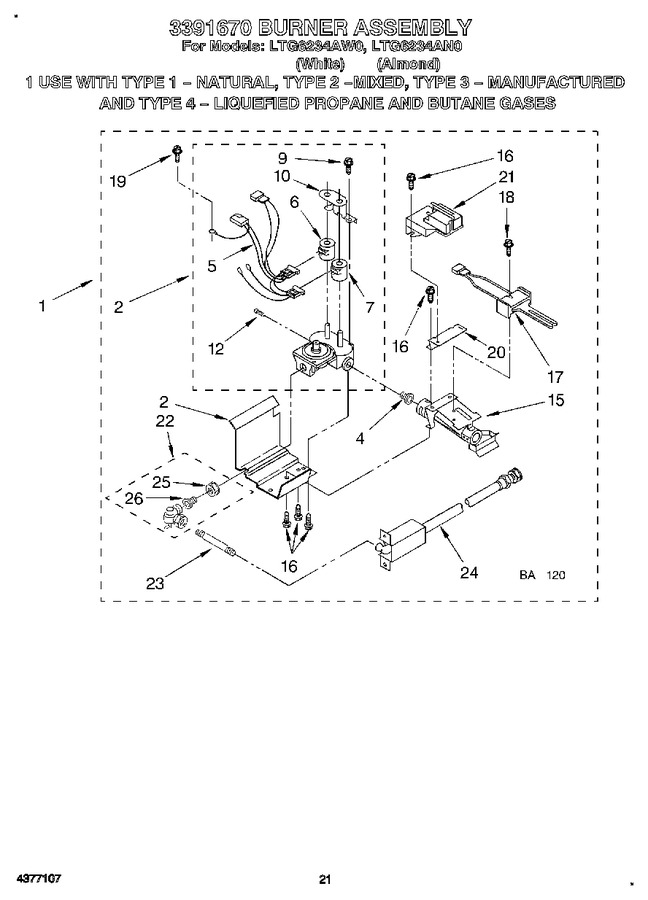

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3391670 | Burner Assembly 60 Hz. |
|
- | |||||
| 2 | 3391699 | Base, Burner |
|
- | |||||
| 3 | 279889 | Valve, 60 Hz. (Replaces: 694499) |
|
$ 200.94 | |||||
| 4 | WP347744 | Orifice (l.p. Gas) (Replaces: 347744) |
|
$ 72.54 | |||||
| 4 | WP234822 | Orifice (natural Gas) (Replaces: 234822) |
|
$ 25.96 | |||||
| 5 | WP3401849 | Harness (Replaces: 697807) |
|
$ 100.30 | |||||
| 6 | 279834 | Coil, 60 Hz. (split) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 7 | 279834 | Coil, 60 Hz. (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 9 | 694421 | Screw, 8-32 |
|
- | |||||
| 10 | 694538 | Bracket, Shunt |
|
$ 72.05 | |||||
| 12 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 15 | 8578392 | Burner (Replaces: 3392268) |
|
- | |||||
| 16 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 697775) |
|
Immediately | $ 7.07 | ||||
| 17 | 279311 | (alt.) (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 17 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 18 | WPW10366705 | Screw And Washer 8-32 X 1 (Replaces: 3387056) |
|
$ 6.75 | |||||
| 19 | WP3390631 | Screw, 10-16 X 1/4 (Replaces: 342202) |
|
$ 7.04 | |||||
| 20 | 697409 | Bracket, Sensor |
|
- | |||||
| 21 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 22 | 697441 | Valve, Shutoff |
|
- | |||||
| 23 | W10110398 | Nipple, Short (Replaces: 3391845) |
|
- | |||||
| 24 | 3391118 | Supply Line (gas) |
|
- | |||||
| 25 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 26 | 279243 | Conversion Kit Type 1 (natural) To Type 3 (manufactured) |
|
- | |||||
| 26 | 3392235A | Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g. (Replaces: 3392235) |
|
Immediately | $ 70.11 | ||||
| 26 | 3393767 | Pipe (Replaces: 233077) |
|
$ 123.97 |
