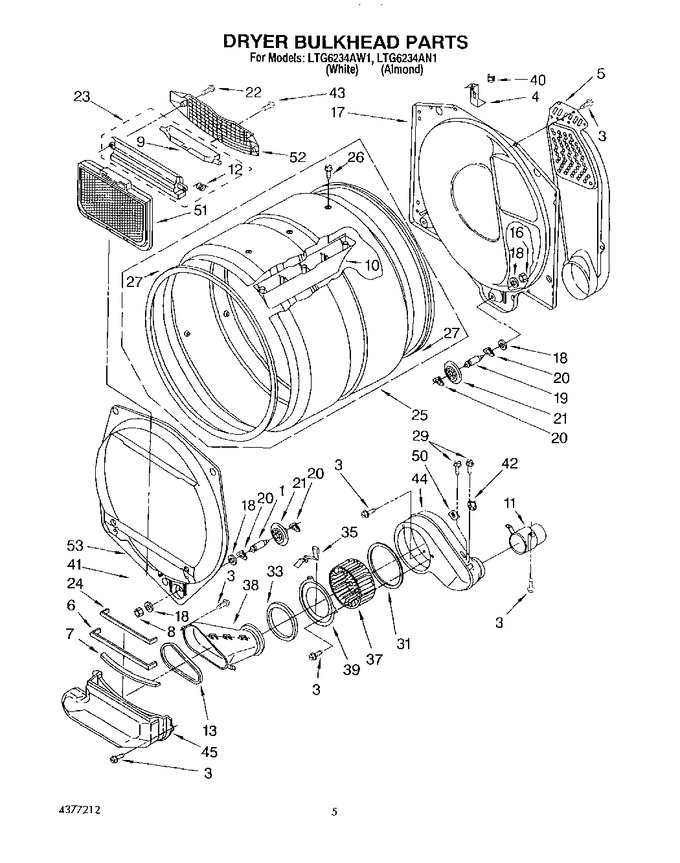

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Roller (Replaces: 3387460) |
|
Immediately | $ 55.99 | ||||
| 3 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | 3392226 | Clip, Thermostat |
|
$ 12.84 | |||||
| 5 | W11727962 | Air Duct Assembly (Replaces: 3392157) |
|
$ 173.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.17 | ||||
| 7 | WP3391906 | Seal, Lint Duct (Replaces: 3391906) |
|
$ 7.73 | |||||
| 8 | WP3359452 | Nut (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 9 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 183.35 | ||||
| 10 | 279982 | Baffle, Drum (3) (Replaces: 3389449) |
|
$ 212.75 | |||||
| 11 | 279823 | Pipe, Exhaust (Replaces: 3390459) |
|
$ 136.75 | |||||
| 12 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 76.13 | |||||
| 13 | WP697770 | Seal, Transition Duct To Lint Duct (Replaces: 3391685) |
|
Immediately | $ 7.09 | ||||
| 16 | 3387709 | Nut, Hex (2) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 315.10 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 12.63 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3387707) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | 349241T | Support, Roller (Replaces: 3397588) |
|
Immediately | $ 26.58 | ||||
| 22 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 23 | W11129408 | Housing, Outlet Incandescent (Replaces: 3394985) |
|
$ 47.95 | |||||
| 24 | WP697813 | Seal, Drum Front To Lint Duct (Replaces: 697814) |
|
Immediately | $ 7.17 | ||||
| 25 | W10518375 | Assembly, Drum (Replaces: 3389448) |
|
$ 401.47 | |||||
| 26 | 697777 | Screw, 11-16 X 7/8 (6) |
|
- | |||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (2) (Replaces: 3390646) |
|
$ 6.75 | |||||
| 31 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 33 | WP8566209 | Seal, Transition Duct (Replaces: 3391293) |
|
$ 49.91 | |||||
| 35 | 3390935 | Clip, Duct Locator |
|
$ 11.48 | |||||
| 37 | WP697772 | Wheel, Blower Harness (3) (Replaces: 697772) |
|
Immediately | $ 53.16 | ||||
| 38 | 279704 | Duct, Transition (includes Illus. No.33) (Replaces: 3389445) |
|
$ 160.18 | |||||
| 39 | 279780 | Plate, Blower (Replaces: 697366) |
|
$ 83.66 | |||||
| 40 | W11568973 | Fixed, Thermostat (205~f) (Replaces: 3388697) |
|
$ 15.90 | |||||
| 41 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.66 | ||||
| 42 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 32.31 | ||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 44 | WP8544363 | Housing, Blower (Replaces: 697363) |
|
$ 137.37 | |||||
| 45 | 279700 | Lint Duct Assembly (includes Illus. No. 7 & 13) (Replaces: 3388909) |
|
$ 163.06 | |||||
| 50 | WP3403607 | Limiter, Thermal (Replaces: 3391927) |
|
Immediately | $ 40.22 | ||||
| 51 | WP3389644 | Screen, Lint (Replaces: 3389644) |
|
Immediately | $ 82.04 | ||||
| 52 | 697767 | Grille, Outlet |
|
- | |||||
| 53 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 |
