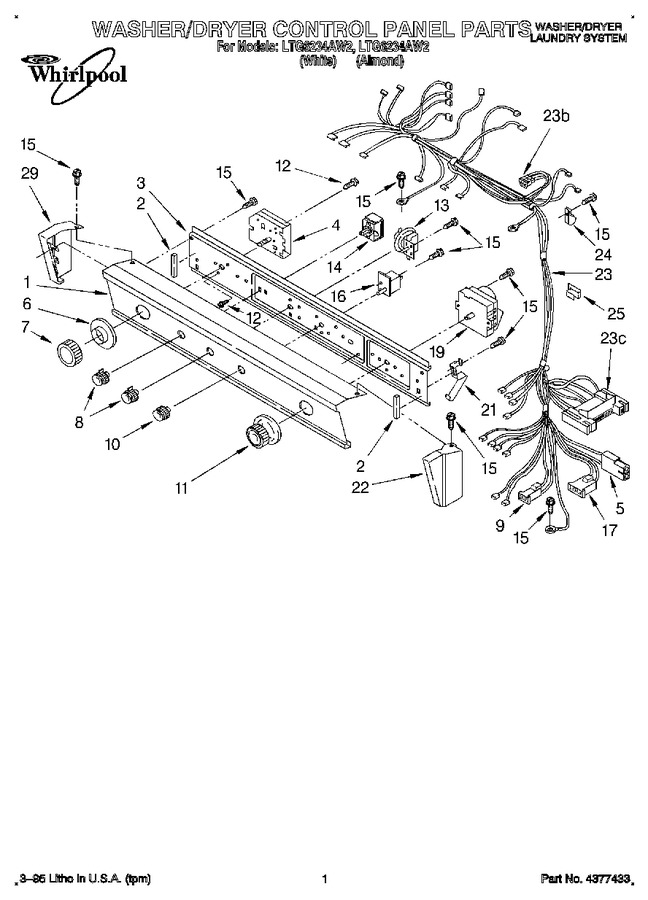

01 - Washer/dryer Control Panel


02 - Dryer Front Panel And Door


03 - Dryer Cabinet And Motor


04 - Dryer Bulkhead


05 - Dryer Support And Washer Harness


06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Agitator, Basket And Tub


11 - Gearcase


12 - Brake And Drive Tube


13 - Washer Water System


14 - Miscellaneous, Lit/optional


15 - 3401795 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3396683		Panel, Control (white)		Appelez-nous	-
1	3396684		Panel, Control (almond)		Appelez-nous	-
2	3390688		Spacer- Foam Pad (2)				$ 8.13
3	3390689		Bracket, Control (includes Illus. 2)		Appelez-nous	-
4	285938		Timer, Washer   (Replaces: 3946439)			Immediately	$ 214.29
5	717252		Receptacle, 2 Way		Appelez-nous	-
6	3403097		Skirt, Timer Knob (washer) (white)		Appelez-nous	-
6	3403098		Skirt, Timer Knob (washer) (almond)		Appelez-nous	-
7	WP3364293		Knob, Timer (washer) (almond)   (Replaces: 3358420)			Immediately	$ 53.51
7	WP3364293		Knob, Timer (washer) (white)   (Replaces: 3358417)			Immediately	$ 53.51
8	3950760		Knob, Control (2) (almond)   (Replaces: 3358436)		Appelez-nous	-
8	WP3957796		Knob, Control (2) (white)   (Replaces: 3358435)			Immediately	$ 49.35
9	3399964		Connector, 2-position (gas Valve)		Appelez-nous	-
10	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3396164)				$ 45.36
10	WP3957800		Knob, Push To Start (white)   (Replaces: 3396161)				$ 45.36
11	WP3957750		Knob, Timer (dryer) (almond)   (Replaces: 3396151)			Immediately	$ 53.04
11	WP3957750		Knob, Timer (dryer) (white)   (Replaces: 3396150)			Immediately	$ 53.04
12	WP356418		Screw   (Replaces: 96435)				$ 7.13
13	3360910		Switch, Pressure		Appelez-nous	-
14	3348352		Switch, Temperature		Appelez-nous	-
15	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.04
16	660936		Switch, Push-to-start		Appelez-nous	-
17	3399963		Connector, 3-position (gas Valve)		Appelez-nous	-
19	WP3976569		Timer, Dryer   (Replaces: 3393934)			Immediately	$ 301.94
21	3389453		Bracket, Hinge (2)				$ 78.06
22	3389456		End Cap-right Hand (white)				$ 40.11
22	3389457		End Cap-right Hand (almond)		Appelez-nous	-
23	3398983		Harness - Dryer		Appelez-nous	-
24	7111P002-60		Clamp, Harness   (Replaces: 3390604)		Appelez-nous	-
25	W10134185		Clip, Harness (2)   (Replaces: 3390422)		Appelez-nous	-
29	3389465		End Cap (lh) (almond)		Appelez-nous	-
29	3389464		End Cap-left Hand (white)				$ 26.75
23B	WP62889		Receptacle, Power (washer)   (Replaces: 62889)				$ 6.88
23C	3395683		Connector (motor-dryer)			Immediately	$ 46.67
