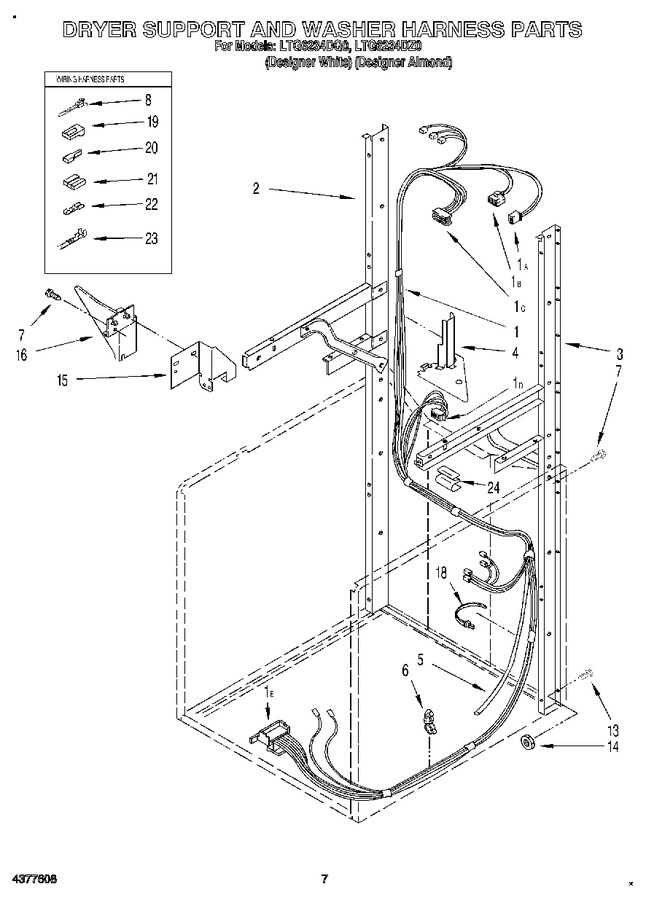

05 - Dryer Support And Washer Harness


06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Agitator, Basket And Tub


11 - Gearcase


12 - Brake And Drive Tube


13 - Washer Water System


14 - Miscellaneous, Lit/optional


15 - 3401795 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3396692		Harness - Washer		Appelez-nous	-
2	3388851		Channel Assembly (left Hand Side)				$ 288.73
3	3388850		Channel Assembly (right Hand Side)				$ 289.31
4	3390609		Shield, Harness		Appelez-nous	-
5	W10834213		Hose, Pressure Switch   (Replaces: 3350124)			Immediately	$ 28.51
6	3390496		Clip, Harness		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
8	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 28.66
13	9415810		Bolt, 5/16-18 X 1/2 (4)		Appelez-nous	-
14	3393930		Nut, Hex (4)		Appelez-nous	-
15	3392232		Shield, Front		Appelez-nous	-
16	3390336		Shield, Thermostat		Appelez-nous	-
18	3391249		Clip, Harness (2)		Appelez-nous	-
19	358736		Insulator		Appelez-nous	-
20	WP285432		Terminal, Female   (Replaces: 358763)				$ 6.99
21	374230		Block, Terminal		Appelez-nous	-
22	352088		Terminal, Female				$ 5.83
23	94613		Terminal, (male)		Appelez-nous	-
23	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
24	63523		Protector, Harness				$ 169.95
1A	3350130		Plug, 3 Way (uses Terminal 94614)				$ 11.72
1B	3347243		Connector, 5 Way (uses Terminal 352088)		Appelez-nous	-
1C	W10876590		Block, Disconnect - Timer (uses Terminal 352088)   (Replaces: 352089)				$ 11.48
1D	3350211		Receptacle, 3 Way (uses Terminal 94614)		Appelez-nous	-
1E	WP62505		Block, Disconnect (uses Terminal 352088)   (Replaces: 62505)				$ 21.35
