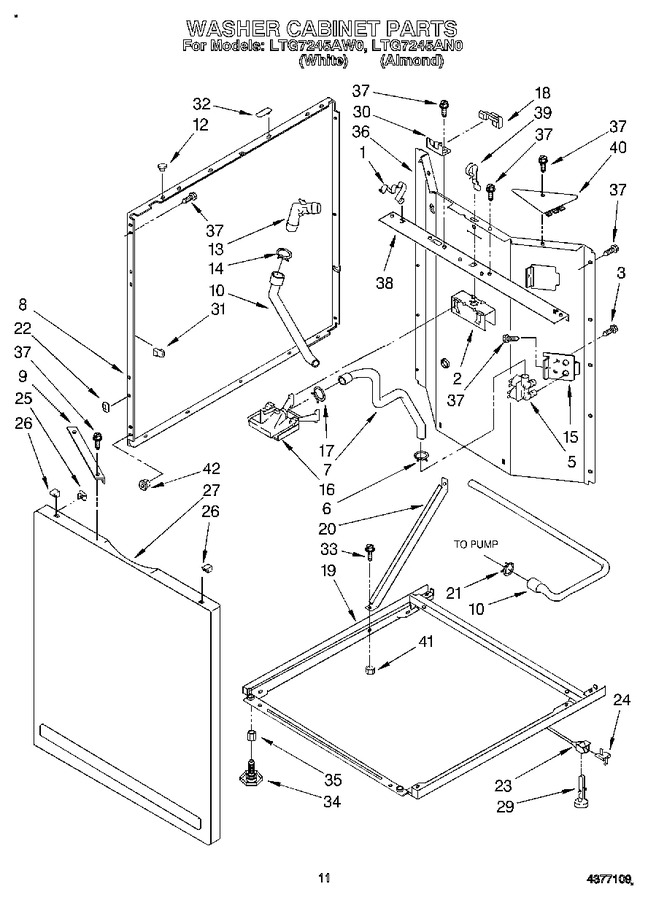

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3349770 | Clip, Spring Top (2) |
|
$ 12.85 | |||||
| 2 | 3349767 | Bracket, Vacuum (Replaces: 3349768) |
|
$ 17.62 | |||||
| 3 | WP3390631 | Screw, Mixing Valve Mounting (2) (10-16 X 3/8) (Replaces: 62863) |
|
$ 7.04 | |||||
| 5 | 285805 | Valve, Water Mixing (Replaces: 3349451) |
|
Immediately | $ 49.57 | ||||
| 6 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 7.56 | ||||
| 7 | 3352236 | Hose, Water Inlet (vacuum Break To Mixing Valve) |
|
$ 26.98 | |||||
| 8 | WP3349455 | Panel, Side (2) (same Panel Used On Left And Right Side) (white) (Replaces: 3349455) |
|
$ 298.28 | |||||
| 8 | 3349456 | Panel, Side (2) (same Panel Used On Left And Right Side) (almond) |
|
- | |||||
| 9 | 3350744 | Brace, Front Panel (Replaces: 3350745) |
|
- | |||||
| 10 | 3353841 | Hose, Drain |
|
$ 30.08 | |||||
| 12 | WP660975 | (alt.) (Replaces: 694010) |
|
$ 6.79 | |||||
| 12 | WP660975 | Plug, Top To Cabinet (2) (Replaces: 660975) |
|
$ 6.79 | |||||
| 12 | WP660975 | (alt.) (Replaces: 689587) |
|
$ 6.79 | |||||
| 13 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 63.54 | |||||
| 14 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 15 | 3349673 | Bracket, Valve |
|
$ 14.05 | |||||
| 16 | WP3360977 | Thermister, Inlet (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 17 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 18 | 3350145 | Shield, Lid Switch |
|
$ 11.68 | |||||
| 19 | WP3402724 | Base, Cabinet (Replaces: 3349323) |
|
$ 213.67 | |||||
| 20 | 3388857 | Bracket, Base |
|
$ 71.28 | |||||
| 21 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 10.38 | |||||
| 22 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 23 | WP3349311 | Link, Leveling (Replaces: 3349310) |
|
$ 89.48 | |||||
| 24 | WP359364 | Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
Immediately | $ 7.06 | ||||
| 25 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 26 | WP345670 | Lock, Top (2) (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 27 | 3349500 | Panel, Front (almond) |
|
- | |||||
| 27 | WP3349499 | Panel, Front (white) (Replaces: 3349499) |
|
$ 307.41 | |||||
| 29 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 30 | 3350144 | Bracket, Lid Switch |
|
$ 52.08 | |||||
| 31 | 694398 | Pad, Extruded |
|
- | |||||
| 32 | 352292 | Nut, Push-in (2) |
|
$ 11.43 | |||||
| 33 | 9415810 | Screw, 5/16-18 X 1/2 (2) |
|
- | |||||
| 34 | WPW10001130 | Foot, Front (2) (Replaces: 389102) |
|
Immediately | $ 7.02 | ||||
| 35 | 124829 | Nut, Jam (2) |
|
- | |||||
| 36 | 8564987 | Panel, Rear (washer) (Replaces: 3349493) |
|
$ 297.05 | |||||
| 37 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 38 | 3349697 | Rail, Back Top |
|
- | |||||
| 39 | 3350135 | Spring, Lever Bracket |
|
$ 11.85 | |||||
| 40 | 3390608 | Shield, Corner (right Rear) |
|
$ 11.63 | |||||
| 41 | 3393930 | Nut, Hex (2) |
|
- | |||||
| 42 | 352292 | Nut, Push-in (2) |
|
$ 11.43 |
