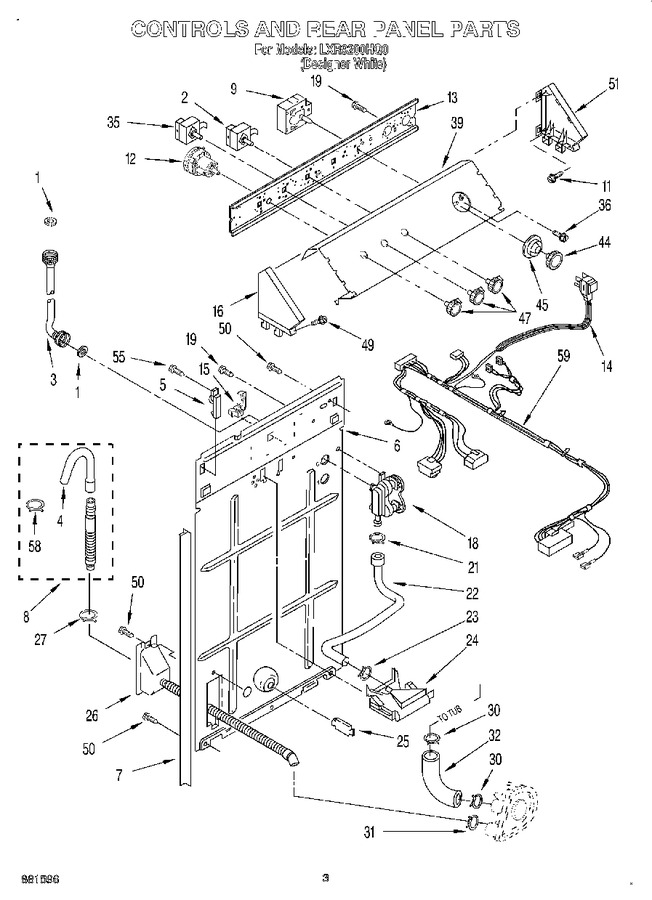

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 2 | WPW10168257 | Switch, Cycle Modifier (Replaces: 3949180) |
|
$ 120.00 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949368) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949369) |
|
Immediately | $ 21.68 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 9 | WP3949208 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3949208) |
|
$ 337.52 | |||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 12 | W10335056 | Switch, Water Level (Replaces: 3366846) |
|
Immediately | $ 82.66 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 104.57 | |||||
| 14 | W10820044 | Cord, Power (power Cord Only, Without Harness) (Replaces: 3948063) |
|
$ 128.46 | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3358528 | Cap, End (l.h.) |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | (alt.) (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | (alt.) (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 67.75 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Hose-corrugated Assy. (Replaces: 3361805) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP285655 | (alt.) (Replaces: 370447) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | (alt.) (Replaces: 353097) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | (alt.) (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3950340) |
|
Immediately | $ 24.01 | ||||
| 35 | 3949184 | Switch, Water Temperature |
|
- | |||||
| 36 | W10915367 | Screw, Timer Mounting (8-18 X 5/16) (Replaces: 3400808) |
|
- | |||||
| 39 | 3953163 | Panel, Console |
|
- | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 3951026) |
|
Immediately | $ 44.97 | ||||
| 45 | WP3957841 | Dial, Timer (Replaces: 3950762) |
|
$ 40.82 | |||||
| 47 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 49.35 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 3358513 | Cap, End (r.h.) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 6.80 | |||||
| 59 | 3952571 | Wiring, Harness (for Detail See Parts Page) Also See Clips. |
|
- |
