SELECT A DIAGRAM

01 - Top & Cabinet

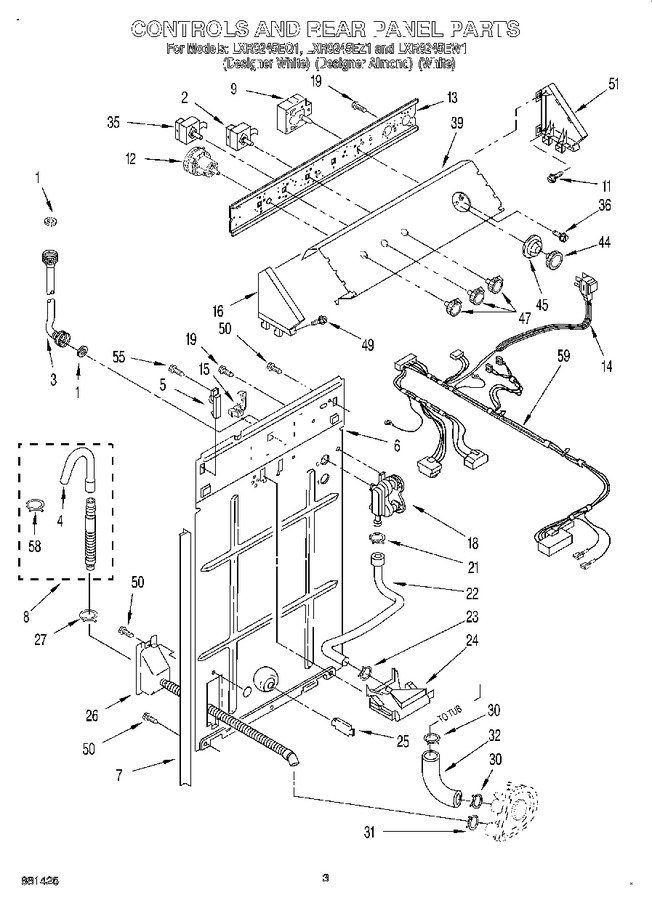

02 - Controls & Rear Panel


03 - Agitator, Basket & Tub


04 - Brake, Clutch, Gearcase, Motor & Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake & Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	WPW10168257		Switch, Cycle Modifier   (Replaces: 3949180)				$ 120.00
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949368)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949369)			Immediately	$ 21.68
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
9	WP3949208		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3949208)				$ 337.52
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 82.66
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
14	3949248		Cord, Power (power Cord Only, Without Harness)		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	3358528		Cap, End (l.h.) (for Designer White Model)		Appelez-nous	-
16	3358531		Cap, End (l.h.) (for White Model)		Appelez-nous	-
16	3358529		Cap, End (l.h.) (for Designer Almond Model)		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3360392)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Hose-corrugated Assy.   (Replaces: 3361805)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	3949184		Switch, Water Temperature		Appelez-nous	-
36	W10915367		Screw, Timer Mounting (8-18 X 5/16)   (Replaces: 3400808)		Appelez-nous	-
39	3948271		Panel, Console (for Designer White Model)		Appelez-nous	-
39	3948273		Panel, Console (for White Model)		Appelez-nous	-
39	3948272		Panel, Console (for Designer Almond Model)		Appelez-nous	-
44	W10807860		Knob, Timer (for Designer White Model)   (Replaces: 3948580)			Immediately	$ 44.97
44	WP3957823		Knob, Timer (for White Model)   (Replaces: 3948579)				$ 46.47
44	WP3957823		Knob, Timer (for Designer Almond Model)   (Replaces: 3948582)				$ 46.47
45	3948588		Dial, Timer (for Designer Almond Model)		Appelez-nous	-
45	3948586		Dial, Timer (for White Model)		Appelez-nous	-
45	WP3957841		Dial, Timer (for Designer White Model)   (Replaces: 3948587)				$ 40.82
47	WP8538957		Knob, Control (for White Model)   (Replaces: 3950757)				$ 50.17
47	WP3957796		Knob, Control (for Designer White Model)   (Replaces: 3950759)			Immediately	$ 49.35
47	3950760		Knob, Control (for Designer Almond Model)		Appelez-nous	-
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358513		Cap, End (r.h.) (for Designer White Model)		Appelez-nous	-
51	3358516		Cap , End (r.h.) (for White Model)		Appelez-nous	-
51	3358514		Cap , End (r.h.) (for Designer Almond Model)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 6.80
59	3950998		Wiring, Harness (includes Power Cord) (for Detail See Wiring Harness Parts Page) Also See Clips.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
