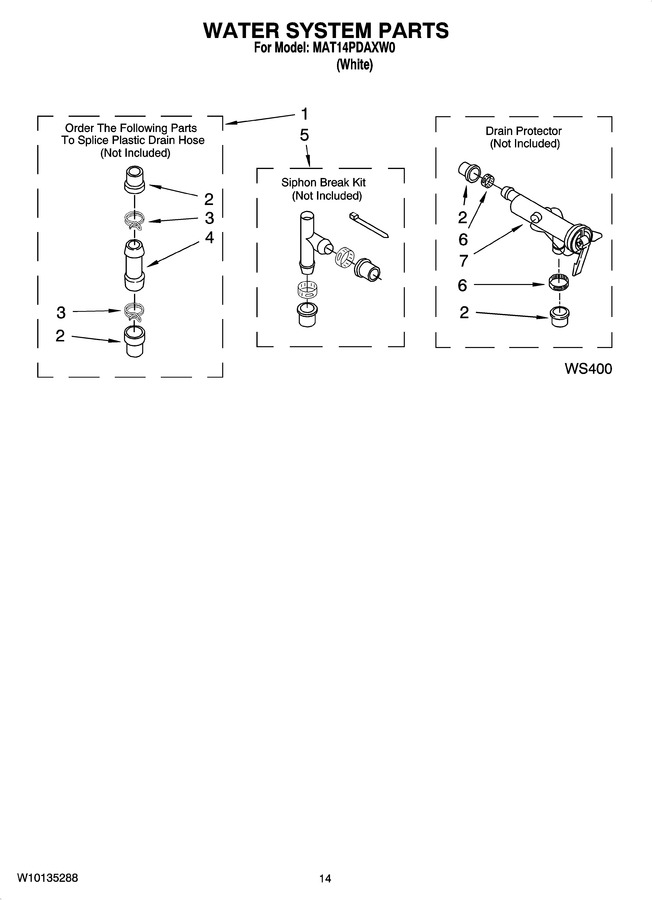

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285442		Connector Kit, Plastic Drain Hose				$ 84.62
2	285321		Sleeve Kit, (contains 2 Sleeves)				$ 75.52
3	WP285655		Clamp, Hose   (Replaces: 370447)			Immediately	$ 7.55
4	WP16272		Connector Straight   (Replaces: 16272)				$ 7.04
5	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 119.93
6	WP285655		Clamp, Hose   (Replaces: 65349)			Immediately	$ 7.55
7	367031		Drain Protector (not Included)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	389236		Lubricant, Agitator Spline		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86

    View Diagram in Separate Window       Print Part List
