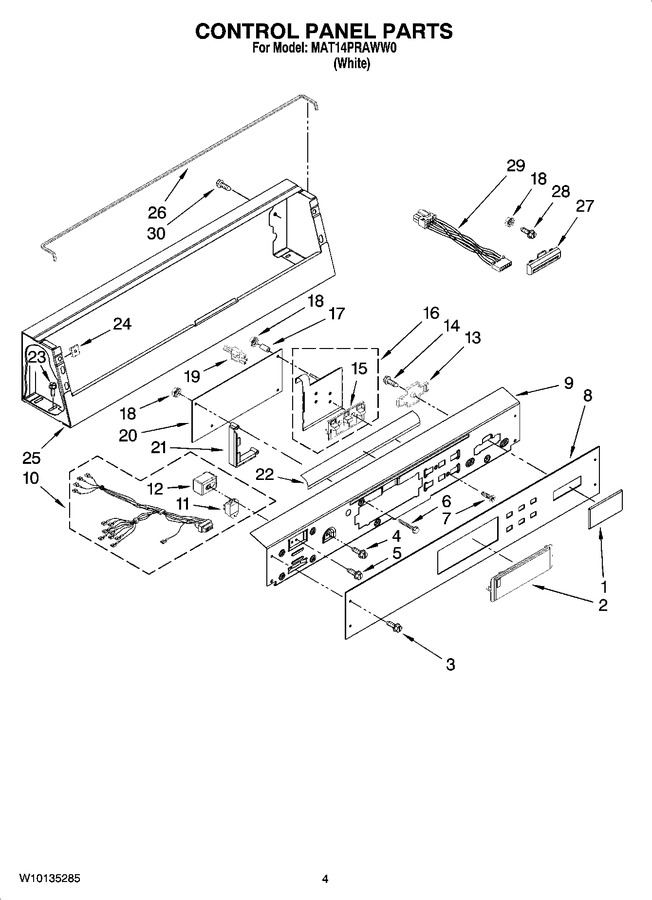

02 - Control Panel Parts


03 - Rear Panel Parts


04 - Agitator, Basket And Tub Parts


05 - Brake, Clutch, Gearcase, Motor And Pump Parts


06 - Machine Base Parts


07 - Wiring Harness Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts


10 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
2	WPW10131114		Cover, Display   (Replaces: W10131114)				$ 42.79
3	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
4	W10142650		Screw, 6-32 X 1/2				$ 12.03
5	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 9.79
6	W11117300		Screw, 6-32 X 1.00   (Replaces: W10137322)		Appelez-nous	-
7	W10756178		Screw, 6-20 X 1/2   (Replaces: W10140652)				$ 5.39
8	W10135335		Facia / Overlay		Appelez-nous	-
9	W10124211		Bracket, Control		Appelez-nous	-
10	W10153453		Harness, Console & Relays		Appelez-nous	-
11	W10133335		Relay, Motor				$ 40.14
12	W10133279		Relay, Reversing				$ 44.38
13	W11775266		Retainer, Card Reader Cover   (Replaces: W10137770)		Appelez-nous	-
14	3400618		Screw, 6-19 X 3/8				$ 58.23
15	WPW10424308		Push Button (2)   (Replaces: W10131113)			Immediately	$ 18.38
16	WPW10135389		Push Button & Switch Assembly   (Replaces: W10135389)				$ 125.66
17	W11117166		Spacer   (Replaces: W10133514)		Appelez-nous	-
18	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 7.91
19	W11129439		Jumper, Service Vault Switch   (Replaces: W10133282)				$ 15.14
20	W10130701		Control Board				$ 242.37
21	W10161568		Shield, Probing		Appelez-nous	-
22	W10133515		Deflector		Appelez-nous	-
23	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.04
24	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 6.94
25	W10207168		Console   (Replaces: W10137300)		Appelez-nous	-
26	WP8318396A		Foam Seal   (Replaces: 8318396)				$ 34.04
27	WPW10131115		Bezel   (Replaces: W10131115)				$ 7.63
28	WPW10143462		Screw, 6-32 X 9/16   (Replaces: W10143462)				$ 5.40
29	W10858740		Harness, Card Reader   (Replaces: W10133304)				$ 21.56
30	WP488488		Screw, 8-18 X 1/2   (Replaces: 489290)				$ 6.91
