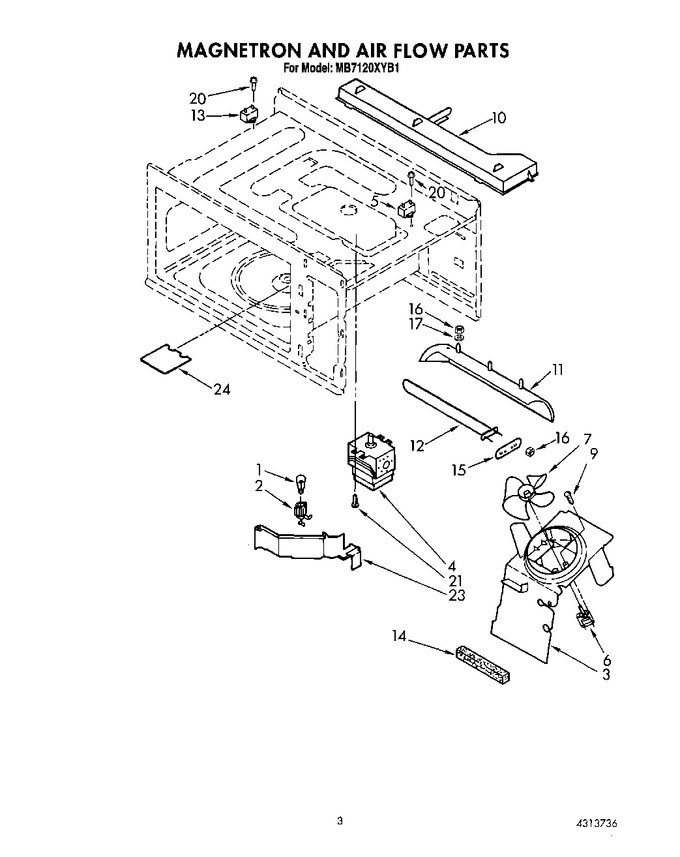

03 - Magnetron And Air Flow


04 - Cabinet


05 - Door And Latch


06 - Control Panel, Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313608		Lamp, Oven		Appelez-nous	-
2	4313607		Socket, Lamp		Appelez-nous	-
3	4365510		Duct, Fan		Appelez-nous	-
4	4365503		Magnetron		Appelez-nous	-
5	4313613		Thermostat, Magnetron		Appelez-nous	-
6	4313672		Motor, Fan		Appelez-nous	-
7	4174669		Blade, Fan		Appelez-nous	-
9	4313701		Screw, 4 X 12 Mm		Appelez-nous	-
10	4365509		Duct, Cooling		Appelez-nous	-
11	4365511		Reflector, Heat		Appelez-nous	-
12	4365505		Element, Browning		Appelez-nous	-
13	4313674		Fuse, Cavity Temperature		Appelez-nous	-
14	4174824		Cushion, Motor		Appelez-nous	-
15	4365512		Bracket, Element		Appelez-nous	-
16	4174843		Nut, Reflector Mounting		Appelez-nous	-
17	4174786		Washer, Element Mounting		Appelez-nous	-
20	4174826		Screw		Appelez-nous	-
21	4365500		Screw		Appelez-nous	-
23	4313633		Duct, Magnetron		Appelez-nous	-
24	4313635		Cover, Wave Guide		Appelez-nous	-
