01 - Convection Oven


02 - Oven Interior


03 - Oven


04 - Base Plate


05 - Door And Latch


06 - Control Panel


07 - Wiring, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

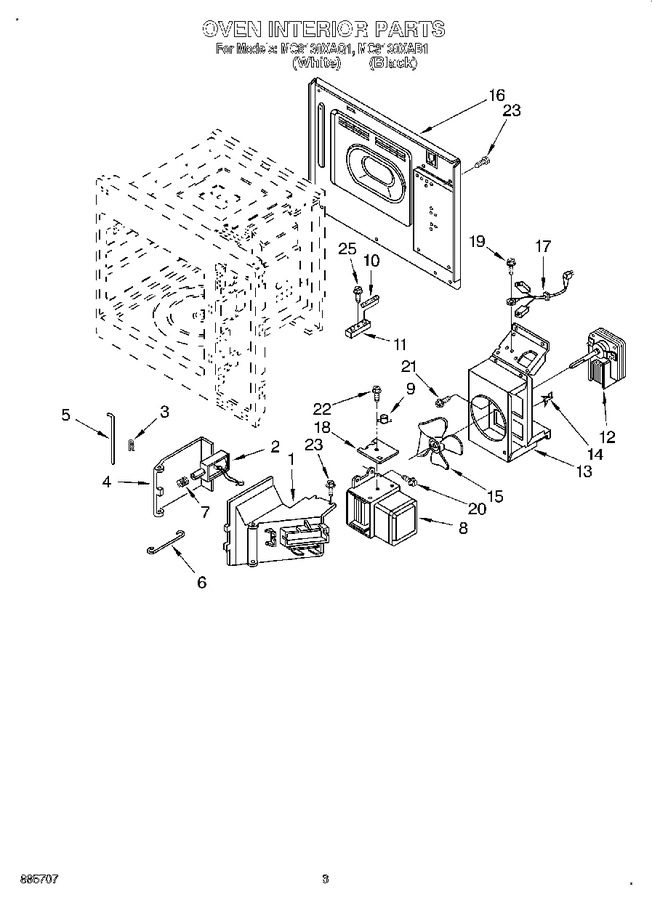

1	4358436		Air Duct		Appelez-nous	-
2	4359086		Solenoid		Appelez-nous	-
3	4358438		Clip		Appelez-nous	-
4	4358439		Bracket, Damper		Appelez-nous	-
5	4358440		Shaft		Appelez-nous	-
6	4358441		Connector, Damper		Appelez-nous	-
7	4358442		Spring, Solenoid		Appelez-nous	-
8	4358059		Magnatron		Appelez-nous	-
9	4358443		Thermostat, Magnatron		Appelez-nous	-
10	4358704		Fuse		Appelez-nous	-
11	4358785		Holder, Fuse		Appelez-nous	-
12	4358444		Motor, Fan		Appelez-nous	-
13	4358445		Bracket, Mount		Appelez-nous	-
14	4392027		Clip   (Replaces: 4358267)				$ 138.41
15	4358446		Fan Blade		Appelez-nous	-
16	4358447		Cover, Back		Appelez-nous	-
17	4158832		Cord, Power		Appelez-nous	-
18	4359087		Thermostat Bracket		Appelez-nous	-
19	4358448		Screw		Appelez-nous	-
20	WP3400094		Screw   (Replaces: 4158747)				$ 7.14
21	4344826		Screw   (Replaces: 4358449)				$ 14.31
22	4358450		Screw		Appelez-nous	-
23	4358192		Screw		Appelez-nous	-
25	4358451		Screw		Appelez-nous	-
