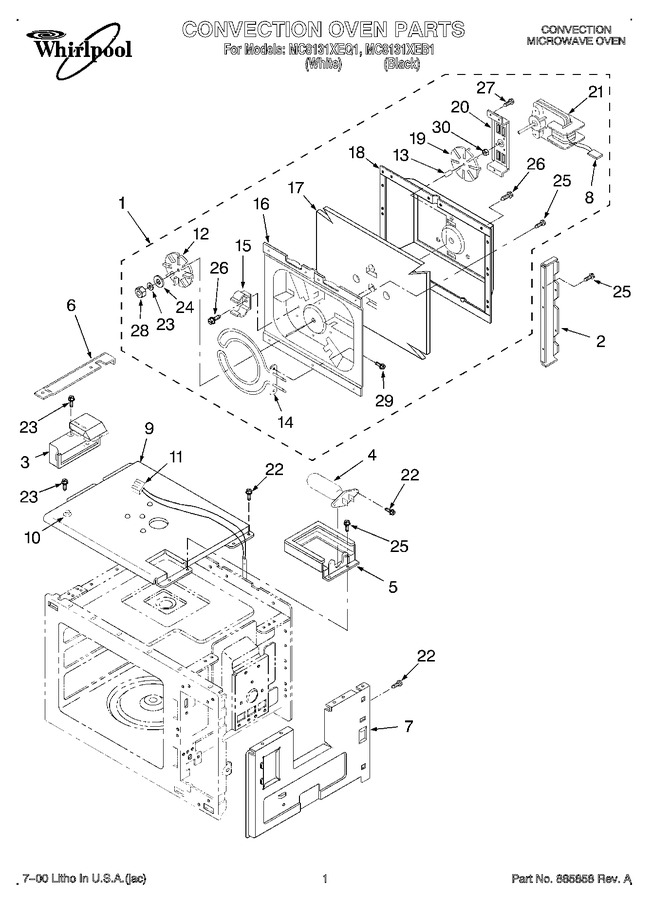

01 - Convection Oven
02 - Oven Interior
03 - Oven Cavity
04 - Base Plate
05 - Latch Board
06 - Control Panel
07 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359406 | Chamber Assembly |
|
- | |||||
| 2 | 4358454 | Bracket, Support |
|
- | |||||
| 3 | 4358455 | Air Tunnel |
|
- | |||||
| 4 | 4359636 | Lamp |
|
- | |||||
| 5 | 4358471 | Bracket, Lamp |
|
- | |||||
| 6 | 4358472 | Cover |
|
- | |||||
| 7 | 4358452 | Insulator |
|
- | |||||
| 8 | 4358453 | Motor Wire |
|
- | |||||
| 9 | 4358456 | Insulator |
|
- | |||||
| 10 | 4359637 | Thermostat |
|
- | |||||
| 11 | 4359407 | Thermistor |
|
- | |||||
| 12 | 4359408 | Fan |
|
- | |||||
| 13 | 4358460 | Bushing |
|
- | |||||
| 14 | 4358461 | Convection Element |
|
- | |||||
| 15 | 4358462 | Clip, Convection Element |
|
- | |||||
| 16 | 4358463 | Duct, Magnatron |
|
- | |||||
| 17 | 4358464 | Insulation |
|
- | |||||
| 18 | 4358465 | Insulation Shield, Back |
|
- | |||||
| 19 | 4358466 | Fan Blade |
|
- | |||||
| 20 | 4358467 | Bracket, Convection Motor |
|
- | |||||
| 21 | 4358468 | Convection Motor |
|
- | |||||
| 22 | 4358192 | Screw |
|
- | |||||
| 23 | 4358192 | Screw |
|
- | |||||
| 24 | 4358478 | Washer |
|
- | |||||
| 25 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 26 | WP3196557 | Screw (Replaces: 4358045) |
|
Immediately | $ 7.16 | ||||
| 27 | 4358473 | Screw |
|
- | |||||
| 28 | 4358476 | Nut |
|
- | |||||
| 29 | 4344826 | Screw (Replaces: 4358474) |
|
$ 14.31 | |||||
| 30 | 4358475 | Nut |
|
- |
