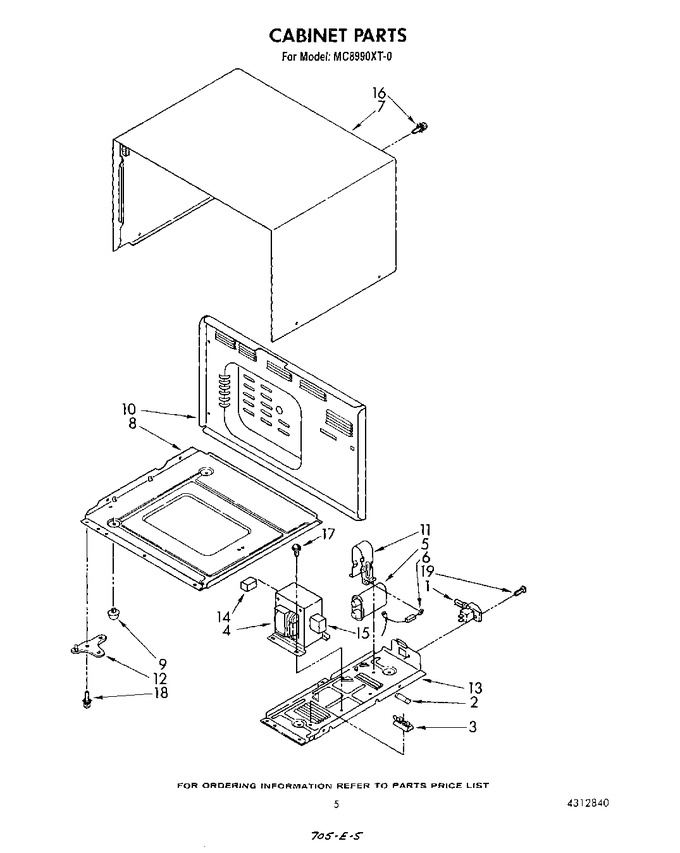

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312818 | Power Cord |
|
- | |||||
| 2 | 4312924 | Fuse, 20 Amp |
|
- | |||||
| 3 | 4312820 | Fuse Holder |
|
- | |||||
| 4 | 4312866 | Transformer |
|
- | |||||
| 5 | 4312831 | Capacitor |
|
- | |||||
| 6 | 4312867 | Rectifier |
|
- | |||||
| 7 | 4312838 | Outer Cabinet |
|
- | |||||
| 8 | 4312839 | Cabinet Base |
|
- | |||||
| 9 | 4312841 | Rubber Foot |
|
- | |||||
| 10 | 4312842 | Cabinet Rear |
|
- | |||||
| 11 | 4312844 | Capacitor Holder |
|
- | |||||
| 12 | 4312845 | Lower Hinge |
|
- | |||||
| 13 | 4312843 | Extension, Cabinet Base |
|
- | |||||
| 14 | 4312846 | Block, Foam |
|
- | |||||
| 15 | 4312847 | Vibration Block |
|
- | |||||
| 16 | 4312913 | Screw (9) |
|
- | |||||
| 17 | 4312914 | Screw (2) |
|
- | |||||
| 18 | 4312915 | Screw (3) |
|
- | |||||
| 19 | 4312922 | Screw |
|
- |
