Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158767 Latch Board Appelez-nous -
3 4158078 Screw, 3 X 20mm Appelez-nous -
5 4158187 Screw Appelez-nous -
6 4158070 Rod, Release Appelez-nous -
7 4158745 Pin, Protector Appelez-nous -
8 4158740 Hinge Plate, Lower Appelez-nous -
9 WP3400094 Screw   (Replaces: 4158747) Special Order $ 7.14

10 4158080 Screw, 5 X 16mm Appelez-nous -
11 4158738 Lever Switch Appelez-nous -
12 4392027 Switch, Secondary   (Replaces: 4158773) Special Order $ 138.41

13 4158774 Door, Complete Appelez-nous -
14 4158739 Hinge Plate, Upper Appelez-nous -
15 4158086 Washer Appelez-nous -
16 4339331 Washer Appelez-nous -
17 4392027 Switch, Primary   (Replaces: 4158769) Special Order $ 138.41

18 4158117 Washer Appelez-nous -
19 4392027 Switch, Monitor   (Replaces: 4158771) Special Order $ 138.41


    View Diagram in Separate Window     Print Icon   Print Part List

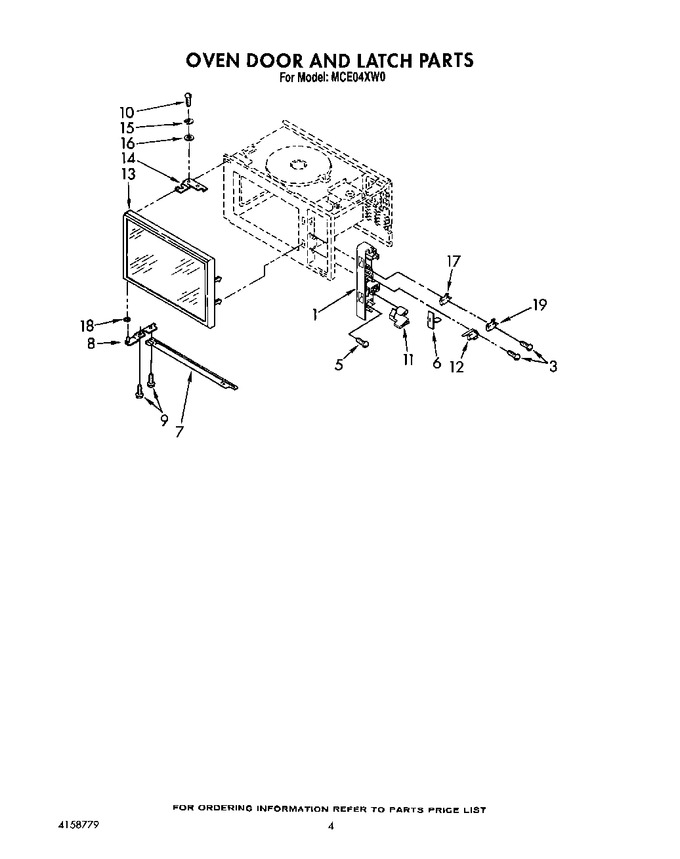

Diagram for MCE04XW0
