SELECT A DIAGRAM

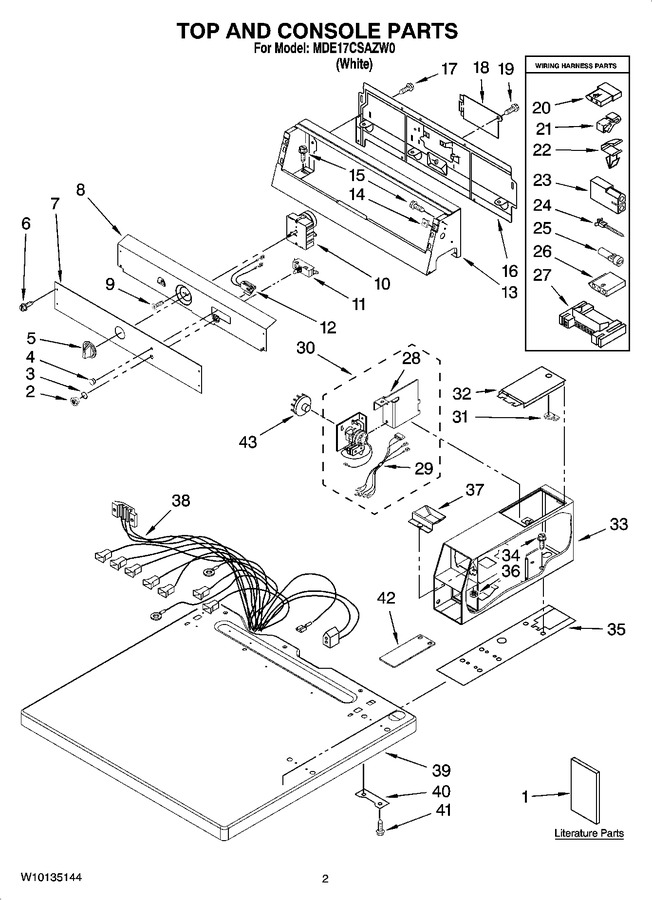

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163148		Wiring Diagram		Appelez-nous	-
1	W10135144		Repair Parts List		Appelez-nous	-
1	W10135134		Instructions Installation		Appelez-nous	-
2	W10146429		Nut, 8-32 X 3/8		Appelez-nous	-
3	WPW10139799		Washer   (Replaces: W10139799)				$ 8.32
4	WPW10133502		Lens, Pilot Light Amber   (Replaces: W10133502)				$ 11.58
5	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
6	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
7	W10135183		Facia / Overlay		Appelez-nous	-
8	W10124213		Bracket, Control		Appelez-nous	-
9	W10139100		Screw, 8-32 X 1/4				$ 11.15
10	WPW10327105		Switch, Cycle Selection   (Replaces: W10129712)				$ 145.49
11	WPW10149462		Switch, Push-to-start   (Replaces: W10149462)				$ 60.77
12	W10662107		Lamp-indicator   (Replaces: W10130072)				$ 23.30
13	W10231471		Console   (Replaces: W10137299)		Appelez-nous	-
14	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 6.94
15	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
16	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 256.84
17	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
18	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 115.52
19	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
20	717253		Receptacle (2-way)		Appelez-nous	-
21	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
22	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
25	351297		Plug, Harness		Appelez-nous	-
26	3936144		Connector (3-circuit)				$ 18.19
27	3395683		Housing Connector			Immediately	$ 46.67
28	W10154739		Bracket, Timer		Appelez-nous	-
29	W10177791		Harness, Timer		Appelez-nous	-
30	WPW10135259		Timer & Harness Assembly   (Replaces: W10135259)				$ 324.71
31	W11401086		Cam, Commercial Lock   (Replaces: W10145154)				$ 6.17
32	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
33	WPW10529172		Meter Case   (Replaces: W10136649)				$ 345.34
34	3353994		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
34	W11715721		Bolt, Meter Case Mounting (5/16-24 X 1.00)   (Replaces: 3349065)				$ 6.41
35	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
36	W10139060		Nut, 1/4-20		Appelez-nous	-
37	W10133509		Funnel, Coin				$ 74.49
38	W10164588		Harness, Main				$ 216.88
39	WPW10136707		Top   (Replaces: W10136707)				$ 320.56
40	3347825		Plate-mounting (2)		Appelez-nous	-
41	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
42	WPW10153513		Extension   (Replaces: W10153513)				$ 74.57
43	51-161-6		Timing Cam (cam - 6 Pin)   (Replaces: 343777)				$ 31.07
43	WP3387974		Timing Cam (cam - 3 Pin)   (Replaces: 3387974)				$ 7.49

    View Diagram in Separate Window       Print Part List
