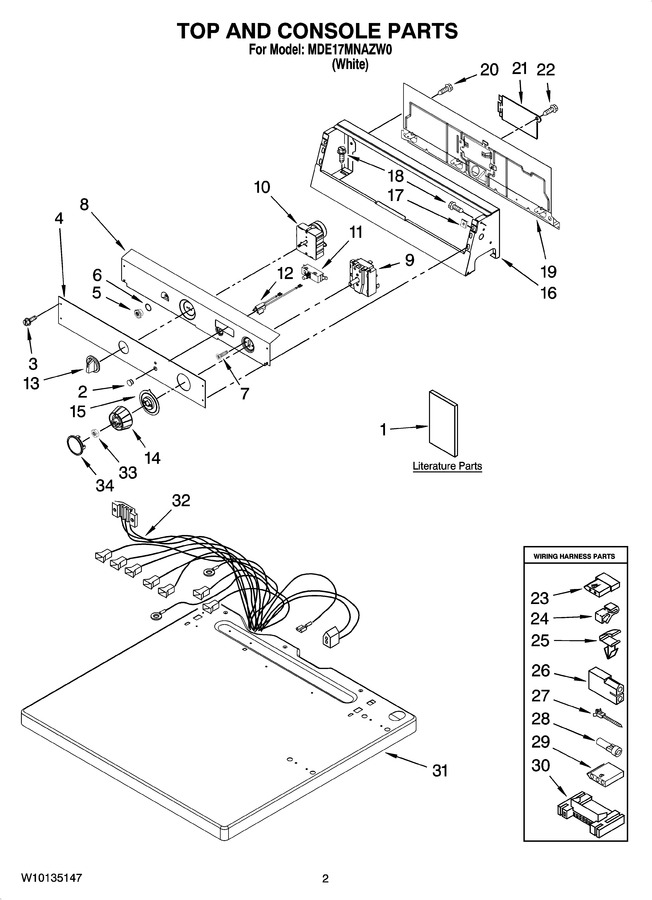

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10163156 | Wiring Diagram |
|
- | |||||
| 1 | W10135147 | Repair Parts List |
|
- | |||||
| 1 | W10135130 | Instructions Installation |
|
- | |||||
| 2 | WPW10133502 | Lens, Pilot Light Amber (Replaces: W10133502) |
|
$ 11.58 | |||||
| 3 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10131119) |
|
$ 6.26 | |||||
| 4 | W10135184 | Facia / Overlay |
|
$ 78.25 | |||||
| 5 | W10146429 | Nut, 8-32 X 3/8 |
|
- | |||||
| 6 | WPW10139799 | Washer (Replaces: W10139799) |
|
$ 8.32 | |||||
| 7 | W10139100 | Screw, 8-32 X 1/2 |
|
$ 11.15 | |||||
| 8 | W10124216 | Bracket, Control |
|
- | |||||
| 9 | WPW10157942 | Timer, Dryer (Replaces: W10157942) |
|
$ 300.75 | |||||
| 10 | WPW10327105 | Switch, Cycle Selection (Replaces: W10129712) |
|
$ 145.49 | |||||
| 11 | WPW10149462 | Switch, Push-to-start (Replaces: W10149462) |
|
$ 60.77 | |||||
| 12 | W10662107 | Lamp-indicator 120 V. (Replaces: W10130072) |
|
$ 23.30 | |||||
| 13 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 23.64 | ||||
| 14 | W11232017 | Knob, Control (Replaces: W10133505) |
|
$ 11.13 | |||||
| 15 | W10133506 | Skirt, Dial |
|
$ 17.06 | |||||
| 16 | W10207168 | Console (Replaces: W10137300) |
|
- | |||||
| 17 | WPW10131123 | Nut, 8 U-type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 18 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: W10139210) |
|
$ 6.75 | |||||
| 19 | 285909 | Panel, Rear (upper) (Replaces: 8317305) |
|
$ 224.07 | |||||
| 20 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 21 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 115.52 | |||||
| 22 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 23 | 717253 | Receptacle (2-way) |
|
- | |||||
| 24 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 9.75 | |||||
| 25 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 26 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 27 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 28 | 351297 | Plug, Harness |
|
- | |||||
| 29 | 3936144 | Connector (3-circuit) |
|
$ 18.19 | |||||
| 30 | 3395683 | Housing Connector |
|
Immediately | $ 46.67 | ||||
| 31 | WPW10136704 | Top (Replaces: W10136704) |
|
$ 234.39 | |||||
| 32 | W10164627 | Harness, Main |
|
$ 181.47 | |||||
| 33 | W10155650 | Nut, 1/4-28 X 5/32 |
|
$ 12.03 | |||||
| 34 | WPW10133501 | Cap, Knob (Replaces: W10133501) |
|
$ 54.76 |
