SELECT A DIAGRAM

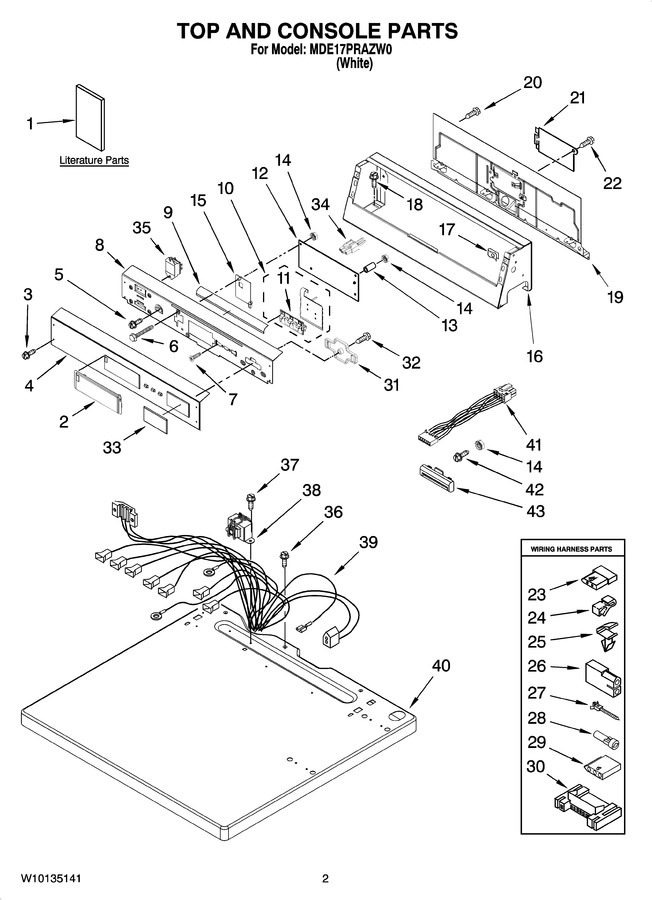

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135130		Instructions Installation		Appelez-nous	-
1	W10135141		Repair Parts List		Appelez-nous	-
1	W10135150		Tech Sheet		Appelez-nous	-
2	WPW10131114		Cover, Display   (Replaces: W10131114)				$ 42.79
3	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
4	W10135182		Facia / Overlay		Appelez-nous	-
5	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 9.79
6	W11117300		Screw, 6-32 X 1.00   (Replaces: W10137322)		Appelez-nous	-
7	W10756178		Screw, 6-20 X 1/2   (Replaces: W10140652)				$ 5.39
8	W10124215		Bracket, Control		Appelez-nous	-
9	W10133515		Deflector		Appelez-nous	-
10	WPW10135233		Push Button & Switch Assembly   (Replaces: W10135233)				$ 168.34
11	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 18.38
12	WPW10130081		Control Board   (Replaces: W10130081)				$ 277.17
13	W11117166		Spacer   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 7.91
15	W10161476		Shield, Probing				$ 70.65
16	W10207168		Console   (Replaces: W10137300)		Appelez-nous	-
17	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 6.94
18	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
19	285909		Panel, Rear (upper)   (Replaces: 8317305)				$ 224.07
20	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
21	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 115.52
22	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
23	717253		Receptacle (2-way)		Appelez-nous	-
24	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
25	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
26	717252		Receptacle, 2 Way		Appelez-nous	-
27	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
28	351297		Plug, Harness		Appelez-nous	-
29	3936144		Connector (3-circuit)				$ 18.19
30	3395683		Housing Connector			Immediately	$ 46.67
31	W11775266		Retainer, Card Reader Cover   (Replaces: W10137770)		Appelez-nous	-
32	3400618		Screw, 6-19 X 3/8				$ 58.23
33	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
34	W11129439		Jumper, Service Vault Switch   (Replaces: W10133282)				$ 15.14
35	W10133335		Relay, Motor				$ 40.14
36	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 12.65
37	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
38	WPW10131839		Transformer 120 To 22.5 Vac.   (Replaces: W10131839)			Immediately	$ 120.20
39	W10111009		Harness, Main				$ 260.62
40	WPW10136704		Top   (Replaces: W10136704)				$ 234.39
41	W10858740		Harness, Card Reader   (Replaces: W10133304)				$ 21.56
42	WPW10143462		Screw, 6-32 X 9/16   (Replaces: W10143462)				$ 5.40
43	WPW10131115		Bezel   (Replaces: W10131115)				$ 7.63

    View Diagram in Separate Window       Print Part List
