SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

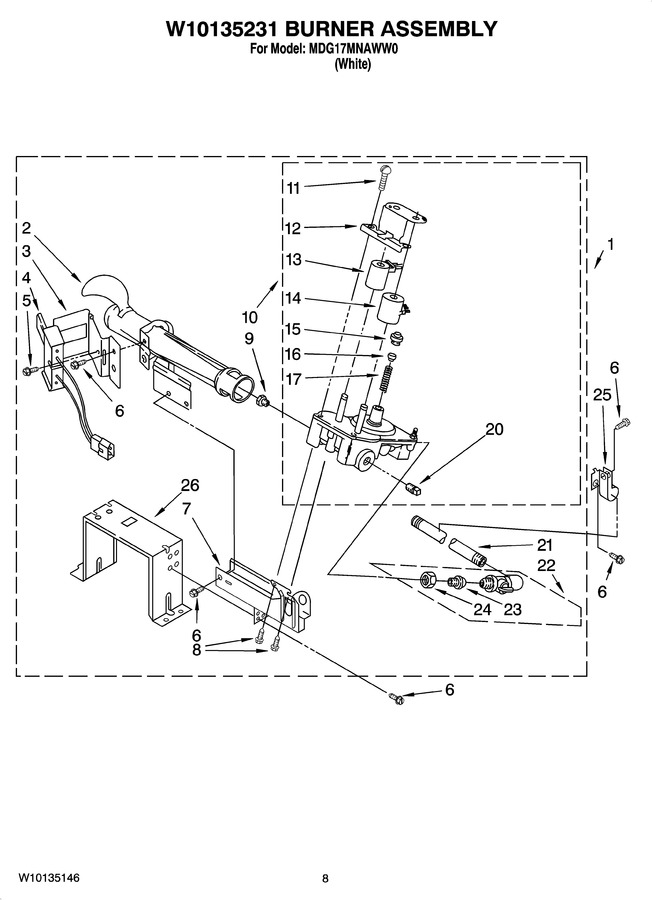

04 - W10135231 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly 60 Hz. (type 1, 2 & 3) (white Rodgers)   (Replaces: W10135231)				$ 226.06
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw, 10-16 X 1/2 (3)   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 2)   (Replaces: 234868)				$ 31.37
9	234870		Orifice, Burner (type 1)				$ 110.82
10	WPW10141728		Valve Gas 60 Hz. (complete)   (Replaces: W10141728)				$ 308.36
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	W10110395		Pipe, Gas Supply		Appelez-nous	-
22	697441		Valve & Union Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail				$ 123.97
24	233076		Nut, Compression				$ 43.19
25	3387561		Clamp, Pipe		Appelez-nous	-
26	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
	W10402145		Conversion Kit (type 1 And 2) To Type (4) L.p.g.   (Replaces: W10135245)				$ 97.89
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 10.58
	4392067		Kit, Dryer Repair			Immediately	$ 56.03
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
