SELECT A DIAGRAM

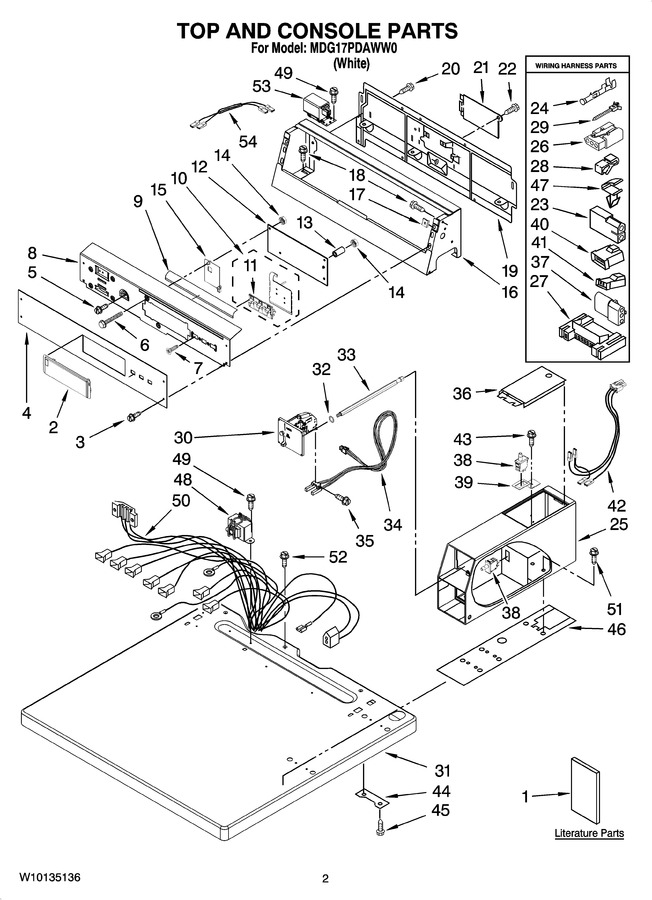

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10135231 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135134		Instructions Installation		Appelez-nous	-
1	W10135136		Repair Parts List		Appelez-nous	-
1	W10183571		Tech Sheet		Appelez-nous	-
2	WPW10131114		Cover, Display   (Replaces: W10131114)				$ 42.79
3	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
4	W10135181		Facia-overlay				$ 125.73
5	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 9.79
6	W11117300		Screw, 6-32 X 1.00   (Replaces: W10137322)		Appelez-nous	-
7	W10756178		Screw, 6-20 X 1/2   (Replaces: W10140652)				$ 5.39
8	W10124214		Bracket, Control		Appelez-nous	-
9	W10133515		Deflector Switch Assembly		Appelez-nous	-
10	WPW10135233		Push Button &   (Replaces: W10135233)				$ 168.34
11	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 18.38
12	WPW10130081		Control Board   (Replaces: W10130081)				$ 277.17
13	W11117166		Spacer   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 7.91
15	W10161476		Shield, Probing				$ 70.65
16	W10231471		Console   (Replaces: W10137299)		Appelez-nous	-
17	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 6.94
18	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
19	W10177313		Panel, Rear (upper)		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
21	W10819767		Cover, Terminal Box   (Replaces: 8317340)		Appelez-nous	-
22	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
25	WPW10529176		Meter Case   (Replaces: W10136645)				$ 273.48
26	717315		Receptacle, 4-way		Appelez-nous	-
27	3395683		Housing Connector			Immediately	$ 46.67
28	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
30	WPW10133242		Coin Drop Assy.   (Replaces: W10133242)				$ 126.51
31	WPW10136707		Top   (Replaces: W10136707)				$ 320.56
32	W11170663		Washer (2)   (Replaces: W10068270)				$ 3.89
33	WPW10137319		Hex-bar Bolt   (Replaces: W10137319)				$ 73.17
34	WPW10247389		Coin-optic Sensor Assembly   (Replaces: W10130178)			Immediately	$ 104.31
35	WP3395530		Screw, 6-20 X 1.00   (Replaces: W10142655)				$ 6.93
36	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
37	3936144		Connector (3-circuit)				$ 18.19
38	WPW10131838		Switch - Vault & Service Door   (Replaces: W10131838)				$ 21.52
39	W11204533		Bracket, Service Door   (Replaces: W10133508)		Appelez-nous	-
40	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 6.26
41	WP3403499		Connector   (Replaces: 3403499)				$ 5.16
42	W10847806		Harness Wire Sensor Switch   (Replaces: W10139456)				$ 102.42
43	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
44	3347825		Plate, Mounting		Appelez-nous	-
45	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
46	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
48	WPW10131839		Transformer 120 To 22.5 Vac.   (Replaces: W10131839)			Immediately	$ 120.20
49	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
50	W10130190		Harness, Main			Immediately	$ 281.21
51	W11715721		Screw, 5/16 - 24 X 1.00   (Replaces: 3349065)				$ 6.41
52	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 12.65
53	WPW10367632		Rfi-filter Cpl.   (Replaces: 8540229)				$ 110.00
54	W10175650		Jumper-line Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
